Application case of double spinner shot blasting machine used in automotive transmission system

Main Purchase Machine Model:

1.Double Spinner Hook Hanger Shot Blasting Machine: MHB2-1717P11-3F,QTY.:1 Set;

2.Single Spinner Hook Hanger Shot Blasting Machine:MHB1-1216P11-3F,QTY.:1 Set;


Application Range:

It is applied to shot blasting of precision castings such as carbon steel, stainless steel, alloy steel, special steel hardware fittings, vehicle parts, valve fittings and mechanical fittings.

Free Technical Consultation

The main features of this machine:


1.Shot blasting chamber body is made of 6mm manganese steel precision welding; the body with double wear-resistant manganese steel shield fastened by high wear-resistant nuts; Easy to repair and maintenance, greatly improving the maintenance. Machine body ensure 20 years use life.


2.Y type double rail input and output convey system, manual control loading and unloading, input and output convey(This way is safe)


3.The shot blasting chamber adopts compact and closed design, to ensure no steel shots splash.


4.Adopting Mayflay precision casting high performance shot blaster which is equipped with semi-automatic flow control valve to adjust the shot flow.


5.The steel shot recovery system is stable and reliable.


6.Dust collecting system uses MWDC-80 wet Venturi dust collector,fire safety, without any spare parts, use cost low, dust emissions is less than 30 mg/m3.


7.Electrical system adopts Siemens system, and human-machine interface usies 10 inches color touch control panel, 3D animation guidance prompt, powerful function.


8.All necessary labels on the machine are posted at distinct positions, such as safety tips, maintenance tips, operation standard, equipment status, customer service engineer card and service record sheet, etc.


9.All motors of the machine are driven by direct transmission, and the safety and maintenance performance are greatly improved.



Technology Data:


1.Double hooks shot blasting machine MHB2-1717P11-3F main technology data

Shot Blasting Room Entrance Size: W*H 2000*2000mm

Part size:W*H 1700*1700mm

Part max. weight:1500kg


Configuration contains

1 set shot blasting chamber,1 sets rail systems (2 sets hanger),1 set spiral pusher system,1 set elevator system,1 set separator system, 1 set maintenance platform, 3 sets steel shot semi-automatic flow valve, 3 sets CNC blast wheel, 1 set dust collector. system


2.Single hook shot blasting machine MHB1-1216P11-3Fmain technology data

Shot Blasting Room Entrance Size: W*H 1500*1900mm

Part size:W*H 1200*1600mm

Part max. weight:1000kg


Configuration contains

1 set shot blasting chamber,1 sets rail systems (2 sets hanger),1 set spiral pusher system,1 set elevator system,1 set separator system, 1 set maintenance platform, 3 sets steel shot semi-automatic flow valve, 3 sets CNC blast wheel, 1 set dust collector. system

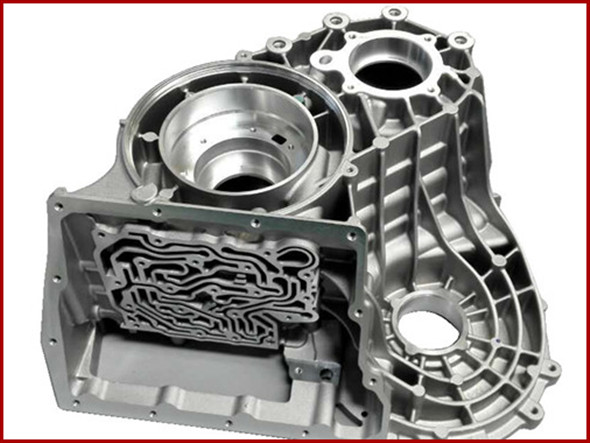

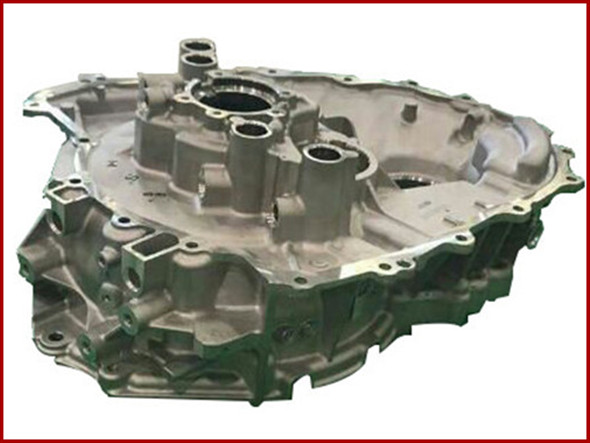

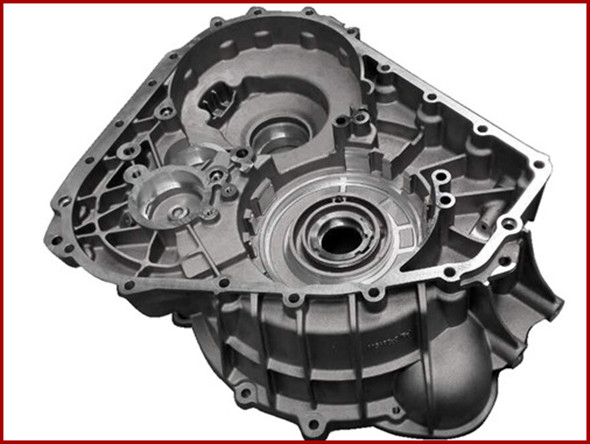

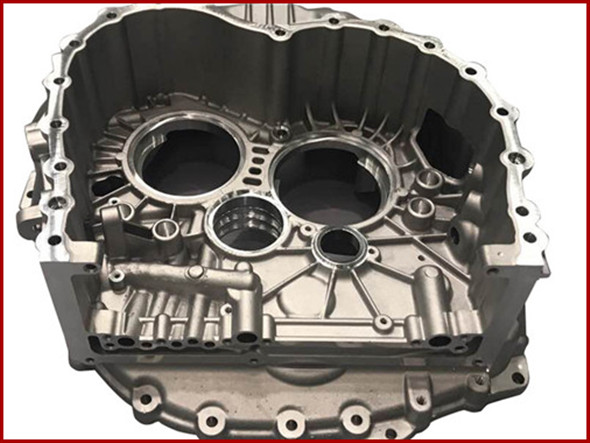

Automotive transmission system components processed by hook type shot blasting machine



Application case of double spinner shot blasting machine used in automotive transmission system(图1) Application case of double spinner shot blasting machine used in automotive transmission system(图2)
