Decoiler Machine

1.Model No.: MT

2.Applicable Coil Width: 20mm-1300mm

3.Applicable Coil Thickness: 0.3-3.5mm

4.Coil Inner Diameter: 450-530mm

5.Coil Outer Diameter: 1200mm

6.Speed: 15m/min

7.Applications: Pressing Line/Metal Stamping Line/Forming Line

technical consultation

Video

Breif Profile

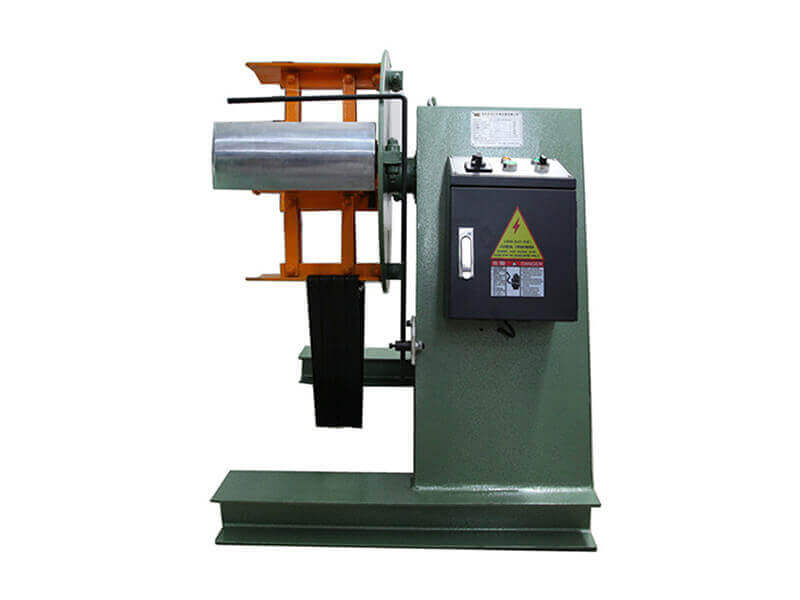

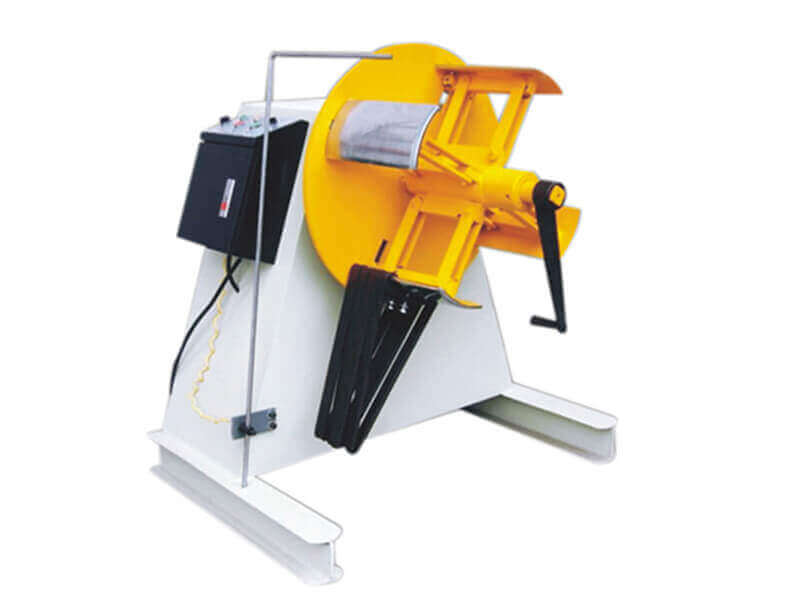

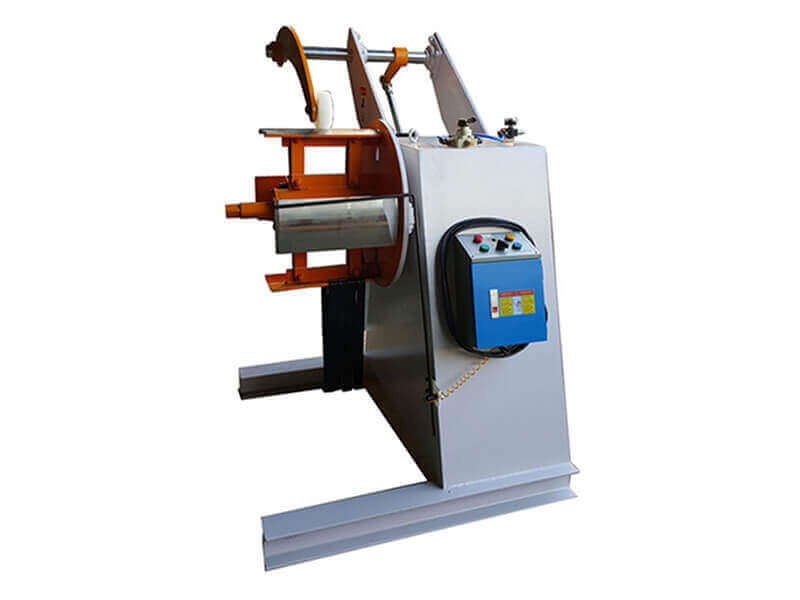

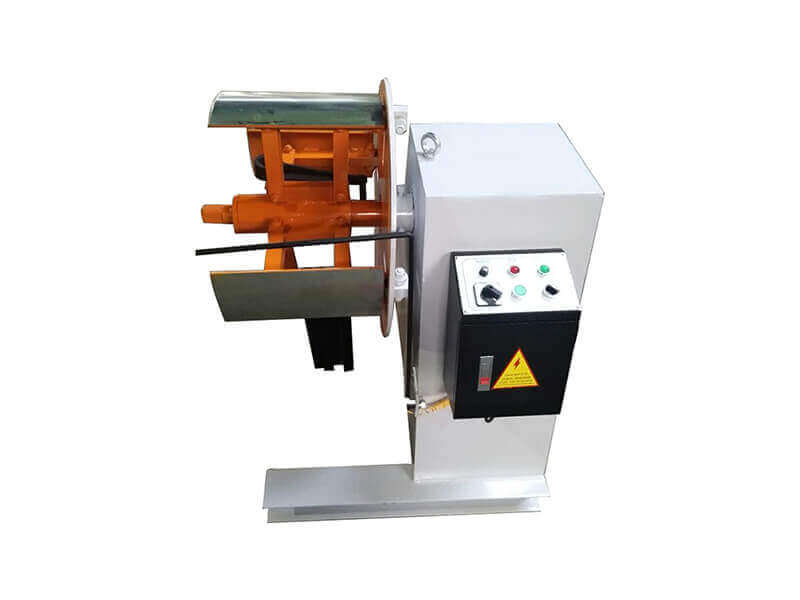

Motorized Manual decoiler is design for the low weight metal coils uncoiling, it’s located at the beginning of a process line used to hold and safely pay off or uncoil the steel strip， usually configured with the sheet metal straightener, NC servo feeder machine and power press machine.

Motorized Manual decoiler can uncoiler the coil strip from 70mm to 800mm width, from 0.2mm to 6mm thickness and load the weight up to 2tons. Usually it’s suible for the inner diameter 450-530mm, and outer diameter 1200mm.

What's more, if the thickness over the 3mm thickness, we suggest add the pressure arm to avoid injury the operator due to the excessive flexibility of materials.

Application

Model No.: MT

Applications: Pressing Line/Metal Stamping Line/Forming Line

Applicable Coil Width: 20mm-1300mm

Applicable Coil Thickness: 0.3-3.5mm

Coil Inner Diameter: 450-530mm

Coil Outer Diameter: 1200mm

Speed: 15m/min

Pressing arm and coil car for optional

Suitable for vary kind of coil material, such as Galvanized steel, Stainless steel, CR Steel, HR Steel, Galvanized steel, Stainless steel,Aluminum, Cooper etc.

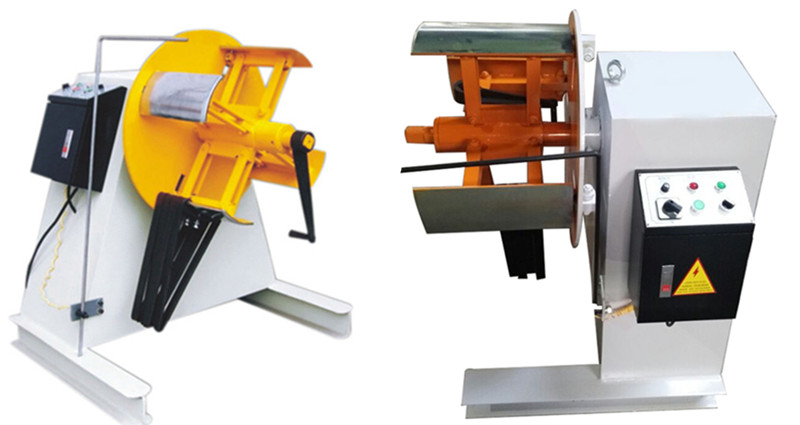

Decoiler Machine(图1)

Decoiler machine is suitable for all kinds of metal sheet stamping, such as the hardware parts, home appliances, furniture hardware, motorcycle accessories, mobile phone accessories, computer accessories and so on.

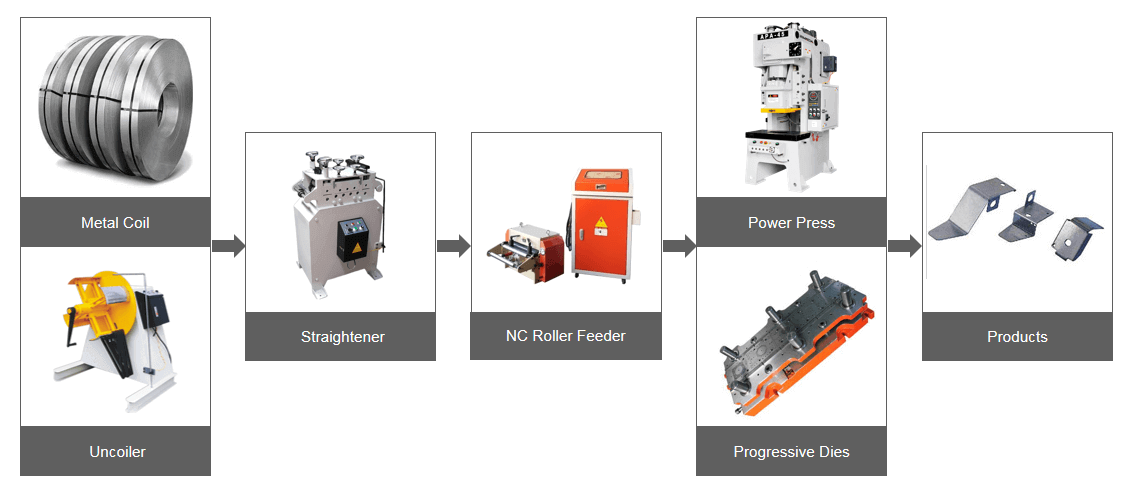

The configuration of metal sheet stamping line.

Step-1: Uncoiler machine, Loading coil and uncoilling coils

Step-2: Metal straightener machine, leveling the strips and lead it to feeder machine.

Step-3: Nc Servo Feeder machine, Feed coil to press machine.

Step-3: Power press machine with the moulds,pressing to the end product.

Decoiler Machine(图1)

Basic Parameter

Model	MT-200	MT-300	MT-400	MT-500	MT-600	MT-700	MT-800
Max.Coil Width	200 mm	300 mm	400 mm	500 mm	600mm	700mm	800 mm
Coil Thickness	0.1-3.2 mm
Coil I.D.	450-530 mm
Coil O.D.	1200 mm
Coil Weight	500 kg	800 kg	1000 kg	1500 kg	2000kgs	3000kgs	3000 kg
Expansion	Manual Expanion
Pressing Arm	Optional
Power	0.5 HP	1 HP			2 HP	3 HP
Inverter	Without
Speed	16 m/min
