Flat Uncoiler

1.Model No.: FU

2.Applicable Coil Width: 150mm

3.Applicable Coil Thickness: 0.3-3.5mm

4.Coil Outer Diameter: 800-1200mm

5.Speed: 24m/min

6.Applications: Garment accessories and electric connectors Automatic production

technical consultation

Video

Breif Profile

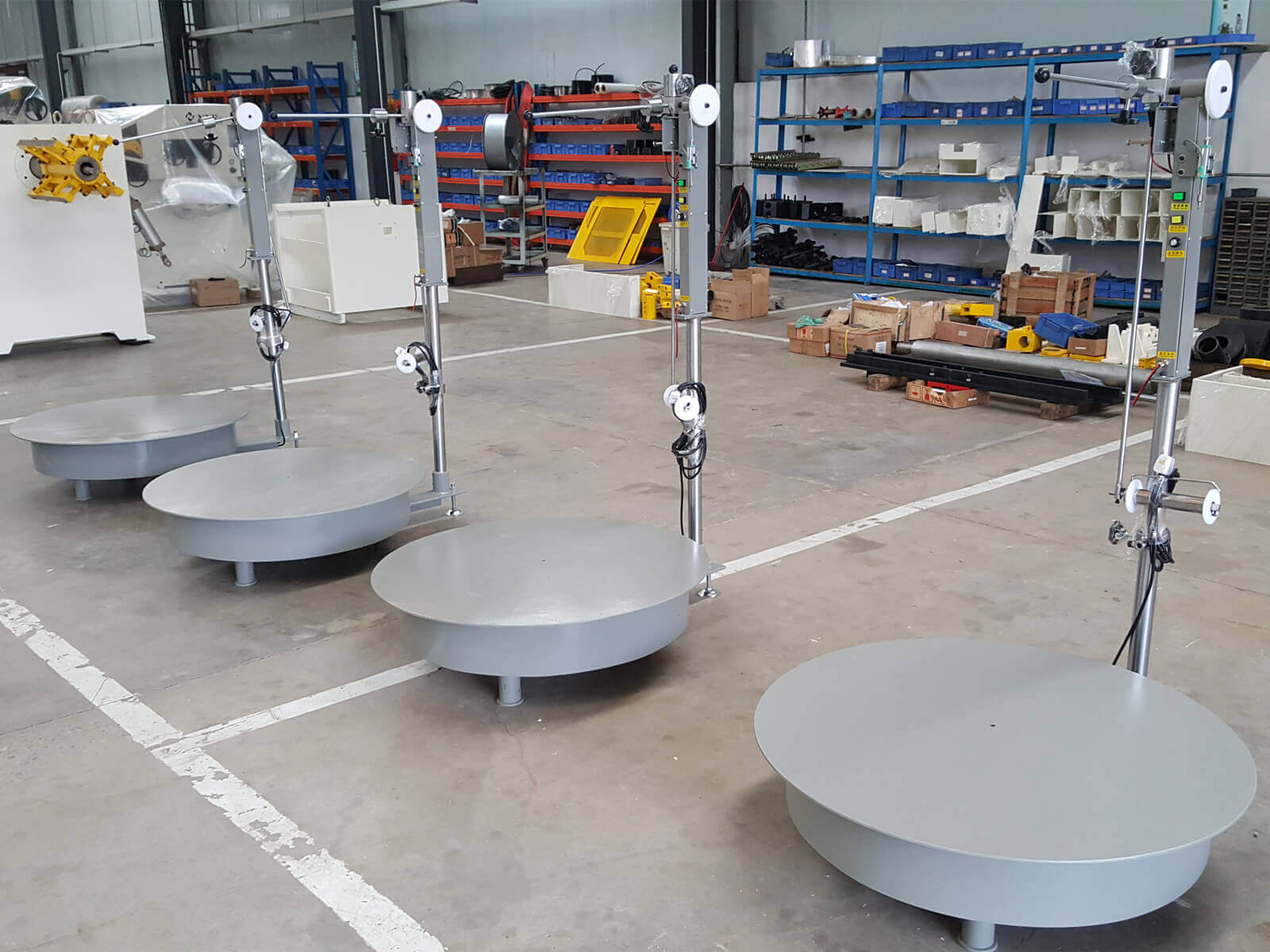

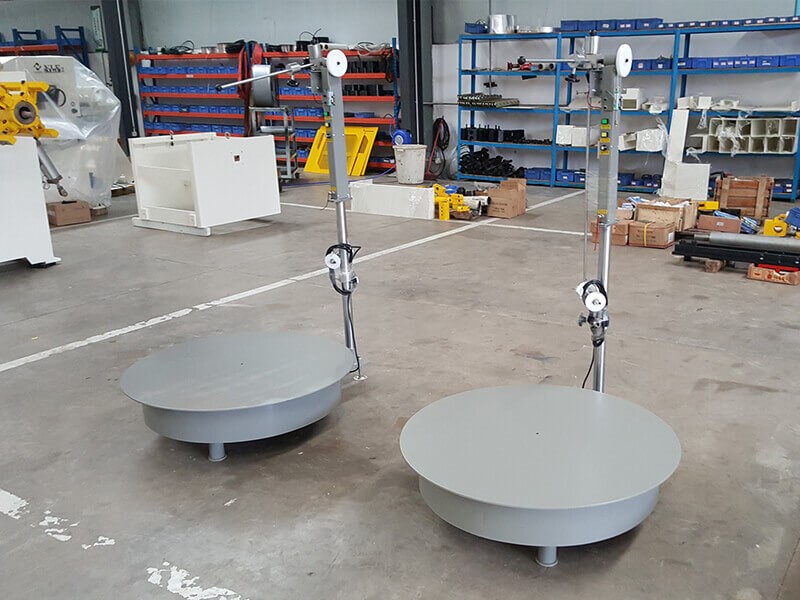

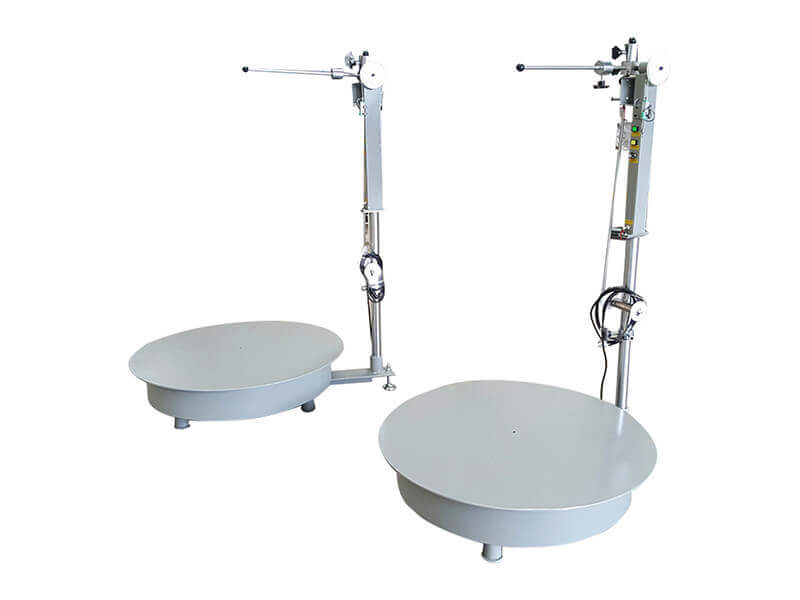

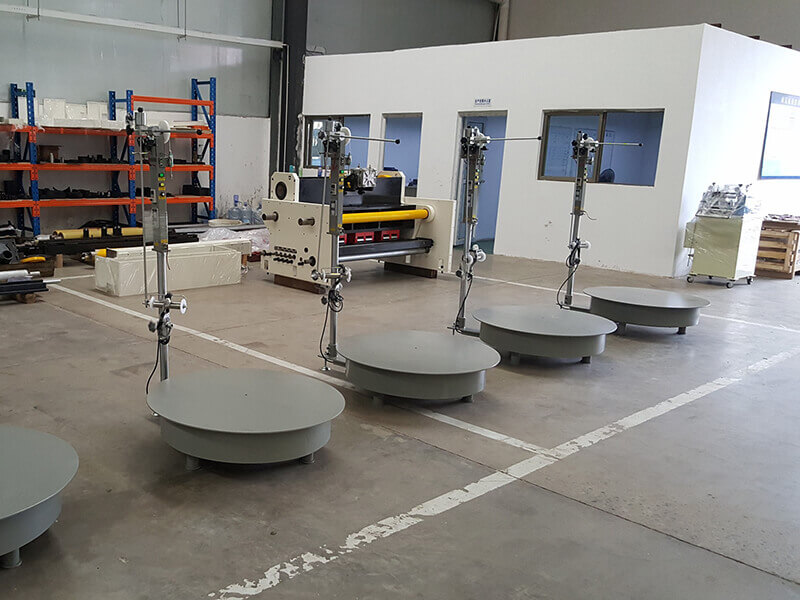

Pallet Decoiler is the horizontal type decoiler machine which it’s the most simple and easy to unload the coils.

Pallet decoiler is specialized for the soft narrow material uncoiling. It can stock a few coils which the width is less than 150mm and the thickness less than 1.0mm, the total weight less than 2000kgs at one time, it’s usually working with the high speed press machine and high speed feeder machine for making the terminal stamping, metal button stamping, eyelet stamping and small electric parts.

And the feeding speed can reach 24m/min, and the special advantage is suitable for all kinds of the inner diameter.

Application

Model No.: FU

Applicable Material: Copper, Brass, Stainless Steel, Iron and so on.

Applications: Garment accessories and electric connectors Automatic production

Applicable Coil Width: 150mm

Applicable Coil Thickness: 0.3-3.5mm

Coil Outer Diameter: 800-1200mm

Speed: 24m/min

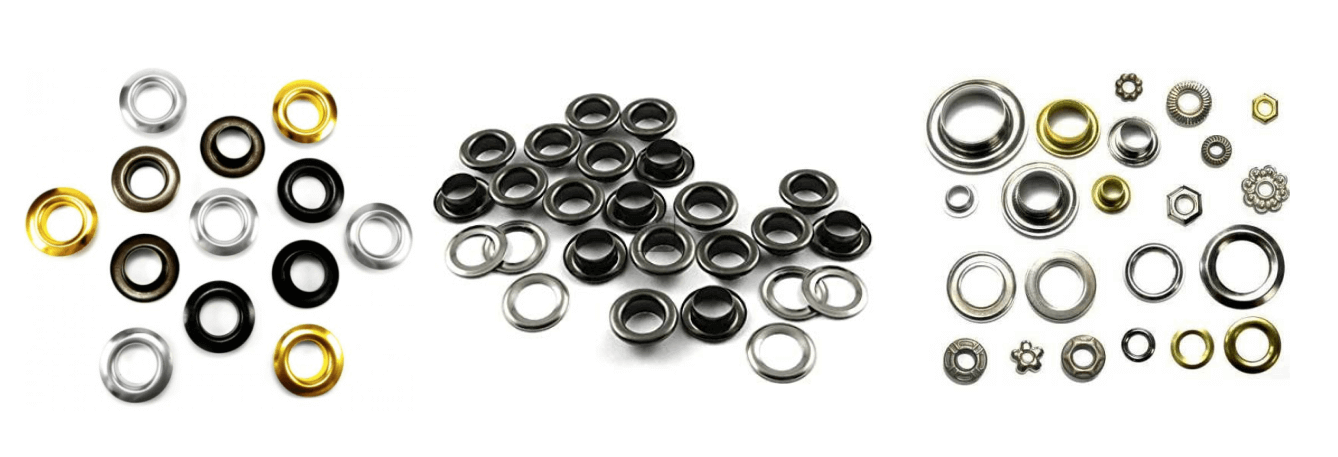

Widely used in Garment accessories and electric connectors Automatic production such as metal button, eyelet, Led stand, terminal, saw blad, precision mobile phone accessories.

Flat Uncoiler (图1)

Usually, FU decoiler machine is working with high speed press machine.

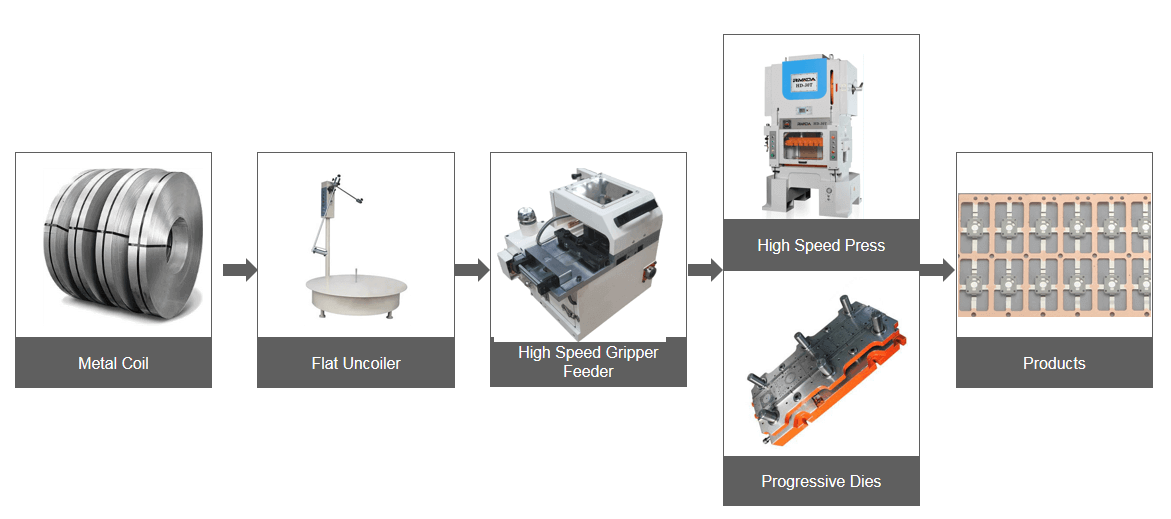

The configuration of High speed Metal button/eyelet/terminal/Saw blade stamping press machine:

Flat Uncoiler (图1)

Stept-1: Electrical falt Uncoiler FU-1000, Loading coil and uncoilling coil.

Stept-2: High speed roller feeder machine, Feed coil to press machine.

Stept-3: High speed press machine with tools, pressing to the end product.

Flat Uncoiler (图2)

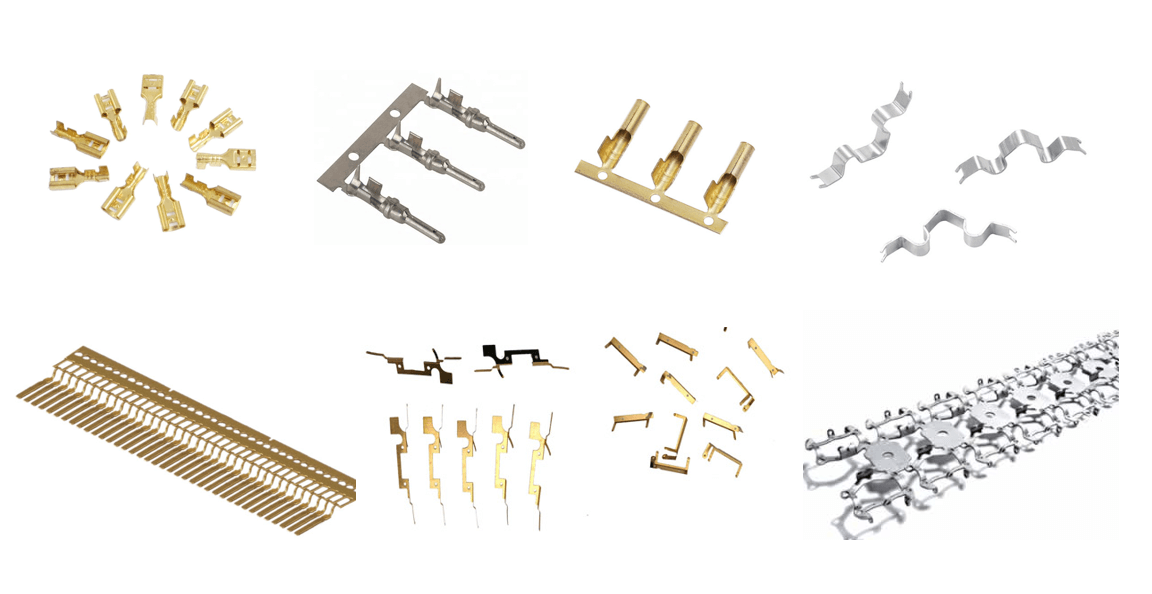

The configuration of High speed press line for making electronic parts such ternimal.

Flat Uncoiler (图1)

Step-1: Flat Decoiler Machine, Loading coil and uncoilling coil.
Step-2: High speed feeder machine, Feed coil to press machine.
Step-3: High speed press machine with the moulds,pressing to the end product

Flat Uncoiler (图2)

Basic Parameter

Model	FU-500	FU-1000	FU-2000
Max. Coil Width	150 mm
Coil Thickness	0.1 mm - 1.0 mm
Loading Weight	500 kgs	800 kgs	1500 kgs
Max. Loading Height	600 mm
Max. Coil O.D.	800 mm	1000 mm	1200 mm
Feeding Speed	24 m/min
Motor	0.5 HP	1 HP	2 HP
Inverter	No	Delta, Taiwan
