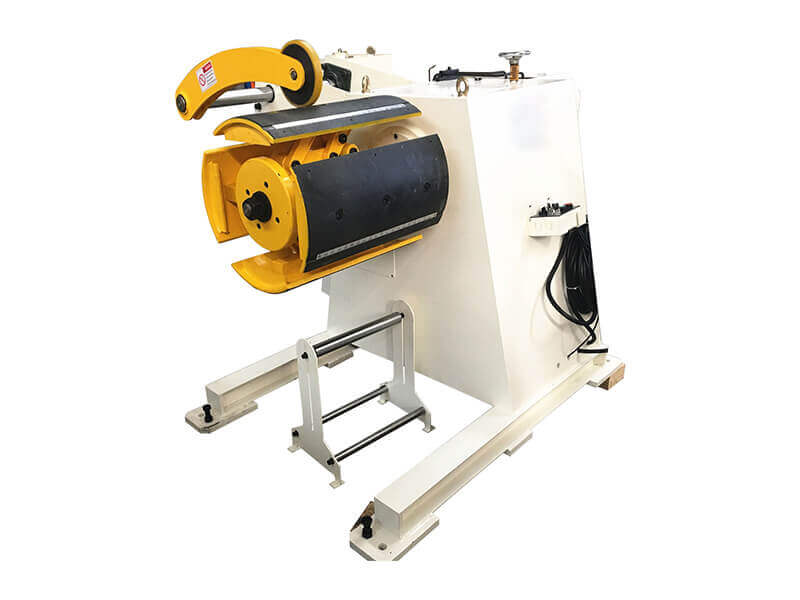

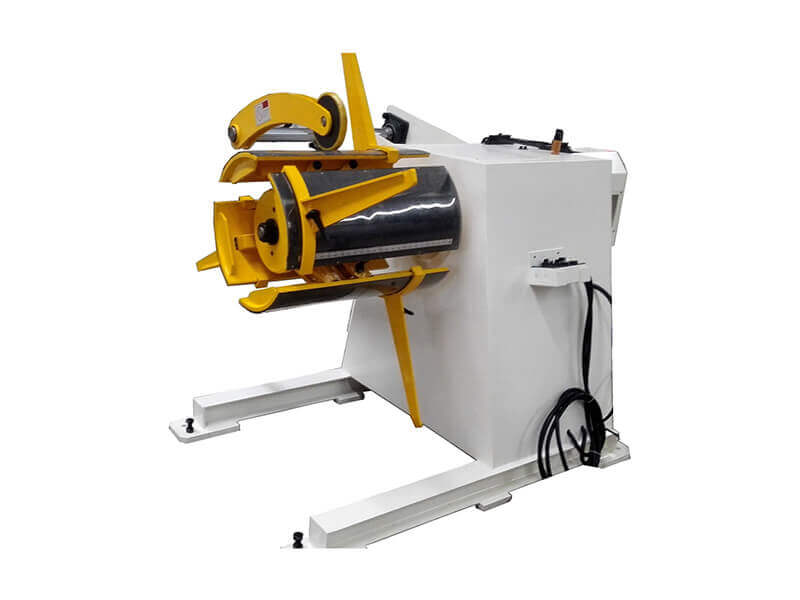

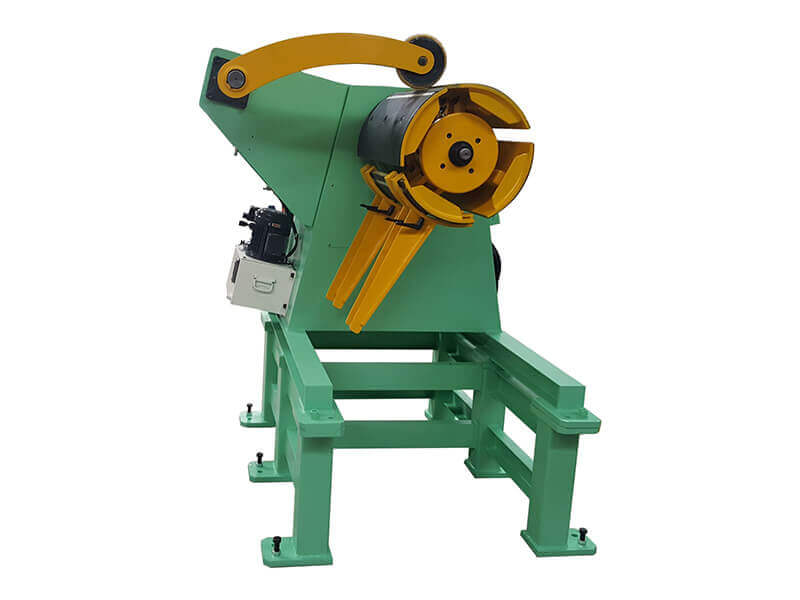

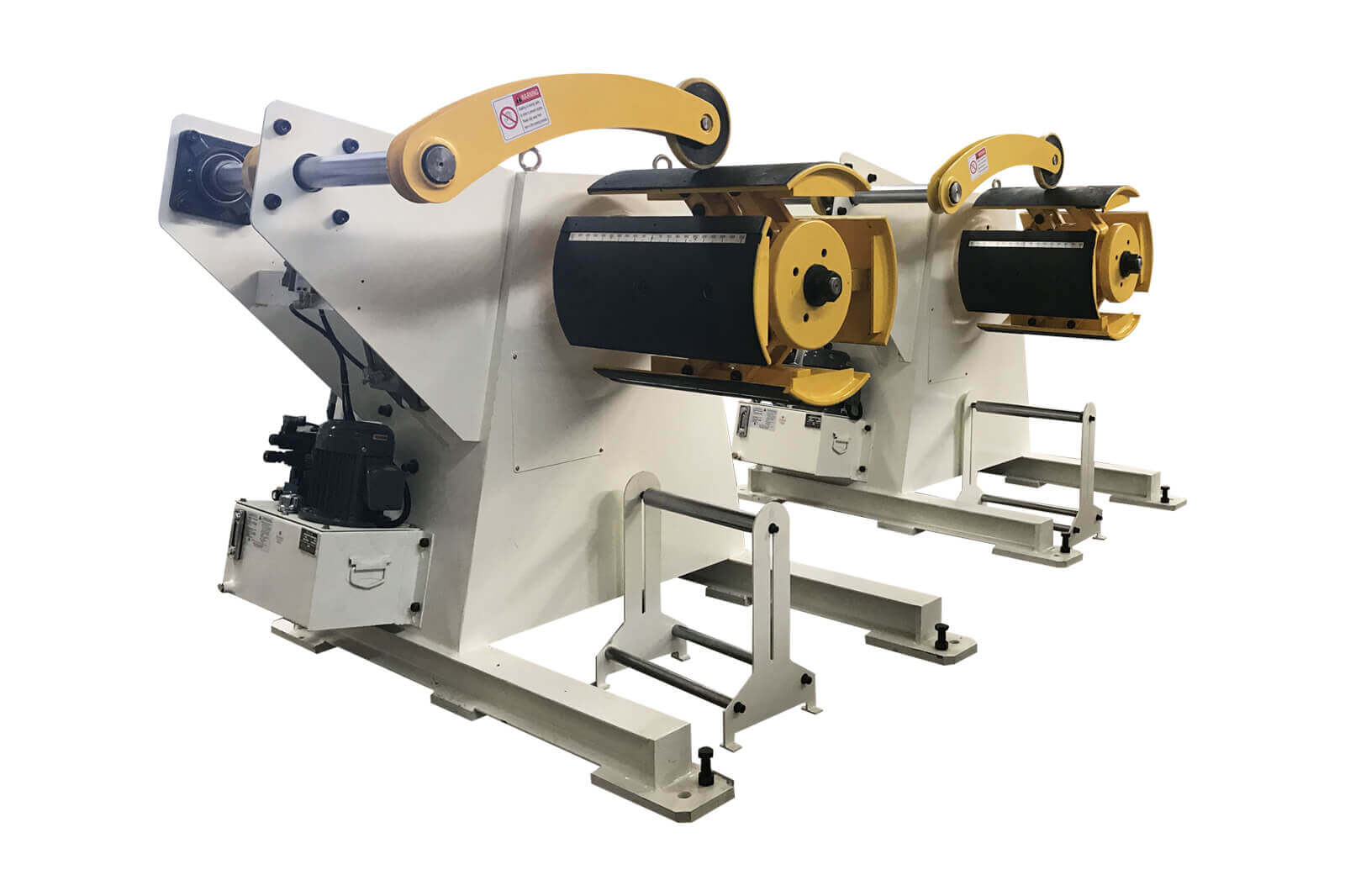

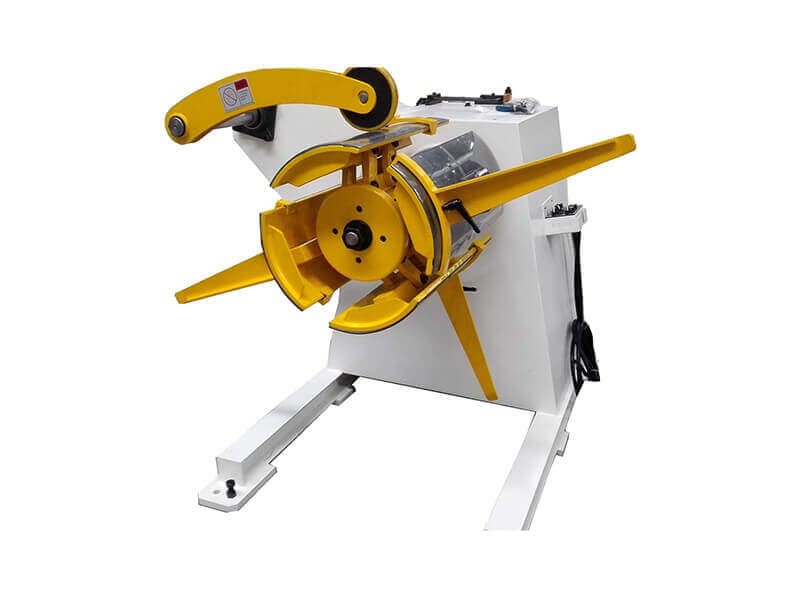

Hydraulic Decoiler Machine

1.Model No.: MT

2.Applicable Coil Width: 200mm-1500mm

3.Applicable Coil Thickness: 0.3-3.5mm

4.Coil Inner Diameter: 450-530mm

5.Coil Outer Diameter: 1600mm

6.Max. weight: 10tons

7.Speed: 15m/min

8.Applications: Pressing Line/Metal Stamping Line/Forming Line

technical consultation

Video

Brief Profile

Hydraulic heavy duty decoiler machines are used to facilitate the work of operator and facilitate the inner tightening process, for higher weight rolled sheet metal that can not be done used using manual tightening system.

When the hydraulic roll decoiler is used, the process of loading the roll onto the decoiler will be facilitated and speeded up. Using a hydraulic loading car will further facilitate the loading process and shorten the time as well.

Application

Working Width Capacity : 200-1500 mm

Coil Carrying Capacity :500kgs-10000kgs

Coil Inner Diameter Clamping Capacity : 460-520 mm

Coil Outside Diameter Working Capacity : 1400-1600 mm

Coil Inner Pressure Function : Hydraulic Mandrel

Machine Working Movement : Left to Right or Right to Left

Inverter Motor with Speed Control

Pressure Arm and Coil Car is optional

Hydraulic heavy duty decoiler machine is the improtant equipment in steel metal production line,

Used in roll forming production line and cutting to length line, mainly used to hold steel strip to make coils unfold,supplying raw material for the production line.

Hydraulic Decoiler Machine(图1)

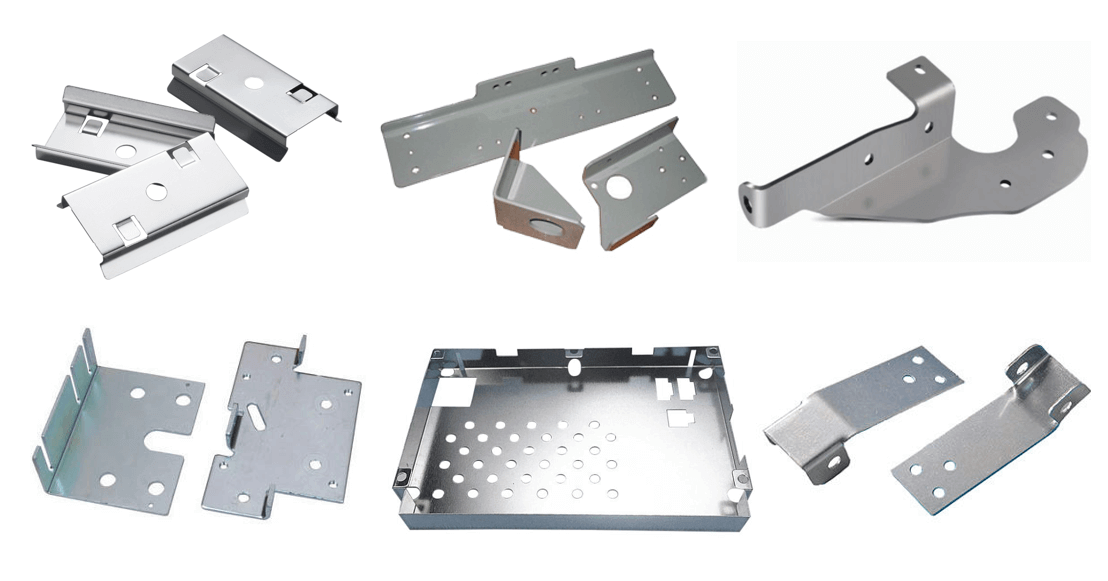

Hydraulic heavy duty decoiler machine is suitable for all kinds of metal sheet stamping, such as the hardware parts, home appliances, furniture hardware, motorcycle accessories, mobile phone etal sheet straightener accessories, computer accessories and so on.

Hydraulic Decoiler Machine(图1)

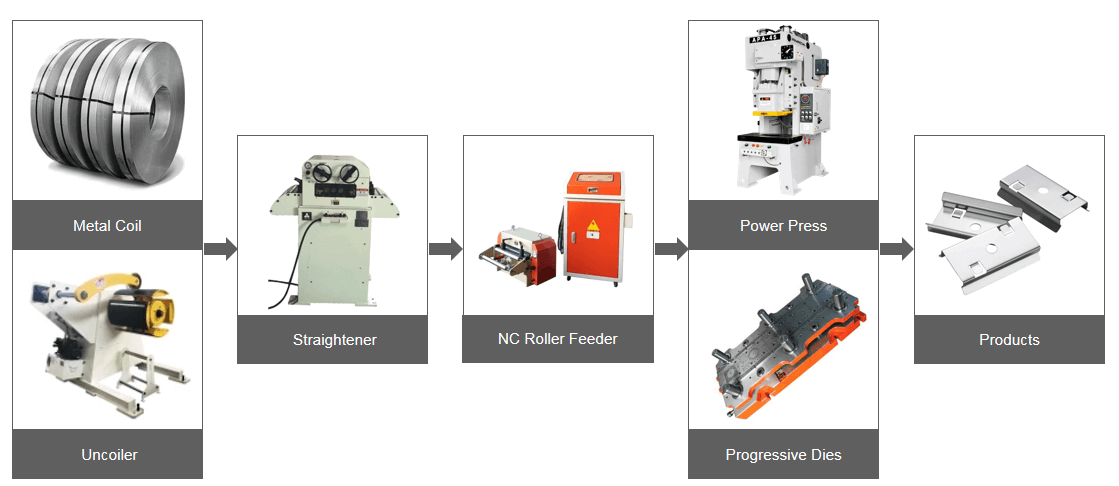

The configuration of metal sheet stamping line.

Step-1: Uncoiler machine, Loading coil and uncoilling coils

Step-2: Metal straightener machine, leveling the strips and lead it to feeder machine.

Step-3: Nc Servo Feeder machine, Feed coil to press machine.

Step-3: Power press machine with the moulds,pressing to the end product.

Hydraulic Decoiler Machine(图1)

Basic Parameter

Model	MT-400F	MT-500F	MT-600F	MT-700F	MT-800F	MT-1000F	MT-1200F
Coil Width	200 mm	300 mm	400 mm	500 mm	600 mm	700 mm	800 mm
Coil Thickness	0.1 mm - 3.2mm
Coil I.D.	450-530 mm
Coil O.D.	1200 mm
Coil Weight	1000 kgs	1500 kgs	2000 kgs	3000 kgs		5000kgs
Expansion	Hydraulic Expanion
Pressing Arm	Pneumatic Type Pressing Arm
Inverter	Delta, Taiwan
Speed	16 m/min
