Compact Coil Feed Line (0.6-6.0mm)

Applicable Material

Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc.

Coil Width: 100-1600 mm

Material Thickness: 0.6-6.0 mm

Yield Strength: ≤245 N/mm2

Tensile Strength: ≤392 N/mm2

technical consultation

Video

Brief Profile

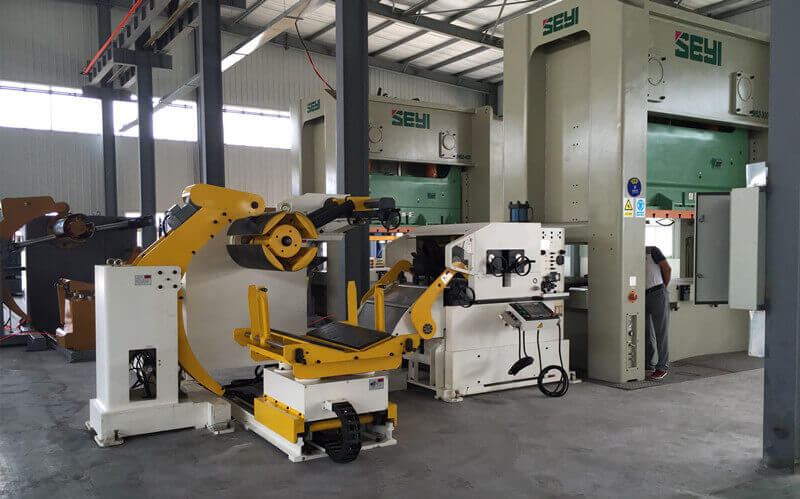

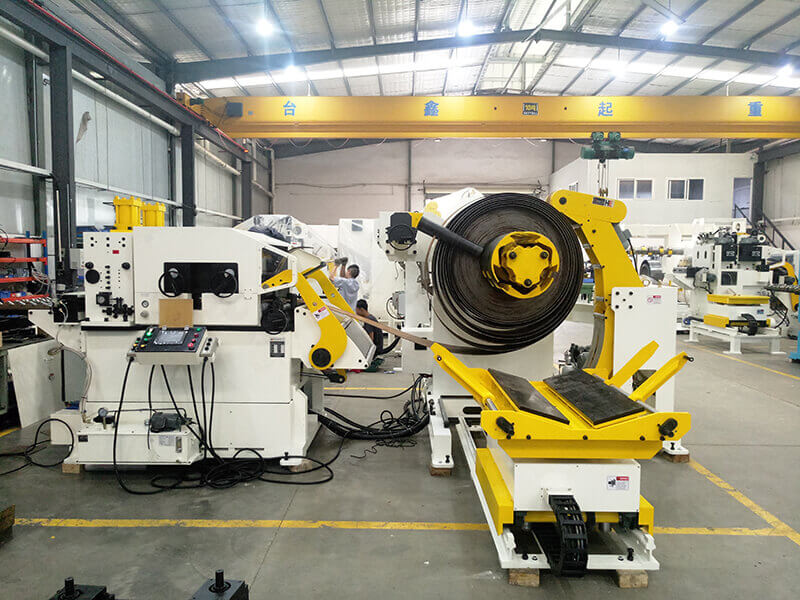

By combination of decoiler, straightener and feeder machine into one unit, so called compact coil feeding line, which is positioned directly at the press, the needed space for a material loop of straightened material can be saved.The straightener-feeder is supplied with material out of a very small loop of not straightened material below the decoiler. And the decoiler is equipped with a variable speed drive as well as with a very sensitive loop control. By this way it is assured that there always will be enough material available for supply of the straightener-feeder.

In case that feeding lengths and stroke rates do require a bigger material stock within the material loop, the Compact Coil Feeding Line will be completed with a loop pit.

With our Coil Processing Systems you can process coil material width from 400mm to 1600mm, coil thickness from 0.6-6.0mm, coil weight up to 20000kgs.

Compact coil feeding line is design to make thick plate of auto parts stamping, such as brake pads, front pillar, Seat slide rail, center pillar, flip wheel and so on.

Application

AUTOMOTIVE

Manufacture of equipment for metal stamping of automotive parts. Structural car body parts and other parts like front brackets, brake pads, wipers, seat supports, electrical windows, exhaust pipes, catalytic converters, radiators, levers, pedals, gear box parts, wheels, damping supports, etc ...

BUILDING & HOUSEHOLD

Feeding lines to produce a variety of metal components for the building and household sector and derivatives. Parts like braces, clamps, straps, locks and hinges for doors,furniture hardware, knifes, cooking ware carpentry parts, metal supports, perforated plates, etc ..

HOME APPLIANCE & ElECTRONICS

Installations for the manufacture of parts for household appliances sector or white goods. Metal pieces like heat sink and other heating parts, motor housings, doors,electric cabinet, shells and covers, trays, guides, caps, supports, brackets, handles, etc ...

ILLUMINATION

Many solutions for the blanking of metal parts for lighting sector. Several parts such as housings, panels, brackets, feet, arms, buttons, diffusers, etc ...

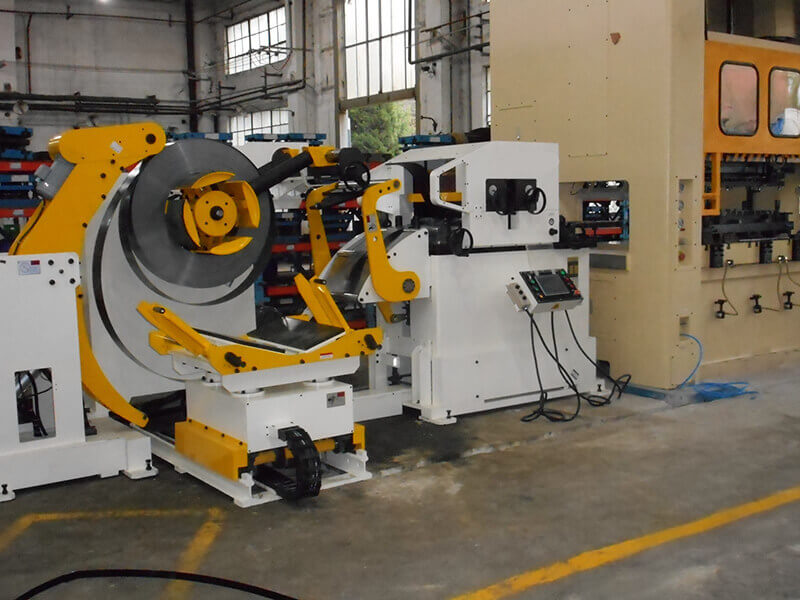

Compact Coil Feed Line (0.6-6.0mm)(图1)

Features

Space-saving, easy installation and low maintenance

Compact design is ideal for limited space metalworking stamping process.

The compact coil feeding line is very easy to install, which can enter into mass production in a short time. Without a long material loop, the coil feeding line length is usually no more than 5m, some models such as MFL2 is only 3m length, which will save workplaces of stamping room. Thanks to the international brand core components, automatic lubrication system and self-inspection procedures, the compact coil feeding line have a very low failure rate and easy to maintenance.

What’s more, until now the machine which we sold has few after-sales problems.

Modular control, simple and smart operation

Compact coil feeding machine is not only a simple combination of decoiler, straightener, and feeder machine into one unit, but also highly integrated control in operations. Easy to operate and maintain. Our machine adopts PLC control, all process parameters of products to be stamping can be set up and saved in program means that there is no need to repeat input, also with the characteristic of high degree of automation, high operation safety, low maintenance. Reducing labor input and improve the production efficiency. Moreover, movable regulating handle is very convenient operation for installing and debugging when the machine is testing.

Advance Techniques

With the world’s leading automatic metal forming stamping techniques ,advanced and humanized management system,we unite thousands of elites dedicated to the development of automatic press,including top engineers in this field,experienced technicians, production workers with fine craftsmanship to ensure every equipment produced durable ,high-efficiency and stable.

Reliable Structure Design

Super large scale and plenty of advanced quality control measures including CNC machining, grinding machine, boring machine and Lathe machine equipment and various precision testing instruments from Germany, Japan and Taiwan. It can ensure the high precision and quality of all parts of machine.

What's more, all of main body makes surface treatment with our shot blasting machine before they are painted. With our shot blasting machine treatment, the machine surface is excellent for painting.they blast onto the surface of work piece with shots to clean and beautify the surface. The shot blasting also enhances the pressure stress of work piece surface and extends the lifespan.We also use high-end vehicle oil paint for our machine to have high level of painting quality and you don’t need to worry about broken painting problem under extremely nasty working environment.

High precision straightening and feeding performance

With the coil inlet supporting arm assisting, the strip head will be inserting into the straightener part automatically and smoothly, and driven by gear transmission, the strips will be straightening and feeding forward.

The straightener roller and feeder roller mechanism are placed on the same precise platform to ensure the uniformity of parallel precision and to limit the error of leveling and feeding operation to the maximum extent.

Wide range of metal coil stamping application

Compact coil feeding line is design to make thick plate of auto parts stamping, such as brake pads, front pillar, Seat slide rail, center pillar, flip wheel and so on.

Also for hardware stamping parts, furniture and home appliances and so on.

Main parts

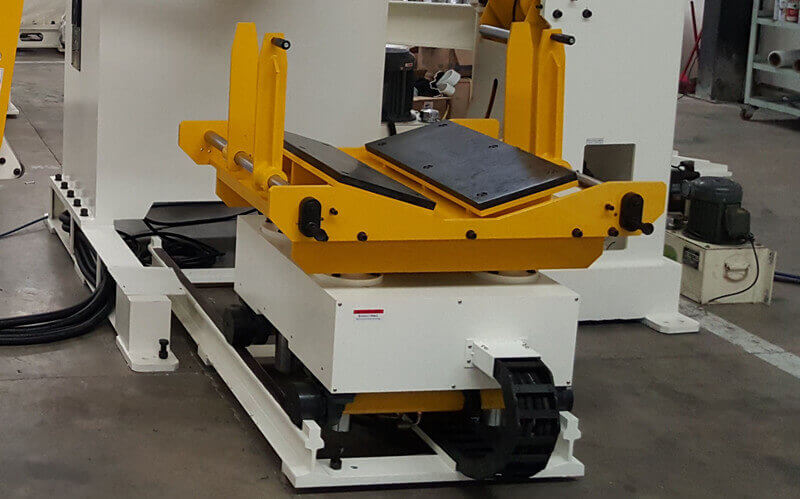

Coil Car

The surface of Coil car is V type with sandblasting surface treatment process, it can protect the material surface from scratching and the main function is assisting loading the coils on the spindle rack of decoiler parts.

Adjustable coil guide baffles prevent narrow coils from dumping

Coil car move forward and backward by Hydraulic motor

Coil car lifting up and down smoothly by hydraulic cylinder

Compact Coil Feed Line (0.6-6.0mm)(图1)

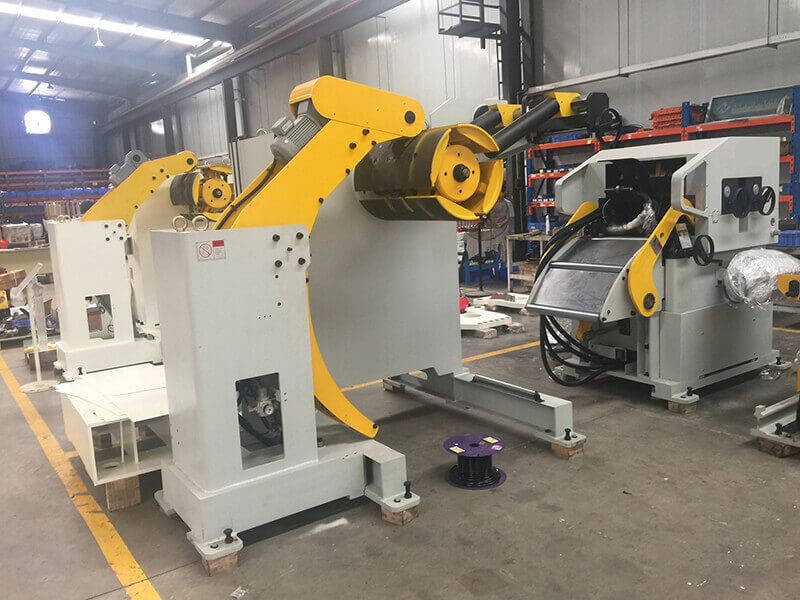

Decoiler Parts

After the coils holds on the spindle of decoiler machine, be sure to press the press arm and hold on the coil strips, it is driven from its outside diameter via spindle. Hydraulic threading mechanisms and a hydraulically opening and closing straightening head, allow for safe and easy threading of even narrowest, thickest strip.Decoiler with support cantilever structure can loading up to 15ton. And there’re f hydraulic structure for uncoiler spindle expansion. Moreover, material auto-alignment function as an optional meet your requirements.

Spindle expansion range: Φ470-Φ520mm.

Decoiler is Driven is by AC motor with an inverter

Press arm pressure is driven by AC motor

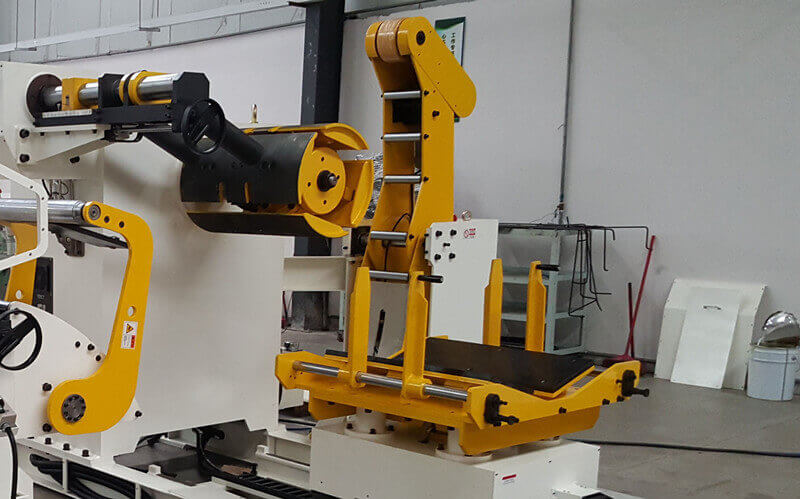

Compact Coil Feed Line (0.6-6.0mm)(图2)

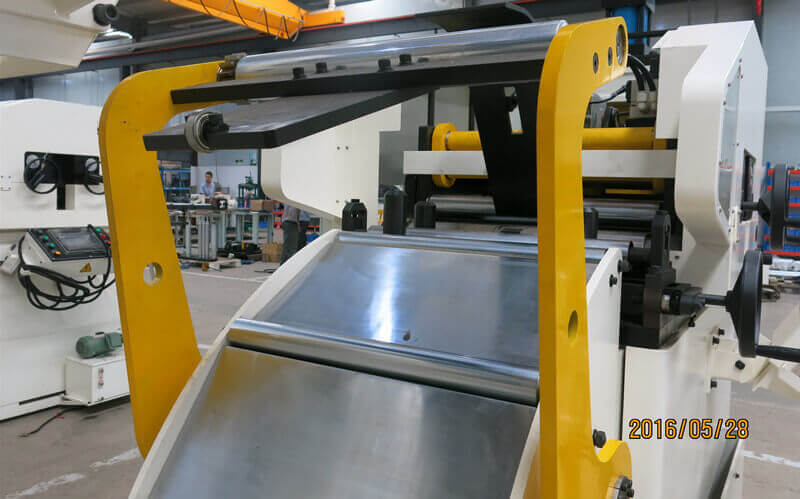

Coil inlet support Arm

After uncoiling process, the support arm of decoiler machine will rise up and lead the material strips into coil inlet support arm which is driven by a hydraulic cylinder will close automatically to hold-down material strip when strip head touch the straightener part.

The bottom inlet roller is geared transmission, sharing drive power with straightener rollers. When upper inlet roller goes down, the two rollers clamp the metal strip and lead it to the straightening part. These two rollers are made by high quality bearing steel, with sandblasting treatment, hardness reaches HRC60±2.

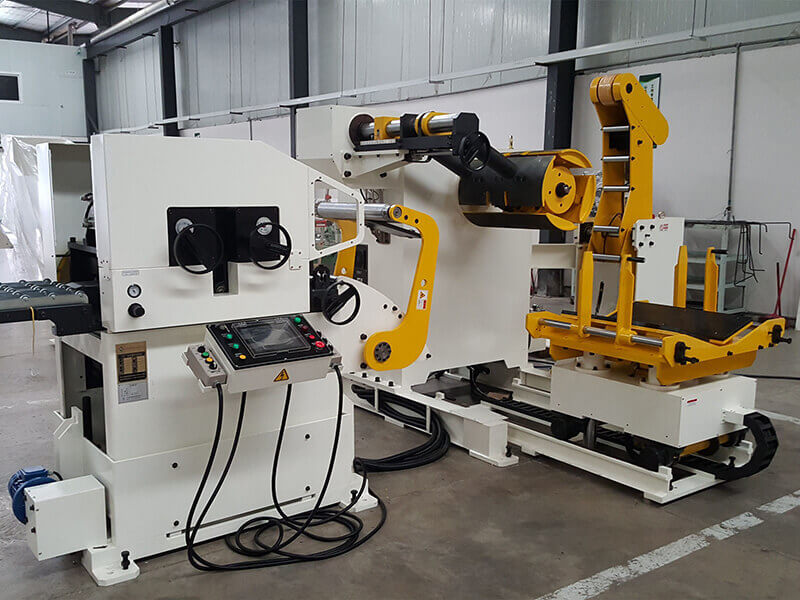

Compact Coil Feed Line (0.6-6.0mm)(图3)

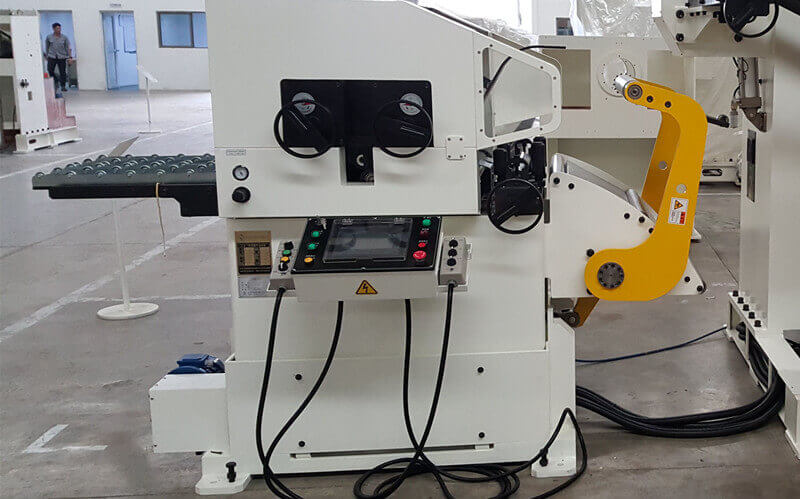

High Precision Straightening and Feeding Parts

The straightener feeder parts is straightening the coil strips and feeding it into the stamping press and dies according to the fixed length controlled by PLC.

Given the difference in coil at the beginning of rollers and the end of roller, it is usually necessary for an operator to always be monitoring straightening operations, and to manually carry out corrections to ensure a high degree of precision in straightening. With the unique electrically adjustment fitted on the MFL4 Series coil straightener-feeder, changes in the coil strips thickness are detected during production. Straightening correction is performed continuously and automatically. it making a significant contribution to operational efficiency.
Moreover, additional backup roller can achieves a high precision straightening performance.

Compact Coil Feed Line (0.6-6.0mm)(图1)

Hydraulic cutting (Option)

A hydraulic shearing unit is used to cut the material heads and tails for productivity improvement and better stamping product quality. The hydraulic cutting unit has four sides scissors to achieve smooth cutting.It's operated by touch screen control and with manual scissors adjustment.

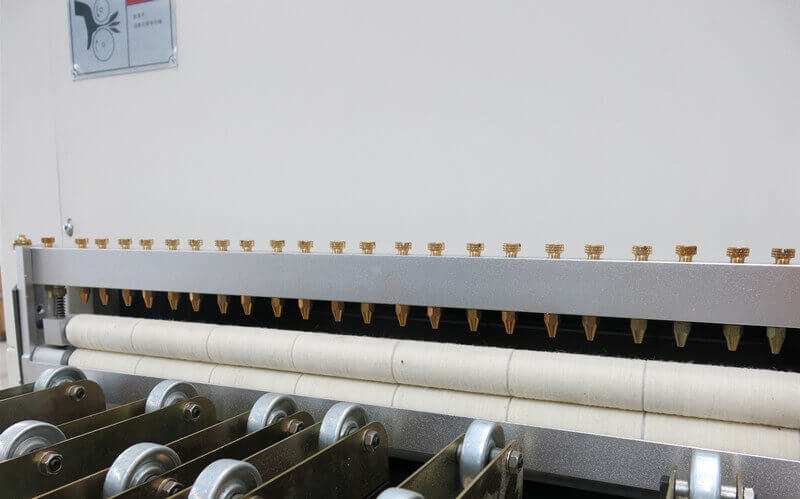

Automatic Lubrication Unit (Option)

Lubrication of steel strip before stamping will protect the stamping dies from damaging and prolonging the uselife. The automatic lubrication system is automatically controlled, with an oil loop recycling system, which will save oiling cost and prevent leakage. Compact Coil Feed Line (0.6-6.0mm)(图2)

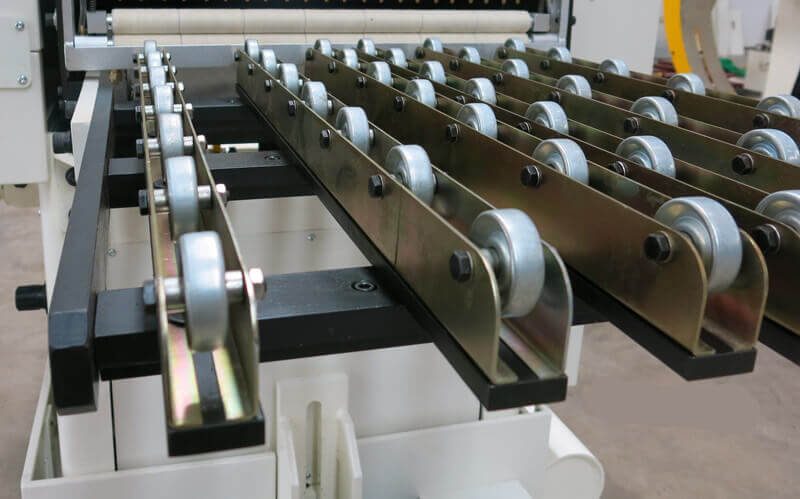

Discharging Support Bracket

The outlet support bracket is used to deliver the straightening strips to press die smoothly. When the coil material is thin thickness or soft material , or the distance between straightener-feeder and stamping dies is long, the strip can not be delivered the strip head into the die successfully, the support bracket will help to reach it. The length of the support bracket is adjustable to meet different dimensions of stamping press machine and dies.

Compact Coil Feed Line (0.6-6.0mm)(图3)

Basic Parameter

Model	MFL4-400	MFL4-500	MFL4-600	MFL4-800	MFL4-1000	MFL4-1300	MFL4-1600
Stock Width(mm)	70~400	70~500	70~600	70~800	70~1000	70~1300	70~1600
Stock Thickness(mm)	0.6~6.0
Max.Coil Weight(kg)	5000	5000	5000	7000	7000	1000	15000
Max.Coil O.D.(mm)	1400
Coil I.D.(mm)	φ470-520
Feed Length(mm)	~500*
Max.Line Speed(m/min)	16~24
Straightener Rolls(piece)	φ68mm*7(upper4/ lower 3)
Feed Rolls (piece)	φ88mm*2 (upper 1/ lower 1)
Back-up Rolls (piece)	φ68mm220mm3 Groups
Main Motor	AC5.5	AC5.5	AC7.5	AC7.5	AC11	AC11	AC15
Mandrel Expansion	Hydrauilc
Reel Motor(kw)	2.2	2.2	2.2	3.7	3.7	7.5	11
Power(v)	3 Phase 220V/380V/440V/50HZ
Operating Air(Mpa)	0.49

Straightener Capacity( Yield strength σs≤245N/mm² ,Tensile strength σb≤392 N/mm²)
Model		Thickness(mm)
Model		0.6	1	1.3	1.6	2	2.3	2.8	3.2	4	4.5	5	6
Width(mm)	MFL4-400	400										293	203
	MFL4-500	500									361	293	203
	MFL4-600	600								457	361	293	203
	MFL4-800	800								457	361	293	203
	MFL4-1000	1000							714	457	361	293	203
	MFL4-1300	1300						933	714	457	361	293	203
	MFL4-1600	1600				1170		933	714	457	361	293	203
