to have high level of painting quality and you don’t need to worry about broken painting problem under extremely nasty working environment.

High precision straightening and feeding performance

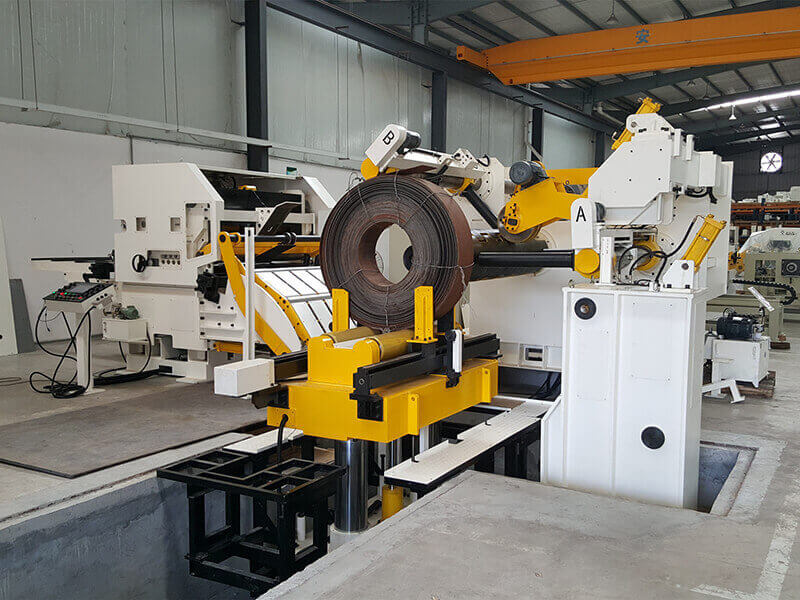

The metal coils trips will be inserting into straightener-feeder part automatically after uncoiling, with photoelectric sensors for full closed loop control, no manual operation. The straightener roller and feeder roller mechanism are placed on the same precise platform to ensure the uniformity of parallel precision and to limit the error of leveling and feeding operation to the maximum extent.

Wide range of metal coil stamping application

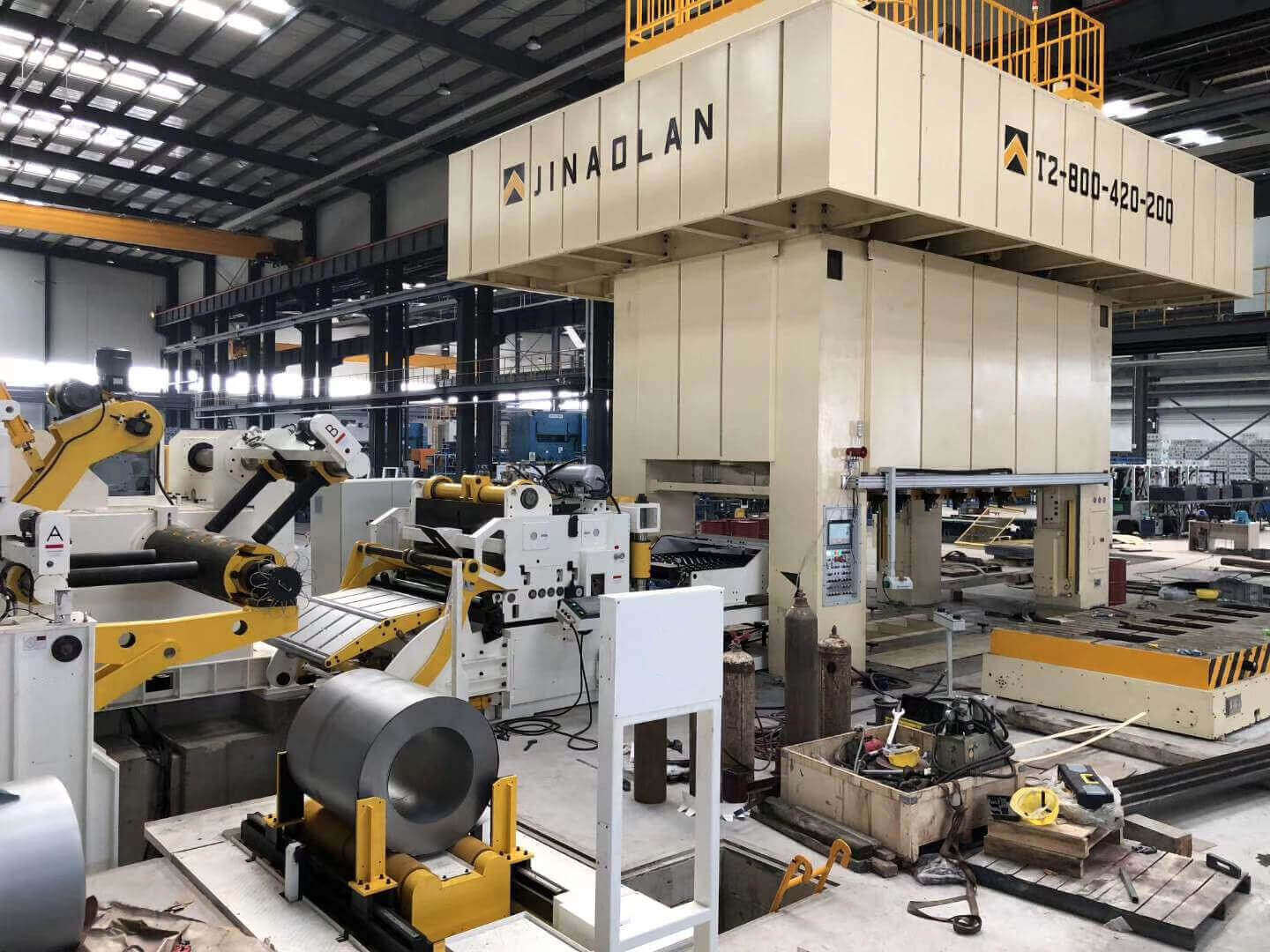

The high strength coil feeding line is not only suitable for normal material with thick thickness, but also can handle high strength material. It can deal with steel thickness up to 12mm coil width up to 1800mm with high precision straightening performance. Compact coil feeding line is ideal for the high strength material steel stamping in automotive,construction and electrical appliance industry manufacturing.

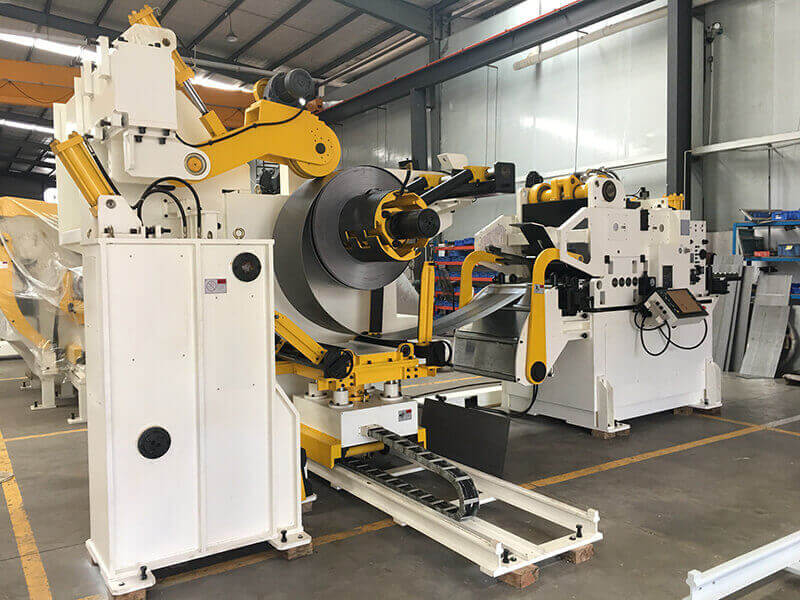

Space-saving, easy installation and maintenance

Compact design is ideal for limited space workshop.

The compact coil feeding line is very easy to install, which can enter into mass production in a short time. Without a long material loop, the coil feeding line length is usually no more than 5m, some models such as MFL2 is only 3m length, which will save workplaces of stamping room. Thanks to the international brand core components, automatic lubrication system and self-inspection procedures, the compact coil feeding line have a very low failure rate and easy to maintenance.

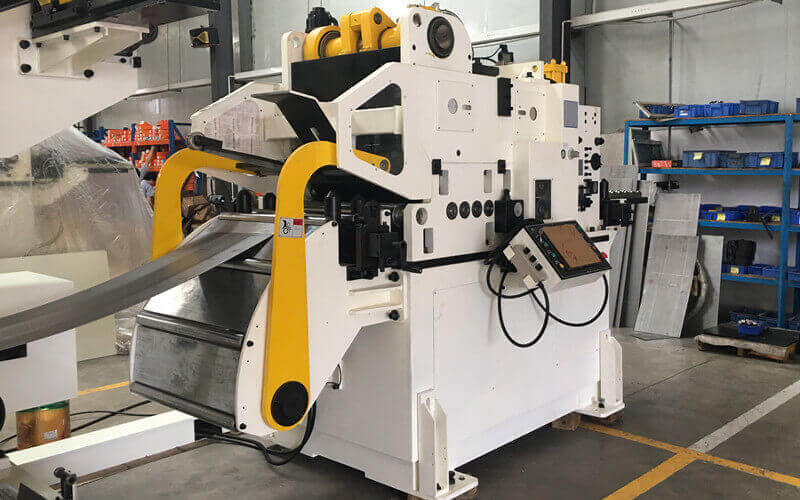

High Precision Straightening and Feeding Parts

The straightener feeder parts leveling the coil strips and feeding it into the stamping press and dies according to the fixed length controlled by PLC.

Given the difference in coil at the beginning of rollers and the end of roller, it is usually necessary for an operator to always be monitoring straightening operations, and to manually carry out corrections to ensure a high degree of precision in straightening. With the unique electrically adjustment fitted on the MFL4-GF Series coil straightener-feeder, changes in the coil strips thickness are detected during production. Straightening correction is performed continuously and automatically. it making a significant contribution to operational efficiency.

Moreover, additional backup roller can achieves a high precision straightening performance.

Hydraulic cutting (Option)

A hydraulic shearing unit is used to cut the material heads and tails for productivity improvement and better stamping product quality. The hydraulic cutting unit has four sides scissors to achieve smooth cutting.It's operated by touch screen control and with manual scissors adjustment.

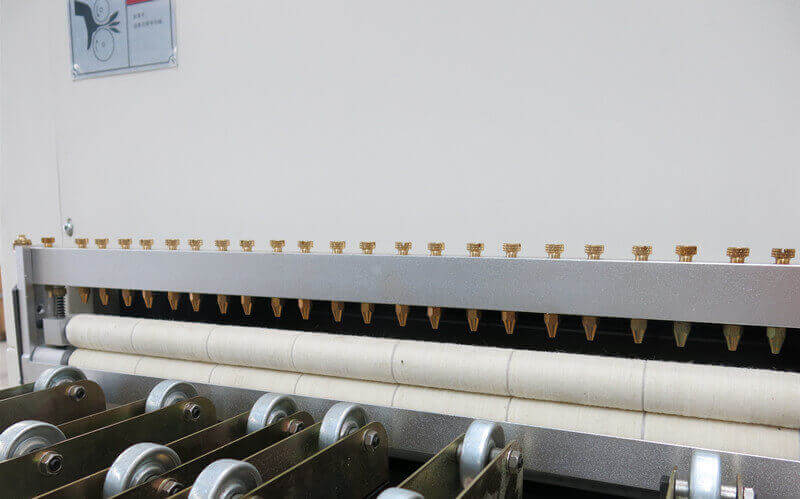

Automatic Lubrication Unit (Option)

Lubrication of steel strip before stamping will protect the stamping dies from damaging and prolonging the uselife. The automatic lubrication system is automatically controlled, with an oil loop recycling system, which will save oiling cost and prevent leakage.

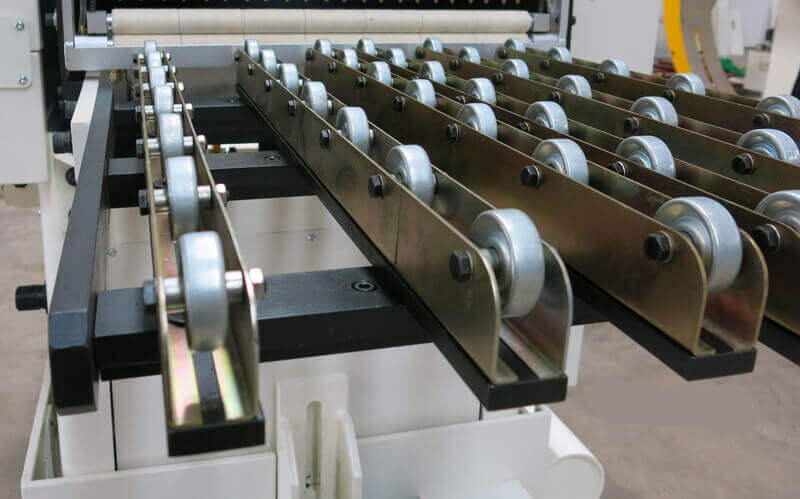

Discharging Support Bracket

The outlet support bracket is used to deliver the straightening strips to press die smoothly. When the coil material is thin thickness or soft material , or the distance between straightener-feeder and stamping dies is long, the strip can not be delivered the strip head into the die successfully, the support bracket will be help to reach it. The length of the support bracket is adjustable to meet different dimensions of stamping [ress machine and dies.
