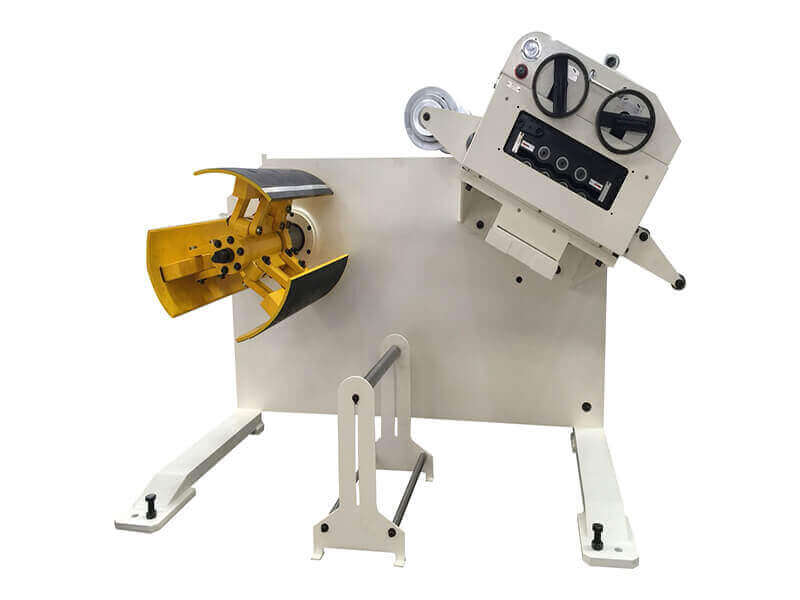

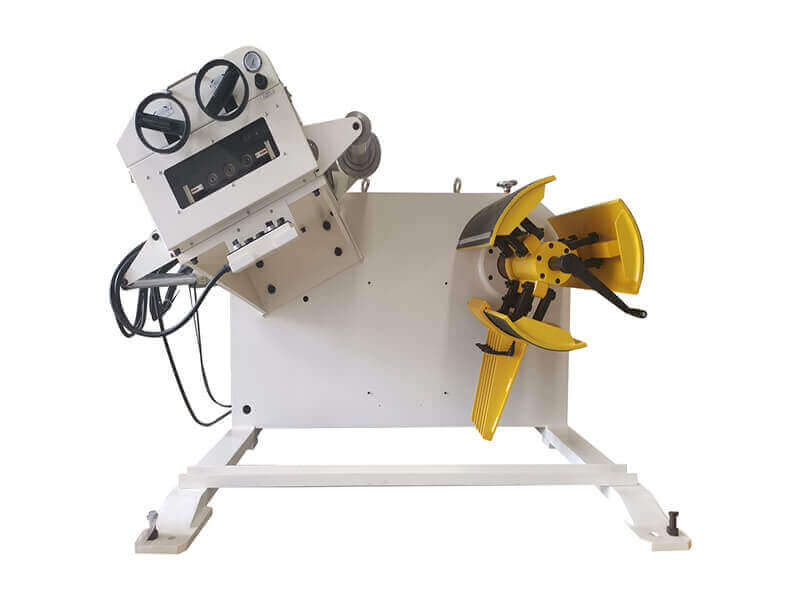

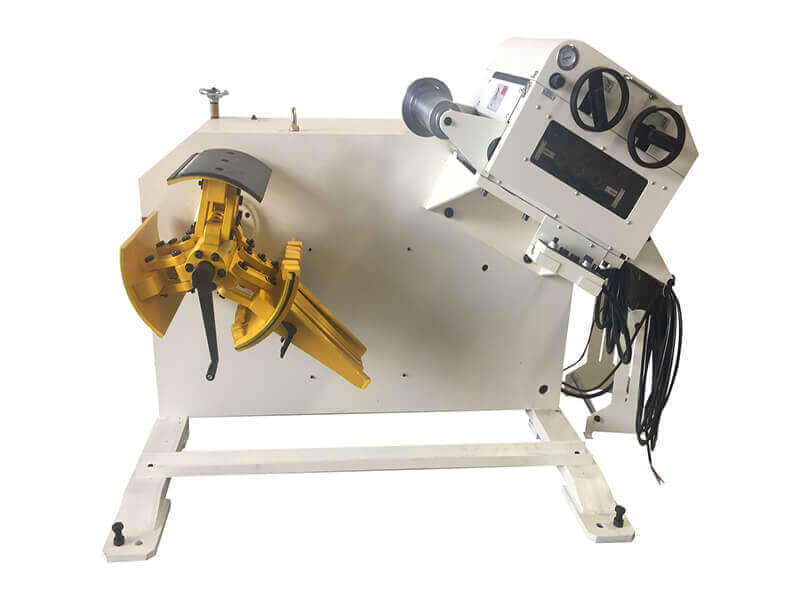

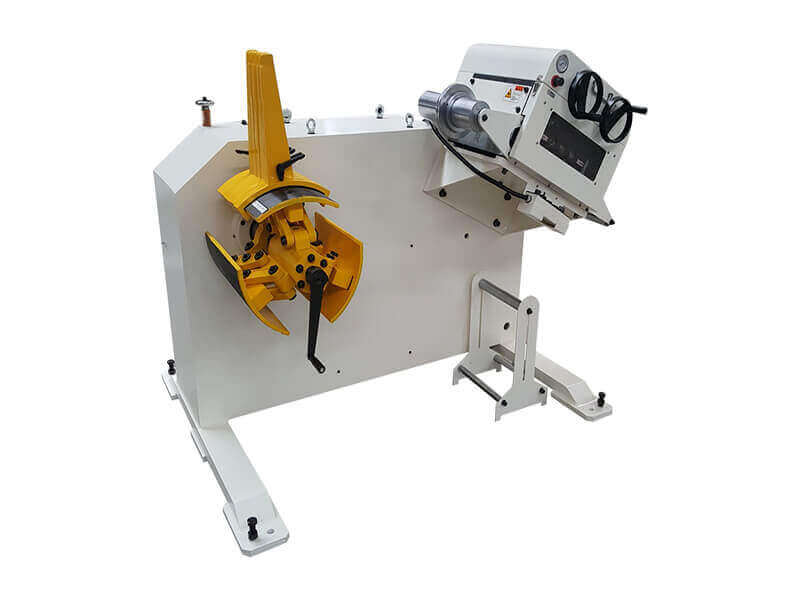

Combined Decoiler Straightener (0.3-3.2mm)

Combined Decoiler Straightener (0.3-3.2mm)

Applicable Material

Raw Material Type: Hot-Rolled Metal steel, Cold-Rolled Metal steel, Galvanized Metal steel ,Stainless Steel etc.

Coil Width: 100-600 mm

Material Thickness: 0.3-3.2 mm

Coil Weight: 2000kgs

Inner Diameter: 450-530mm

Outer Diameter: 1200mm

Speed: 16m/min

technical consultation

Video

Brief Profile

Combo uncoiler straightener machine is a material handling machine located at the beginning of a process line used to hold and safely pay off or uncoil the steel strip and leveling it. It uncoils from the coil and leveling to send the steel strip for processing such as slitting, roll forming and pressing.

It can uncoiling and straightening the metal sheet coil from width 100-600mm, and thickness from 0.3-3.2mm, coil weight from 100kgs to 2000kgs.

It’s suitable for hardware stamping, electrical products, computer shell and so on.

With pneumatic pressure on upper and lower straightener roller distance adjusting and worm gear adjusting, it can achieve precision straightening performance for many different kind of metal sheet material.

Application

Decoiler straightener can be found in many different stamping product line such as hardware stamping line, saw blade stamping line, knives pressing line, motorcycle parts stamping line, car license plate stamping line, small auto parts stamping line, computer and electronic components stamping lines etc.

The configuration of metal sheet stamping line

Step-1: Decoiler straightener machine, Loading coil and uncoilling coil and straigthening the Coil strips.

Step-2: NC Servo Roll Feeder machine, Feed coil strips to press machine.

Step-3: Power pres machine with the moulds,pressing to the end product

Features

1. There are 3 leaves on the mandrel for expansion.

2. Pressing arm can be added according to specification.

3. Japan magnetic contactor and electronic components prolong service life;

4. Frequency conversion speed control can be chose, the use effect is better.

5. Leveler inclines appropriately to reduce feeding loop distance.

6. Adopt one point down pressure device, exclusive design, can adjust the flat point more quickly and accurately, the operation is convenient, different from the traditional four point adjustment.

7. Simple maintenance and management, good safety and low cost;

Main Parts

Decoiler Parts

The motor control cabinet of the material combined decoiler straightener are relatively independent,also they use their own frequency converter,that means it could take more effectively protecting the machine to make sure there will not distorted when it subjected to other external forces.

The drive system of the straightening machine are universal joint and gear transmission,that could effectively avoid the material’s damage from passive wheel rotation.

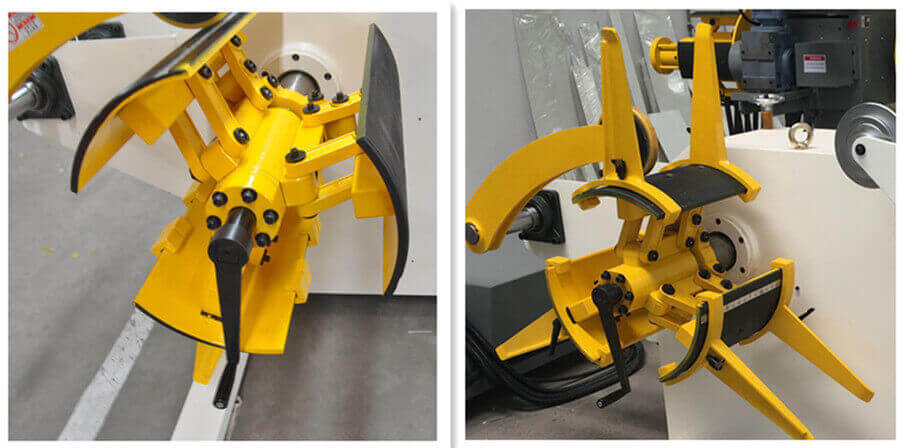

Mandrel Expansion With Leaves A type Keep-off Frame and Pressure Arm

Combined Decoiler Straightener (0.3-3.2mm)(图1)

High Precision Straightening Parts

The roller is made of solid bearing steel. After heat treatment, hard chrome plating and re-grinding, it has high hardness, good abrasion resistance and long uselife.

Roller leveling and feeding machine are placed on the same horizontal platform, which can reduce the feed machine and leveling error to meet the need of high precision.

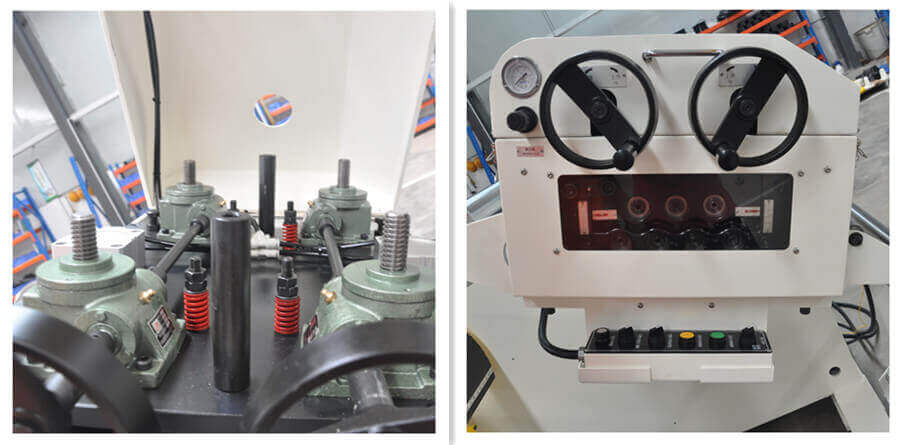

One point down pressure device Worm gear adjusting

Combined Decoiler Straightener (0.3-3.2mm)(图1)

Basic Parameter

Model	GL-200	GL-300	GL-400	GL-500	GL-600
Max coil width	200mm	300mm	400mm	500mm	600mm
Coil thickness	0.3-3.2mm
Coil inner diameter	460-520mm
Coil outer diameter	1200mm
Loading capacity	800kg	1000kg	1500kg	2000kg	2000kg
Expansion style	Manual Expansion
Straightener roller	Ø48mm*7pcs
Uncoiler Motor	without
Straightener Motor	1HP	1HP	2HP	2HP	2HP
Roller pressing way	Pneumatic rod
Roller adsjuting way	Eccentric turbine worm adjusting
Inverter	Delta,Taiwan
Feeding speed	16m/min
Pressing arm	Optional
