Video

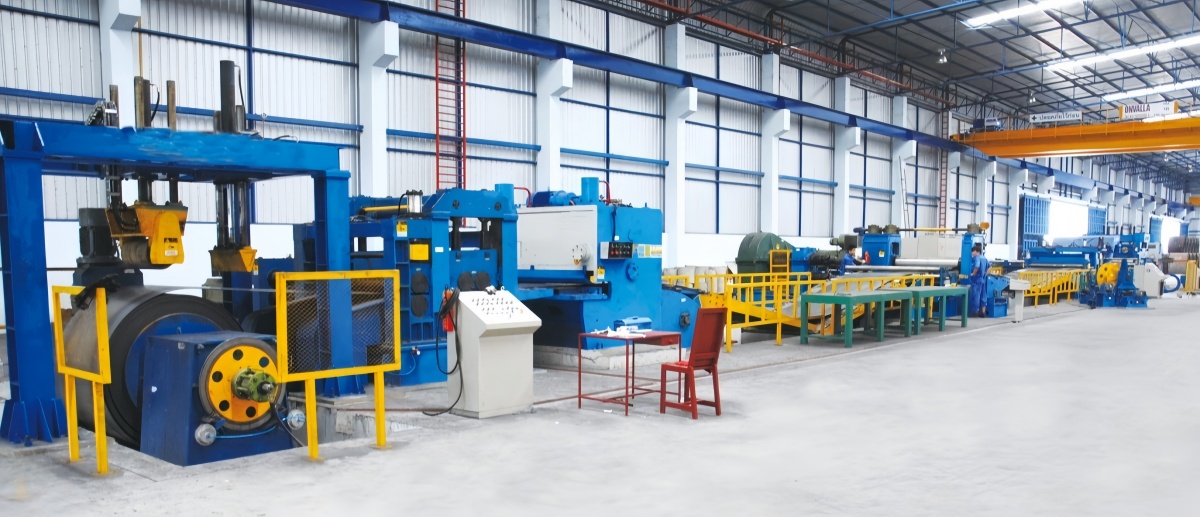

Metal Coil Leveling Line Picture

Introduction

A Metal Coil Leveling Line is a specialized production line designed to process metal coils. Its primary function is to improve the flatness of metal sheets, eliminating defects such as curling and waviness. This enhances the material's processability and surface quality, making it suitable for a wide range of applications.

Metal Coil Leveling Line(图1)

Metal Coil Leveling Line Main Functions And Working Principle

Main Functions

1.Leveling: The core function of the leveling line is to flatten metal sheets. This is achieved by passing the metal through a series of leveling rolls that apply pressure and bending forces to correct any distortions.

2.Cutting: Many leveling lines are equipped with cutting devices that can shear the flattened metal sheets to specific lengths or widths.

3.Recoiling or Stacking: After leveling and cutting, the metal sheets can be recoiled or stacked for further processing or storage.

Working Principle

1.Uncoiling: The metal coil is first unrolled by an uncoiling unit. Tension control systems are typically used to ensure the metal sheet maintains the appropriate tension during the leveling process.

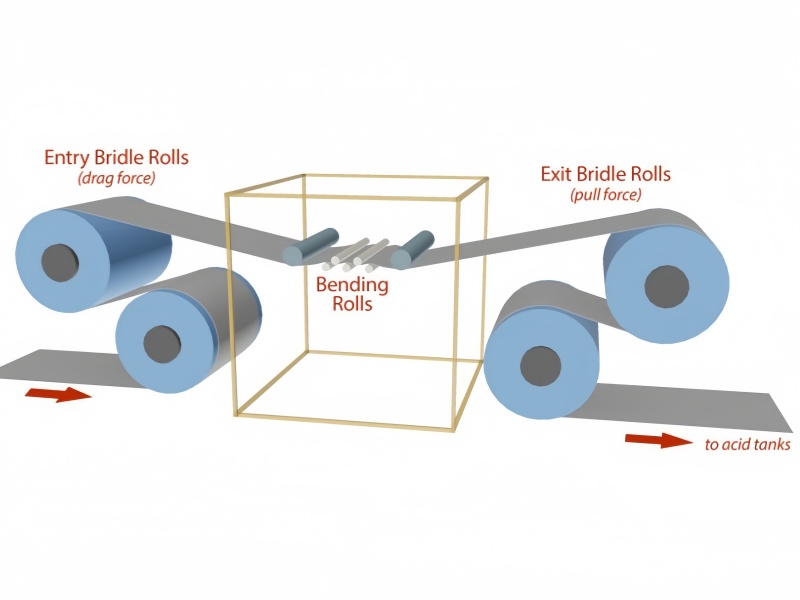

2.Leveling Process: The metal sheet passes through a leveling machine, which contains multiple sets of leveling rolls. By adjusting the spacing and pressure of these rolls, the machine can correct the shape of the metal sheet.

3.Cutting: If required, the leveled metal sheet is then cut by a shearing machine. Different types of cutting methods, such as flying shears or disc shears, can be employed.

4.Stacking or Recoiling: The final product can be stacked or recoiled, depending on the subsequent processing needs.

Metal Coil Leveling Line(图1)

Metal Coil Leveling Line Applications

Applications

1.Metal Processing Industry: The leveling line is widely used for processing various types of metal sheets, including cold-rolled and hot-rolled carbon steel, stainless steel, and galvanized sheets.

2.Automotive Manufacturing: It provides high-quality, flat metal sheets for the production of automotive parts.

3.Construction Industry: It is used to produce metal sheets for building materials.

4.Appliance Manufacturing: It supplies flat metal sheets for manufacturing appliance casings and other components.

Equipment Features

1.High-Precision Leveling: Equipped with high-precision leveling rolls and control systems, the leveling line can effectively remove waviness and curling from metal sheets.

2.High-Speed Production: Some leveling lines can operate at speeds of tens of meters per minute, meeting the demands of large-scale production.

3.Customizable Configuration: Depending on specific production requirements, different leveling methods (such as roll leveling or stretch leveling) and cutting and stacking devices can be selected.

Metal Coil Leveling Line(图1)
