1.Name:Polyurethane Sandwich Panel Profile Roll Forming Machine

2.Application: Making sandwich board

3.It can custom-design


technical consultation

Video

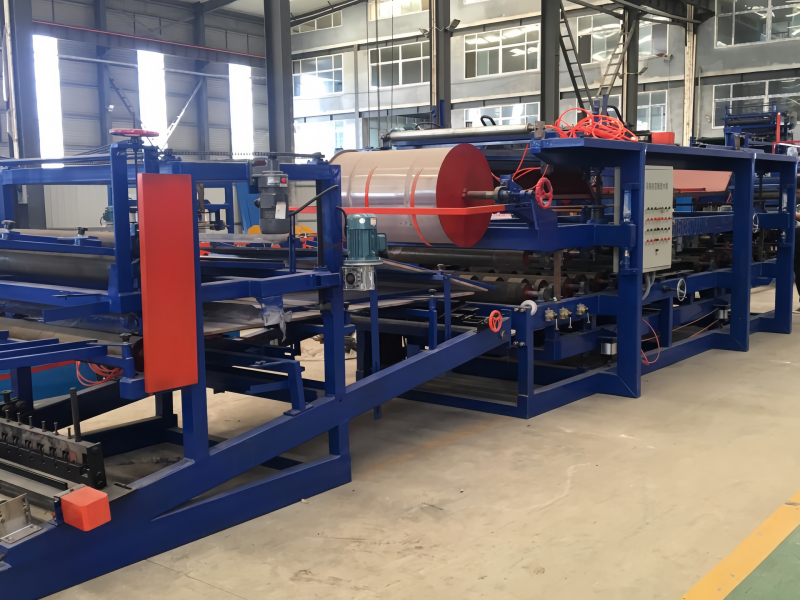

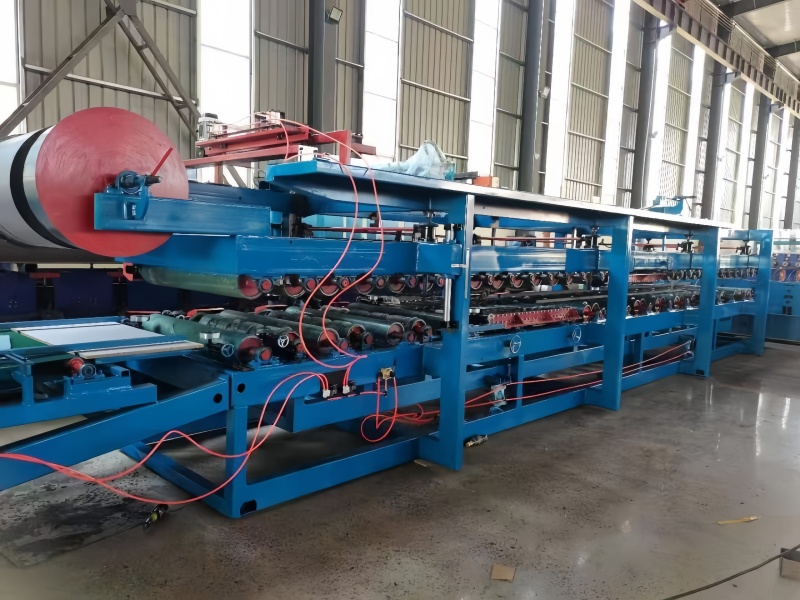

Polyurethane Sandwich Panel Profile Roll Forming Machine Picture

A Polyurethane Sandwich Panel Profile Roll Forming Machine is a specialized piece of equipment used to manufacture polyurethane (PU) sandwich panels in a continuous process. These panels are widely used in construction for their excellent insulation, soundproofing, and fire-resistant properties.

Polyurethane Sandwich Panel Profile Roll Forming Machine(图1)



Key Components and Workflow

Below is a detailed description of the machine and its features:

Key Components and Workflow

1.Uncoiling System: The machine starts with an uncoiling unit that feeds metal sheets from coils.

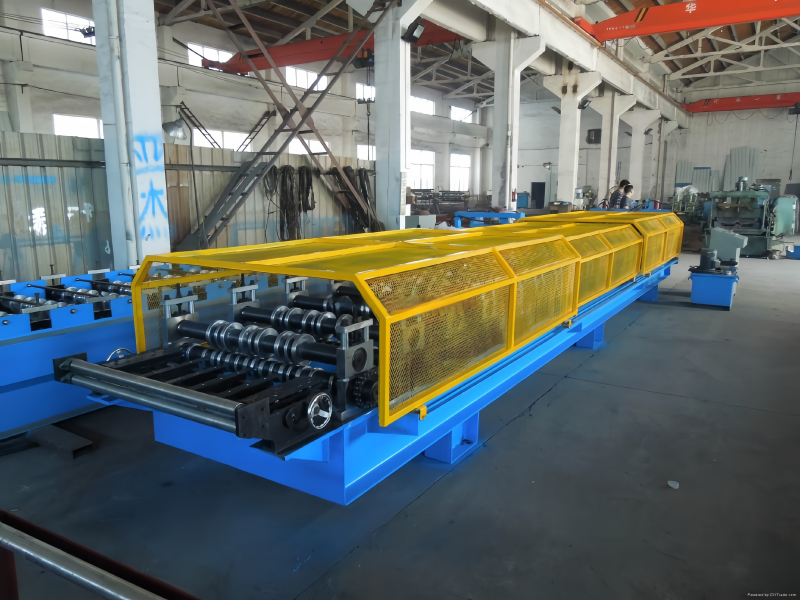

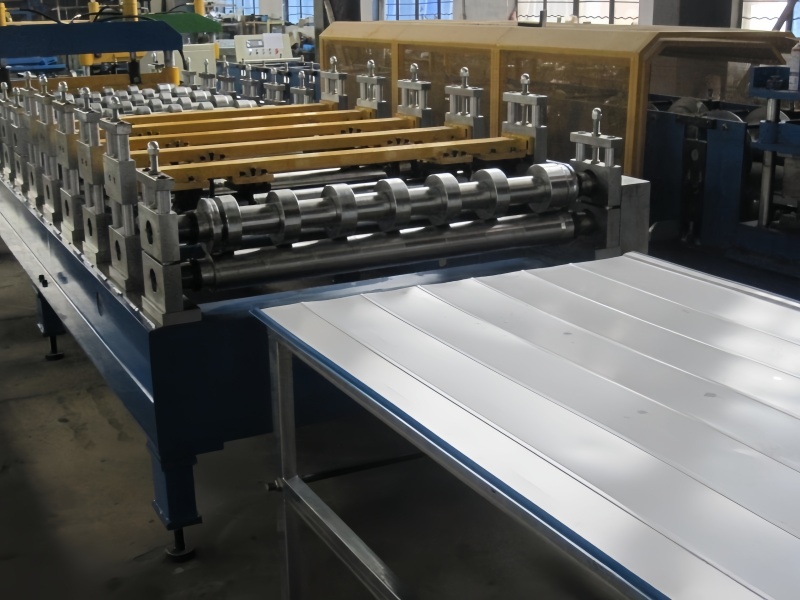

2.Roll Forming Machine: This section shapes the metal sheets into the desired profiles through a series of rollers.

3.Preheating and Glue Coating: The shaped metal sheets are preheated and coated with adhesive in preparation for the sandwiching process.

4.Foaming and Solidification: Polyurethane foam is injected between the metal sheets. The high-pressure foaming system ensures precise measurement and even distribution, contributing to the panel's insulation properties.

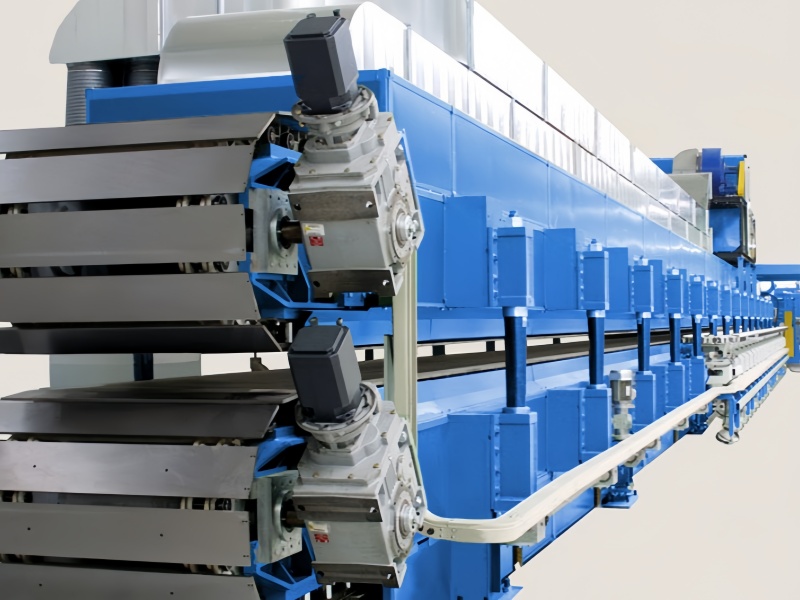

5.Double Belt Conveyor: This system ensures the panels have a flat surface, even thickness, and are free from deformation.

6.Cutting and Packaging: The panels are cut to the required lengths and then stacked and packaged for storage or transport.


Polyurethane Sandwich Panel Profile Roll Forming Machine(图1)


Features and Advantages

Polyurethane Sandwich Panel Profile Roll Forming Machine(图1)


Features and Advantages

1.High-Quality Panels: The machine produces panels with excellent insulation, soundproofing, and fire-retardant properties.

2.Environmentally Friendly: The use of 141B or cyclopentane as a blowing agent instead of CFC makes the production process environmentally friendly.

3.User-Friendly Design: The machine features a user-friendly design with an HMI (Human-Machine Interface) and PLC (Programmable Logic Controller) for easy operation.

4.Energy Efficiency: The heating system is designed to heat only the chain plate surface, saving energy and protecting the machine's components.

5.Precision and Durability: The hydraulic system ensures precise panel thickness adjustment, while the high-strength weather-resistant steel chain plate and box-shaped structure provide durability.

Applications

Polyurethane sandwich panels produced by this machine are widely used in various construction applications, including:

1. Walls and Roofs: For buildings requiring high insulation and fire resistance.

2. Cold Rooms and Freezers: Due to their excellent thermal insulation properties.

3. Industrial Buildings: For their durability and resistance to wear and tear.


Technical Specifications


Technical Specifications

1. Production Speed: Up to 4000mm/min.

2. Panel Thickness: 50-250mm.

3. Annual Production Capacity: Up to 600,000 square meters.

4. Power Requirement: 380V/50-60Hz.


Conclusion

The Polyurethane Sandwich Panel Profile Roll Forming Machine is a highly efficient and versatile piece of equipment suitable for modern construction needs. It combines advanced technology with user-friendly design to produce high-quality sandwich panels for a variety of applications.


Polyurethane Sandwich Panel Profile Roll Forming Machine(图1)
