Venturi dust collector is a device which makes dust-containing gas contact with liquid (half water), uses inertial collision of water droplets and particles and other functions to capture particles; it is composed of water storage tank, dust collection pipeline, dust chamber, dust removal fan, dust removal pump, mud removal system, dust collecting hopper, cyclone separator, maintenance platform, spray system, explosion-proof window.

technical consultation

Video

Brief Profile

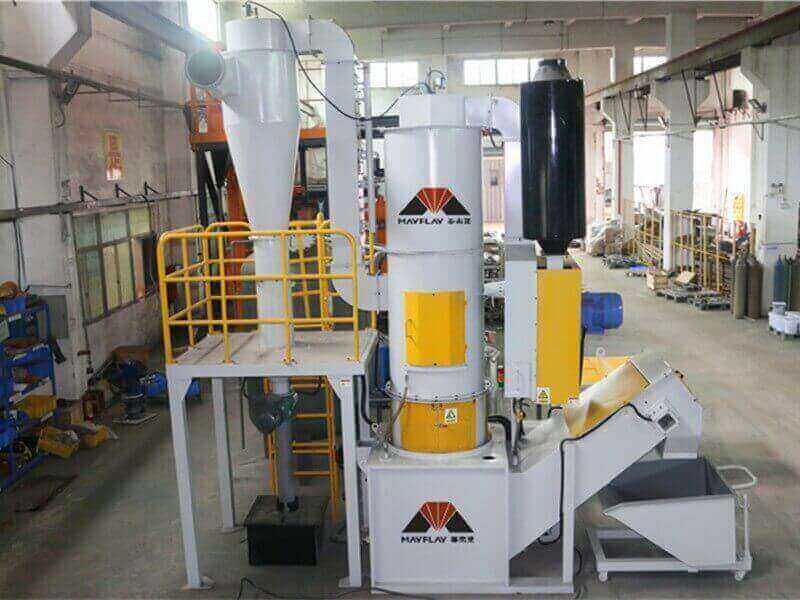

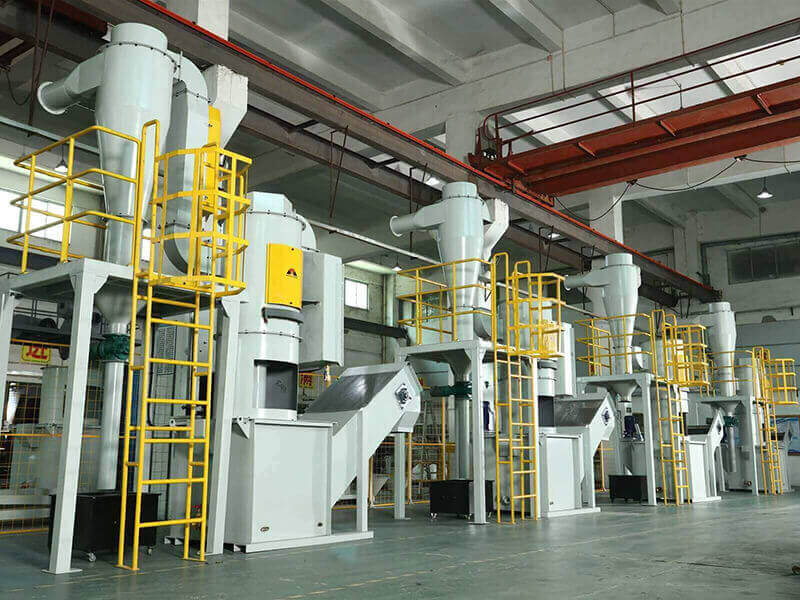

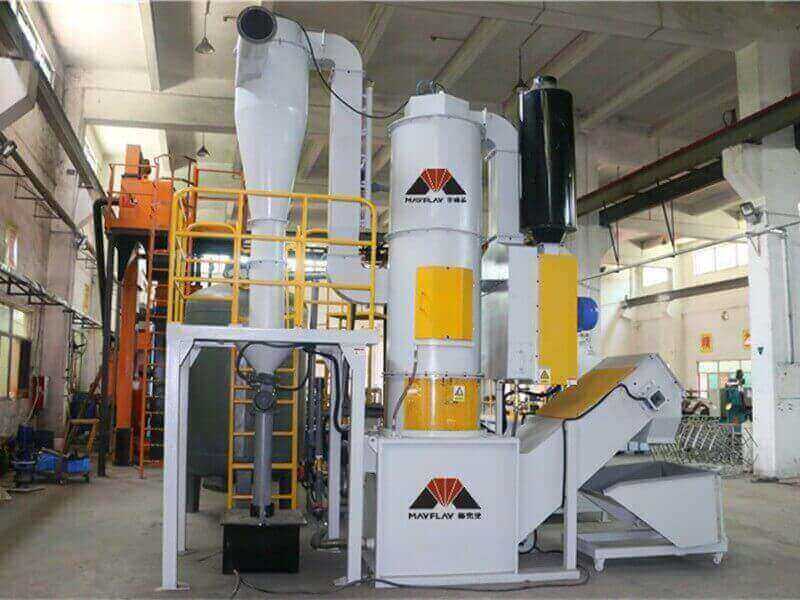

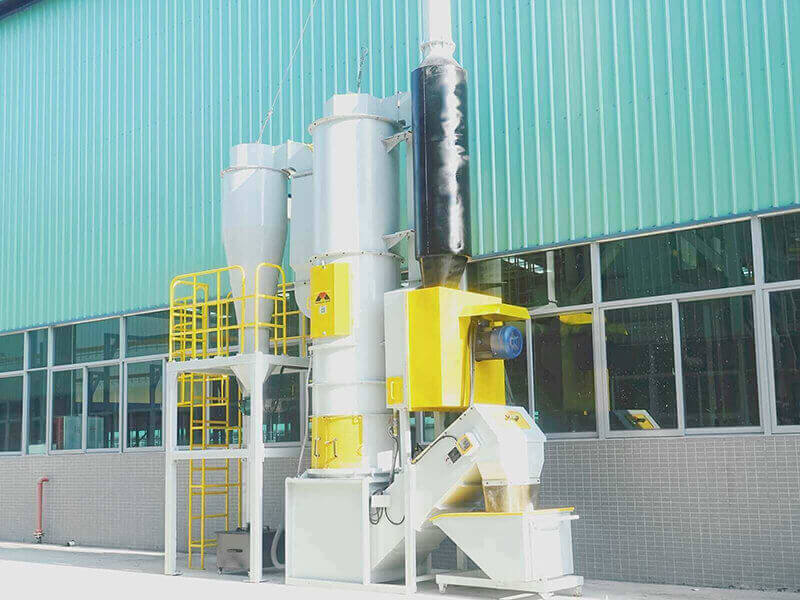

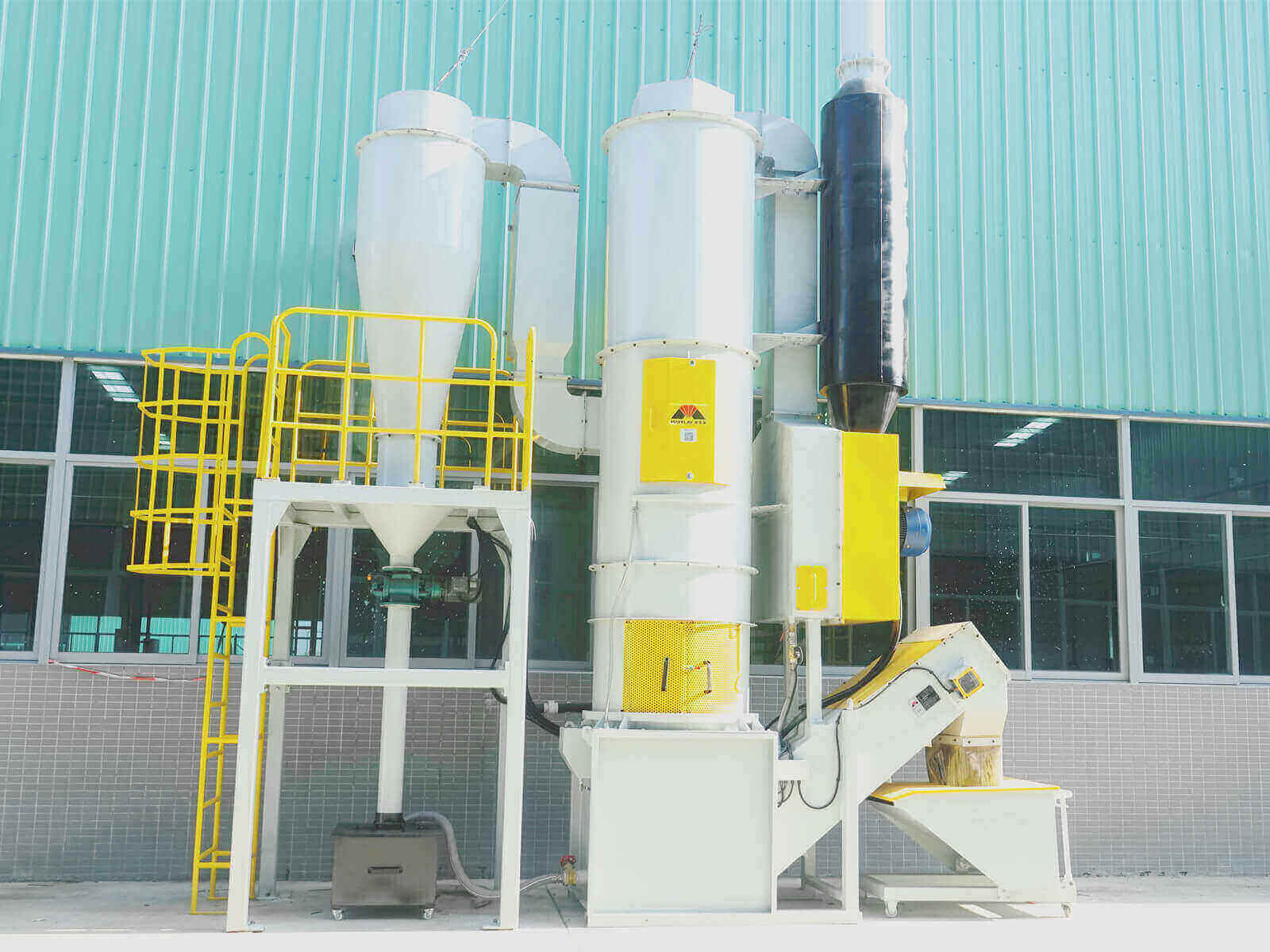

Venturi dust collector is a device which makes dust-containing gas contact with liquid (half water), uses inertial collision of water droplets and particles and other functions to capture particles; it is composed of water storage tank, dust collection pipeline, dust chamber, dust removal fan, dust removal pump, mud removal system, dust collecting hopper, cyclone separator, maintenance platform, spray system, explosion-proof window. The ports and other parts are made up of explosion-proof motors, which have remarkable improvement in performance. It can not only meet the dust removal effect with high efficiency, but also effectively control and reasonably remove the hidden safety problems, so that the safety performance is greatly improved with the dry dust collector.


Wet type dust collector is a device which makes dust-containing gas contact with liquid (half water), uses inertial collision of water droplets and particles and other functions to capture particles; it is composed of water storage tank, dust collection pipeline, dust chamber, dust removal fan, dust removal pump, mud removal system, dust collecting hopper, cyclone separator, maintenance platform, spray system, explosion-proof window. The ports and other parts are made up of explosion-proof motors, which have remarkable improvement in performance. It can not only meet the dust removal effect with high efficiency, but also effectively control and reasonably remove the hidden safety problems, so that the safety performance is greatly improved with the dry dust collector.


The fan is coordinated with pump in water dust collector, forming a water curtain in venturi port. Dusty air passes through the venturi at a high speed, and collides with the water curtain after atomization. The atomizing water droplets will be wrapped in dust, enter into cyclone separator. Clean air is discharged into the air by the cyclone centrifugal force, and water with dust discharged into the sedimentation tank. Precipitated water is recycled and precipitated mud is cleaned nto the trolley by the scraper mechanism.



Application

All kinds of industrial dust, washing and purification of harmful gases such as organic odor, absorption and purification of acid and alkali waste gas, flue gas desulfurization of boilers, die casting machine, central furnace, incinerator, chemical pharmaceuticals, food processing, gold treatment, casting, carbon materials, mechanical processing, building materials, tablet press, granulator, mixer, ingredients, mixer, vibrating screen and other industries.


  • More safe and reliable,explosion-proof;

  • Adopt advanced Venturi structure, more environmentally friendly;

  • Adopt cyclone separation system;

  • The dust emission is less than 20mg/m3, and the environmental protection index meets the European standard;

  • The system has a wind pressure alarm device;

  • Integrated design, maintainability increased by 95%;

  • There are no vulnerable spare parts in the whole machine;


Wet Dust Collector(图1)

Basic Parameter

Machine Model
MWDC-80
MWDC-80F
MWDC-100
MWDC-180
Application
Equipped with shot blasting machine
Air Volume(CFM)
≤5000
≤9000
≤20000
Air pressure(Mpa)
≤6800
≤7000
Dust Emissions(mg/m3)
≤30
Fan Power (kw)
11KW
11KW
22KW
55KW
Scraping motor (kw)
0.37KW
Water Pump Motor (kw)
3KW
5.5KW
7.5KW
11KW*2
Total Power  (kw)
15.12KW
17.62KW
30.62KW
78.87KW
Total weigh(ton)
2.7T
4.05T
9.2T
Equipment Dimension
(Length*Windth*Height) (mm)
4955*2870*4320
5206*2872*5424
8387*5085*6416
