What We Do Series---Rotary Turntable Shot Blasting Machine

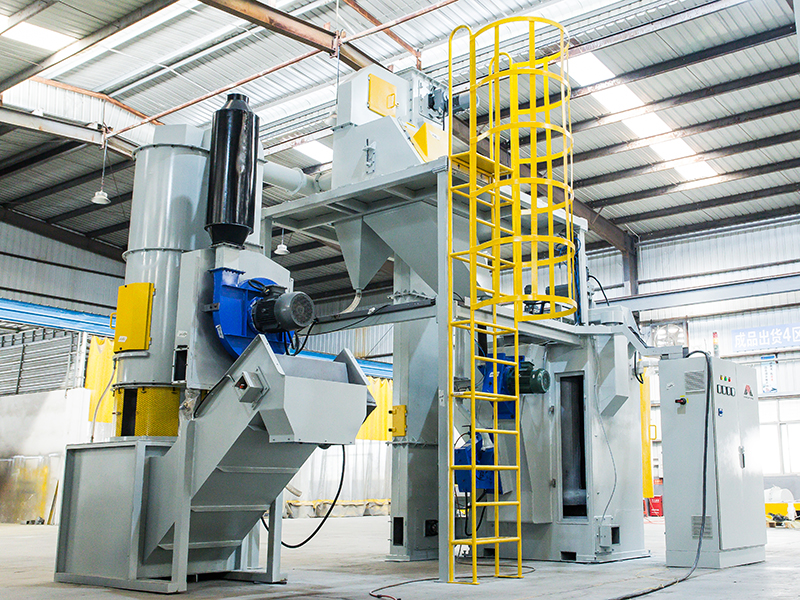

MIZHI manufactures single-turntable and double-turntable version rotary table shot blasting machine, and both work with the main turntable. Hangers can be equipped on both single-turntable and double-turntable version to have easier and more thorough shot blasting work for hanging work pieces.

Multiple working stations can be designed on the main turntable to allow work pieces loading when at the same time other work pieces are in the blasting process to save time of working. This machine is an ideal solution for symmetric parts and the turntable can be programmed to stay at specific position to work with specific blasting wheel to have thorough surface cleaning of dissymmetric parts.

MIZHI rotary table shot blasting machine can handle work piece at max. weight 50KG for double-turntable version and up to 2000KG for single-turntable version and the maximum weight can be even higher. Work pieces are either loaded as a large single component for processing or hung on specific hanger on the turntable and rotated to the working stations for blasting process. It is usually used for medium casting and forgings, valves and petroleum drill etc.

What We Do Series---Rotary Turntable Shot Blasting Machine(图1)

Our Advantages

l Options of turntable & Compact design

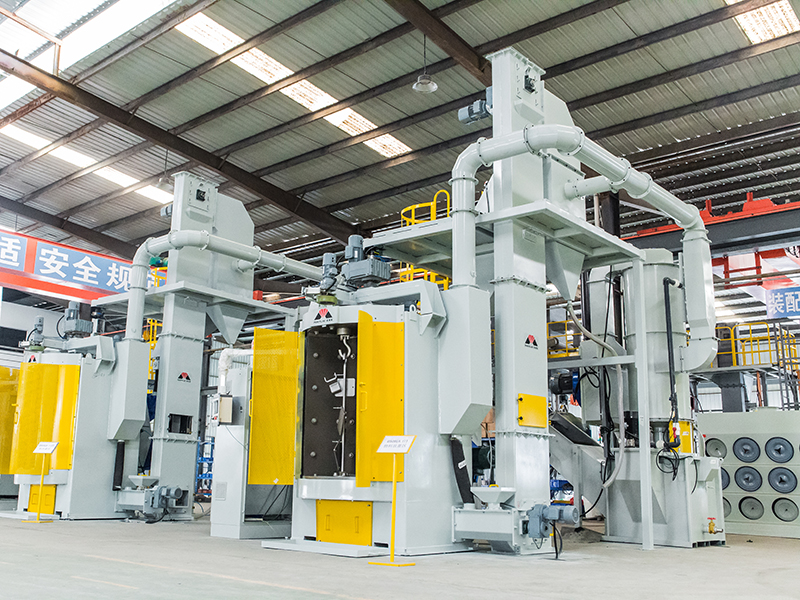

Single-turntable version and double-turntable version are available for different shot blasting tasks and work pieces.

Ultimately compact and smart design and small floor space occupation.

What We Do Series---Rotary Turntable Shot Blasting Machine(图2)

l All-around capability

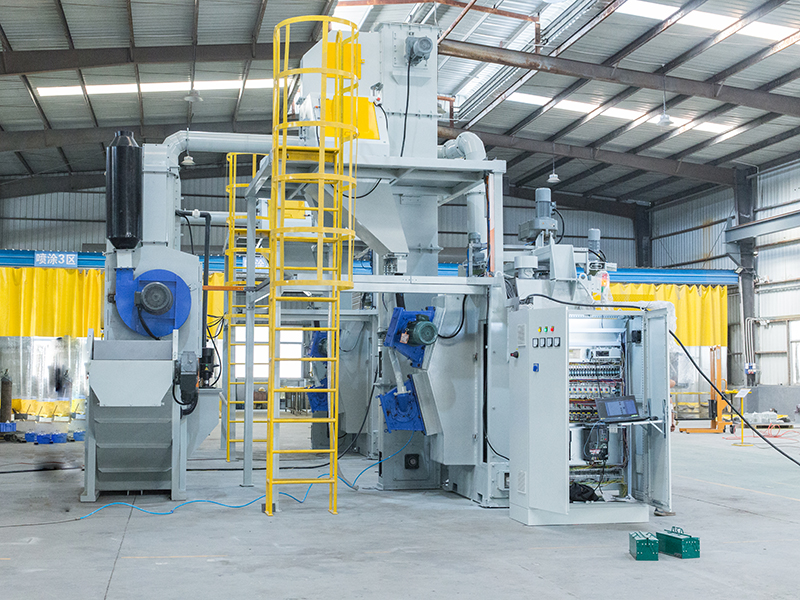

A wide variety of different work pieces can be processed on the turntable, from sturdy components in different shapes and sizes to very delicate, fragile parts. Easy integration into complete manufacturing lines and the possibility of automated part loading and unloading make the MIZHI rotary table shot blasting machine a truly all-around shot blasting system.

l Time-saving and smart blasting

Multiple working stations can be designed on the main turntable to allow work pieces loading when at the same time other work pieces are in the blasting process to save time of working. The turntable can be programmed to stay at specific position to work with specific blasting wheel to have thorough surface cleaning of dissymmetric parts.

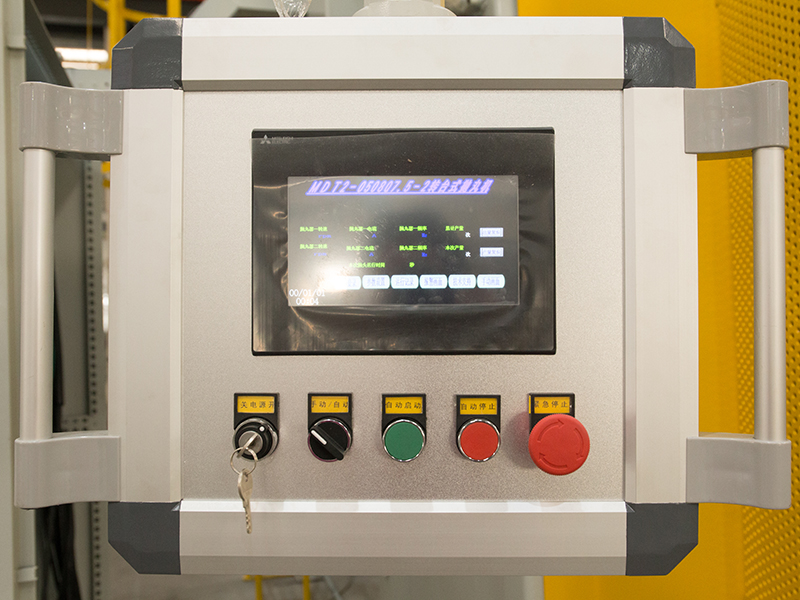

l Programmable Logic Controller

Much shorter time of parameter configuration, much less working hours of operator and high efficiency because all process parameters of work pieces blasting can be configured and saved in PLC control unit without unnecessary repeat input & repeat pressing different buttons.

Smart communication with built-in 3D guiding technology UI and 7 Inch colorful touch screen for safe operation, easy maintenance.

What We Do Series---Rotary Turntable Shot Blasting Machine(图3)

What We Do Series---Rotary Turntable Shot Blasting Machine(图1)

l Reliable quality & customizable size

Shot blasting chamber is completely engineered of manganese steel plates with thickness between 6 and 10 mm and welded in one piece, making the machines extremely tight and sturdy. For optimum wear protection, the area exposed to the blast stream is lined with replaceable protective manganese steel plates. These overlapping liners are not bolted on but hung with a special system.

Different design configurations and capacity sizes are available for low and high work piece requirements. Size, number and power of blasting wheel vary considerably depending on work pieces as well as the expected result and efficiency.

l Environment protection

We adopt high-end methods to reduce noise to 85DB and dust emission concentration to less than 50mg/m3 (these results can be even better with higher standard of configurations).

What We Do Series---Rotary Turntable Shot Blasting Machine(图2)

Range of application

The MIZHI rotary table shot blasting machines are highly flexible systems that can be applied in many applications such as de-scaling, de-sanding, rust removal, paint stripping for flammable and explosive parts, perforated parts, gears, medium casting and forgings, valves and petroleum drill etc.

What We Do Series---Rotary Turntable Shot Blasting Machine(图3)

For any interest and demands, please kindly contact us and we will provide the suitable and cost-effective solutions for you, Warmly welcome to inquiry!

www.szmizhi.com

Email: info@MIZHI.com
