Adjustable - Speed Roller Conveyor Shot Blasting Machine for Different Workpiece Speeds
Adjustable - Speed Roller Conveyor Shot Blasting Machine for Different Workpiece Speeds
In the diverse landscape of industrial manufacturing, workpieces come in a multitude of shapes, sizes, materials, and surface treatment requirements. This diversity necessitates a flexible and adaptable solution for shot blasting, a crucial process for cleaning, descaling, and enhancing the surface quality of components. The adjustable - speed roller conveyor shot blasting machine emerges as an innovative and highly practical equipment designed to meet these varied needs by allowing precise control over the speed at which workpieces are conveyed through the blasting chamber. This unique feature not only improves the efficiency and effectiveness of the shot blasting process but also broadens the machine's applicability across a wide range of industries and manufacturing scenarios.
Design and Construction Features
Roller Conveyor System

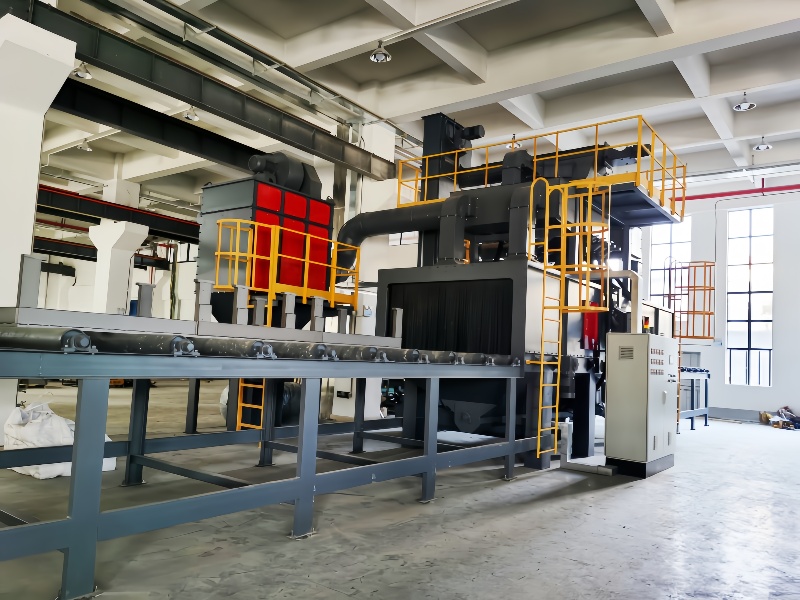

The foundation of the adjustable - speed roller conveyor shot blasting machine is its robust roller conveyor system. Comprising a series of parallel rollers, this system is engineered to support and transport workpieces smoothly through the blasting chamber. The rollers are typically constructed from high - strength steel or other durable materials capable of withstanding the impact of shot media and the weight of various workpieces. Their surfaces may be coated with wear - resistant materials or textures to prevent workpieces from slipping during transit.
The spacing between the rollers is carefully designed to accommodate different workpiece sizes. For smaller components, closer - spaced rollers ensure stable support, while wider spacing can be utilized for larger workpieces. This flexibility allows the machine to handle a diverse range of products, from small metal parts like gears and fasteners to larger items such as metal plates and structural beams. The rollers are driven by a powerful motor - gearbox combination, which enables the adjustment of the conveyor speed according to the specific requirements of each workpiece.
Blasting Chamber
The blasting chamber of the adjustable - speed roller conveyor shot blasting machine is a sealed, enclosed structure designed to contain the high - velocity shot media during the blasting process. Constructed from thick, sturdy steel plates, it provides a durable and reliable housing for the operation. The interior of the chamber is often lined with wear - resistant materials, such as manganese steel or specialized rubber liners, to protect the chamber walls from the erosive effects of the shot media.
Inside the chamber, multiple blasting wheels are strategically positioned above and below the roller conveyor. These wheels are the key components responsible for accelerating the shot media to high speeds and propelling it towards the workpieces. The number and arrangement of the blasting wheels vary depending on the size and capacity of the machine, as well as the complexity of the surface treatment required. For workpieces with intricate shapes or hard - to - reach areas, additional blasting wheels may be installed to ensure comprehensive coverage and uniform treatment.
Speed Adjustment Mechanism
The most distinctive feature of this machine is its advanced speed adjustment mechanism. This mechanism typically consists of a variable - frequency drive (VFD) system that controls the rotational speed of the motor powering the roller conveyor. The VFD allows operators to precisely adjust the speed of the conveyor within a wide range, from very slow speeds suitable for delicate or complex workpieces to faster speeds for high - volume, less intricate components.
In addition to the VFD, the machine may also be equipped with a control panel that provides intuitive interfaces for setting and monitoring the conveyor speed. Some modern models incorporate digital displays and touch - screen controls, enabling operators to input specific speed values or select pre - programmed speed settings for different types of workpieces. Sensors are often integrated into the system to monitor the actual speed of the conveyor in real - time, ensuring accurate control and adjustment as needed.
Operational Principles and Benefits
Customized Treatment for Different Workpieces
The ability to adjust the conveyor speed offers significant advantages in providing customized surface treatment for different workpieces. For workpieces made of softer materials or those with delicate surface finishes, a slower conveyor speed can be selected. This allows the shot media to impact the workpiece gently, preventing damage while still effectively removing contaminants and achieving the desired surface finish. For example, aluminum components used in the automotive or aerospace industries, which are prone to scratching and deformation, can be processed at a slow speed to ensure their integrity.
Conversely, for harder and more robust workpieces, such as heavy - duty steel structural parts, a higher conveyor speed can be employed. The increased speed enables a faster throughput of workpieces, reducing the overall processing time without sacrificing the quality of the surface treatment. The shot media can still effectively blast away rust, scale, and other impurities, preparing the workpiece for subsequent manufacturing processes like painting, welding, or coating.
Improved Efficiency and Productivity
By optimizing the conveyor speed for each type of workpiece, the adjustable - speed roller conveyor shot blasting machine significantly improves the overall efficiency and productivity of the manufacturing process. Instead of using a one - size - fits - all approach, manufacturers can tailor the blasting process to the specific characteristics of their workpieces. This reduces the time wasted on over - processing or under - processing workpieces, minimizing rework and scrap rates.
In high - volume production environments, where large quantities of workpieces need to be processed quickly, the ability to increase the conveyor speed for suitable components allows for a higher throughput. This means that more workpieces can be treated in a given time frame, boosting the production capacity of the manufacturing line. Moreover, the seamless integration of the adjustable - speed feature with the rest of the production process ensures smooth workflow and reduces bottlenecks.
Cost - Savings and Versatility
The adjustable - speed roller conveyor shot blasting machine also offers substantial cost - savings benefits. By reducing the amount of time and resources spent on processing each workpiece, manufacturers can lower their operational costs. The minimized rework and scrap rates mean less waste of materials and labor, contributing to overall cost - efficiency. Additionally, the machine's versatility in handling different types of workpieces eliminates the need for multiple specialized shot blasting machines, reducing capital investment and equipment maintenance costs.
This versatility makes the machine a valuable asset across various industries. In the metal fabrication industry, it can handle everything from small, precision - cut metal parts to large, rough - cut plates. In the automotive industry, it can be used for treating engine components, chassis parts, and body panels of different materials and sizes. The ability to adapt to different workpiece speeds and requirements makes it a flexible solution that can meet the evolving needs of modern manufacturing.
Applications in Multiple Industries
Metal Fabrication Industry
In the metal fabrication industry, where a wide variety of metal components are produced, the adjustable - speed roller conveyor shot blasting machine is an essential tool. It can be used to clean and prepare metal sheets, bars, and profiles before further processing such as bending, cutting, or welding. For thin - gauge metal sheets, a slow conveyor speed can be used to avoid damage during the blasting process, ensuring a smooth and consistent surface finish. For thick - walled pipes and heavy - duty structural beams, a faster speed can be applied to quickly remove rust, mill scale, and other contaminants, accelerating the production process.
The machine is also useful for post - fabrication surface treatment. After components are fabricated, they may have burrs, weld spatter, or other surface imperfections. The adjustable - speed feature allows for precise control over the blasting process to remove these defects without affecting the integrity of the fabricated parts, preparing them for painting, powder coating, or other finishing operations.
Automotive Industry
The automotive industry relies on the adjustable - speed roller conveyor shot blasting machine for the surface treatment of numerous components. Engine parts, such as cylinder blocks, heads, and crankshafts, require thorough cleaning and descaling to ensure proper engine performance and longevity. The ability to adjust the conveyor speed ensures that these delicate and precision - engineered components are treated gently yet effectively.
Body panels, which are made of various materials including steel, aluminum, and composite materials, also need to be prepared for painting and assembly. The adjustable - speed feature enables the machine to handle the different surface treatment requirements of these materials, ensuring a high - quality finish that enhances the aesthetic appeal and corrosion resistance of the vehicle. Additionally, chassis components, such as frames and axles, can be processed at a faster speed to meet the high - volume production demands of the automotive industry.
Construction Industry
In the construction industry, the adjustable - speed roller conveyor shot blasting machine is used for treating large - scale metal components. Steel beams, columns, and plates used in building construction often need to be cleaned and prepared for painting or galvanizing to protect them from corrosion. The machine can handle these large and heavy workpieces, adjusting the conveyor speed according to their size and surface condition.
For example, when treating newly fabricated steel beams, a faster speed can be used to quickly remove mill scale and rust. However, if the beams have complex geometries or require a more detailed surface treatment, the speed can be reduced to ensure that all areas are properly blasted. This flexibility in speed adjustment allows construction companies to improve the quality of their metal components while maintaining efficient production schedules.
Challenges and Future Prospects
Challenges
Despite its many advantages, the adjustable - speed roller conveyor shot blasting machine faces several challenges. One of the main challenges is the complexity of operating and maintaining the speed adjustment mechanism. The variable - frequency drive system and associated control components require trained operators who understand how to properly set and adjust the speed for different workpieces. Any incorrect settings can lead to suboptimal surface treatment results or even damage to the workpieces.
Maintenance of the machine also presents challenges, especially in relation to the roller conveyor system and the blasting wheels. The rollers are subject to wear and tear from the continuous movement of workpieces and the impact of shot media, and they need to be regularly inspected and replaced when necessary. The blasting wheels also require periodic maintenance, including checking for wear, balancing, and replacing worn - out blades. Ensuring proper maintenance of these components is crucial for the machine's performance and longevity but can be time - consuming and costly.
Future Prospects
Looking to the future, the adjustable - speed roller conveyor shot blasting machine is likely to see significant technological advancements. One area of development is the integration of more intelligent control systems. The use of artificial intelligence and machine learning algorithms can enable the machine to automatically detect the type and characteristics of workpieces and adjust the conveyor speed and other blasting parameters accordingly. This would eliminate the need for manual adjustment, reduce the potential for human error, and further improve the efficiency and accuracy of the surface treatment process.
Another potential development is the use of advanced materials and manufacturing techniques for the machine components. For example, the development of self - lubricating and highly wear - resistant materials for the rollers and blasting wheels can extend their lifespan and reduce maintenance requirements. Additionally, the application of additive manufacturing, or 3D printing, technology could allow for the production of custom - designed components that are more efficient and better suited to the specific needs of different manufacturing applications.
In conclusion, the adjustable - speed roller conveyor shot blasting machine is a highly versatile and valuable piece of equipment in modern industrial manufacturing. Its ability to adjust the conveyor speed for different workpieces offers numerous benefits in terms of customized treatment, improved efficiency, cost - savings, and versatility. While it faces some challenges, ongoing technological advancements are expected to further enhance its performance and capabilities, making it an even more essential tool for a wide range of industries in the future.
