Catenary Pass Shot Blasting Machine

1.Name:Catenary Pass Shot Blasting Machine

2.Model:MCT

3.Transport Mode: The Suspension Hooks Passes Continuously

technical consultation

Video

Introduction & Pictures

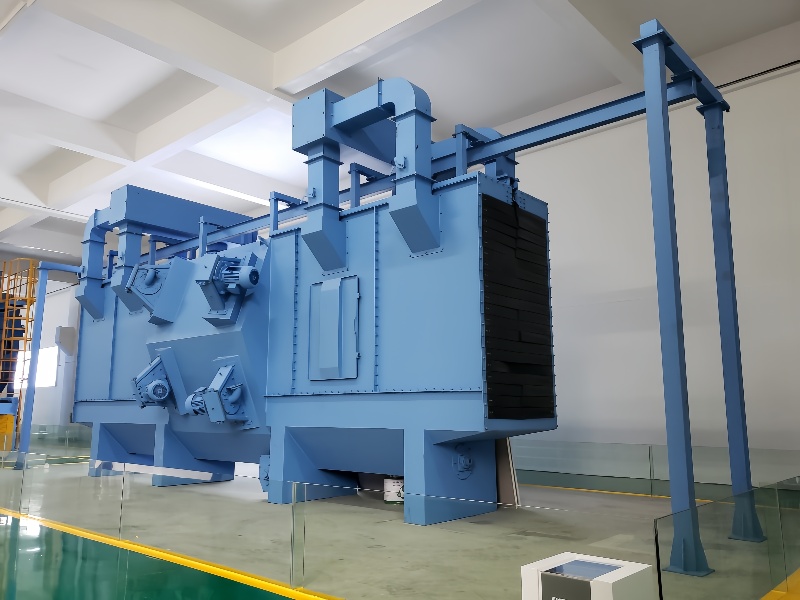

The Catenary Pass Shot Blasting Machine is a highly efficient and versatile piece of industrial equipment designed for surface preparation and cleaning of various metal components. It is widely used in industries such as automotive, machinery manufacturing, steel structures, and casting and forging. This machine is particularly effective for removing rust, scale, and other surface contaminants from metal parts, enhancing their surface quality and preparing them for further processing or finishing.

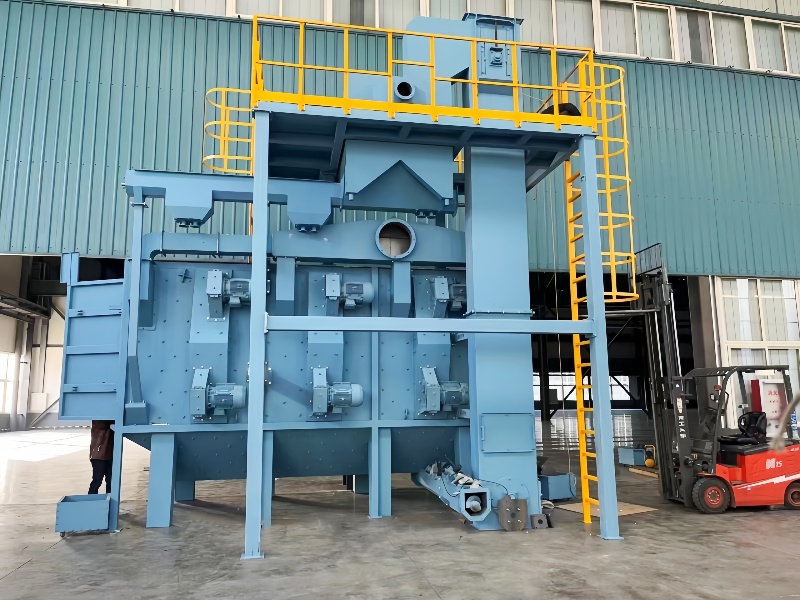

Catenary Pass Shot Blasting Machine(图1)

Functions & Applications

Functions

1.Surface Cleaning: Removes rust, scale, and other impurities from metal surfaces.

2.Surface Strengthening: Improves the fatigue resistance of metal parts through shot peening.

3.Preparation for Coating: Increases the adhesion of paint or other coatings by creating a clean, rough surface.

Applications

The Catenary Pass Shot Blasting Machine is suitable for a wide range of applications, including:

1.Automotive Industry: Cleaning and strengthening of engine parts, cylinder caps, and motor casings.

2.Steel Structures: Surface treatment of large structural components.

3.Casting and Forging: Removing sand, scale, and rust from castings and forgings.

4.Machinery Manufacturing: Preparing parts for painting or other surface treatments.

Advantages

1.High Efficiency: Continuous operation and high production output.

2.Flexibility: Suitable for a wide range of workpiece sizes and shapes.

3.User-Friendly: Easy to operate and adjust.

4.Energy-Efficient: Minimizes energy consumption and reduces maintenance requirements.

5.Durability: Manufactured using high-quality materials and advanced technology.

6.Cost-Effective: Lowers production costs and improves overall efficiency.

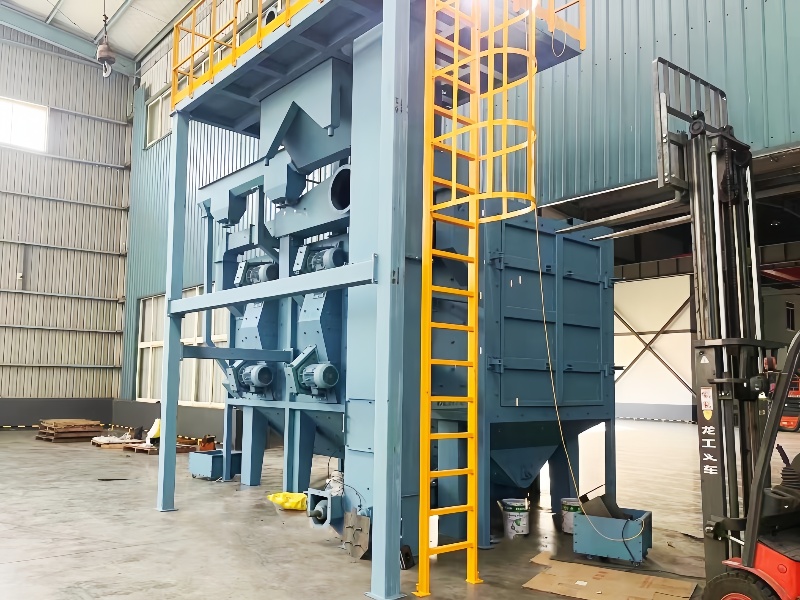

Catenary Pass Shot Blasting Machine(图1)

Working Process

Working Process

1.Loading: Workpieces are loaded onto hooks or hangers.

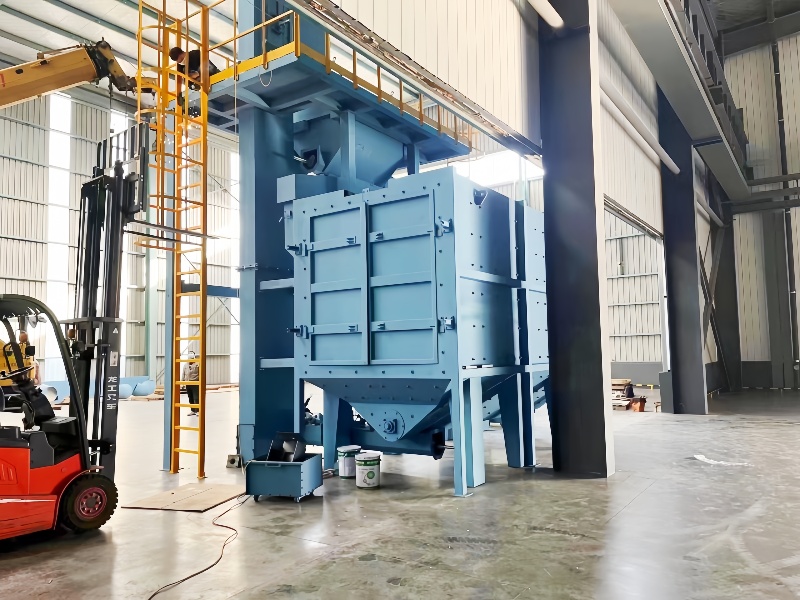

Catenary Pass Shot Blasting Machine(图1)

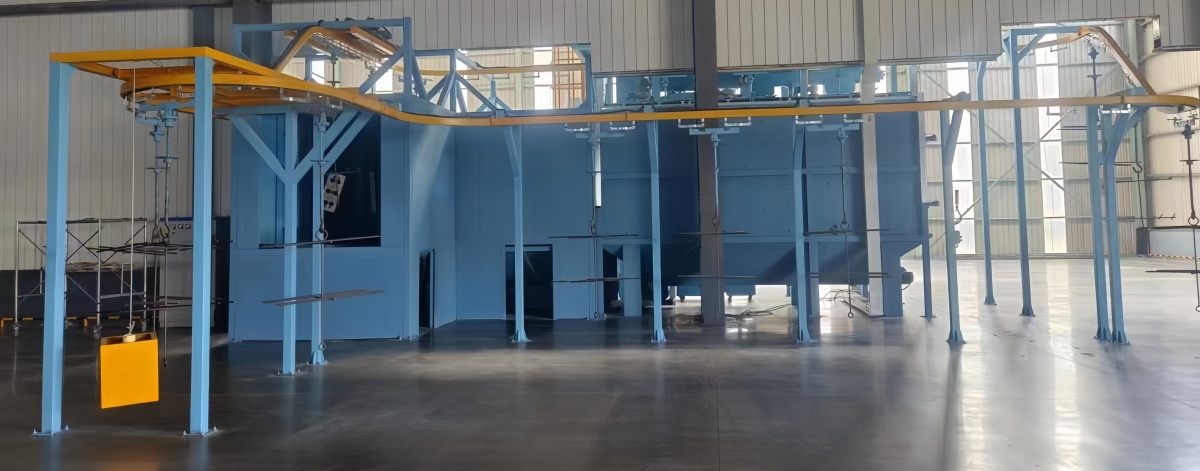

2.Transportation: The workpieces are transported through the machine via a continuous overhead conveyor system.

3.Blasting: High-speed steel shot or other abrasive media are propelled onto the workpieces by centrifugal force from the blasting wheels.

4.Cleaning: The shot media impact the surface, removing contaminants and improving surface quality.

5.Recovery and Recycling: The used shot media are collected, separated from debris, and recycled for reuse.

6.Unloading: Cleaned workpieces are unloaded from the machine.

Components

The Catenary Pass Shot Blasting Machine typically consists of the following key components:

1.Overhead Conveyor System: Transports workpieces through the machine.

2.Blasting Chambers: Enclosed areas where the blasting process occurs.

3.Blasting Wheels: High-speed wheels that propel the shot media.

4.Shot Recycling System: Collects and recycles the used shot media.

5.Dust Collection System: Removes dust and debris generated during the blasting process.

6.Control Panel: Allows operators to adjust blasting parameters and monitor the process.

The Catenary Pass Shot Blasting Machine is an ideal solution for industries requiring efficient and reliable surface preparation and cleaning of metal components.

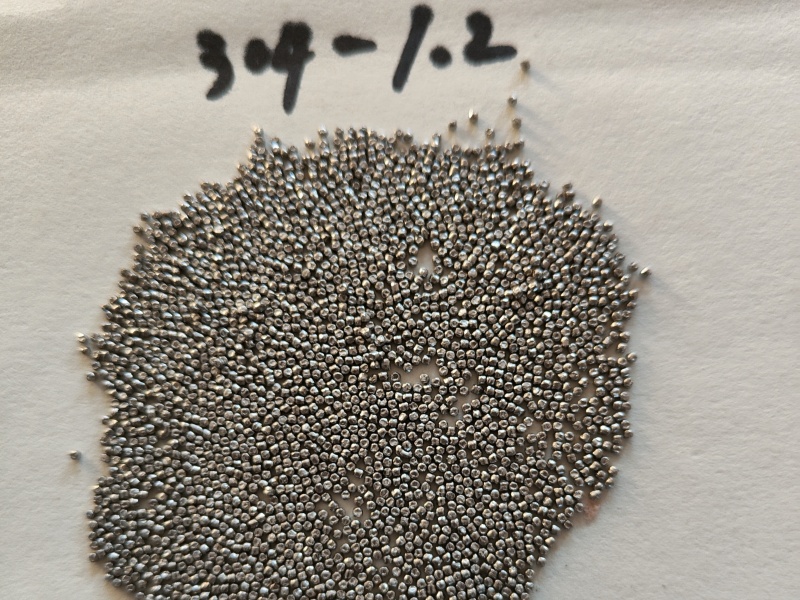

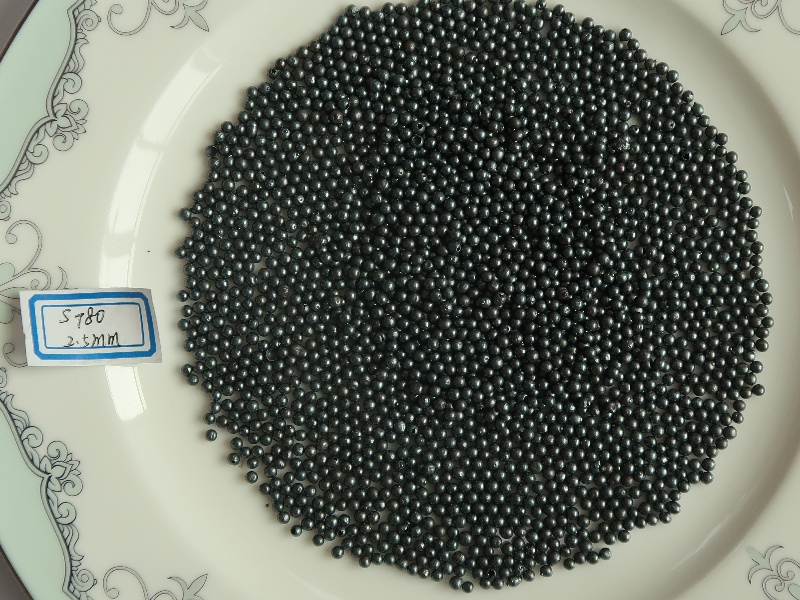

Used Related Abrasive

Catenary Pass Shot Blasting Machine(图1)
