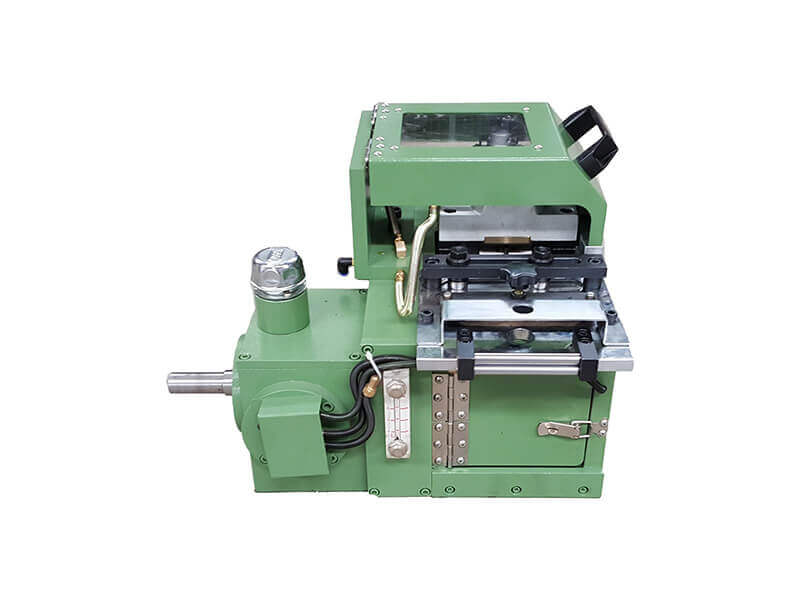

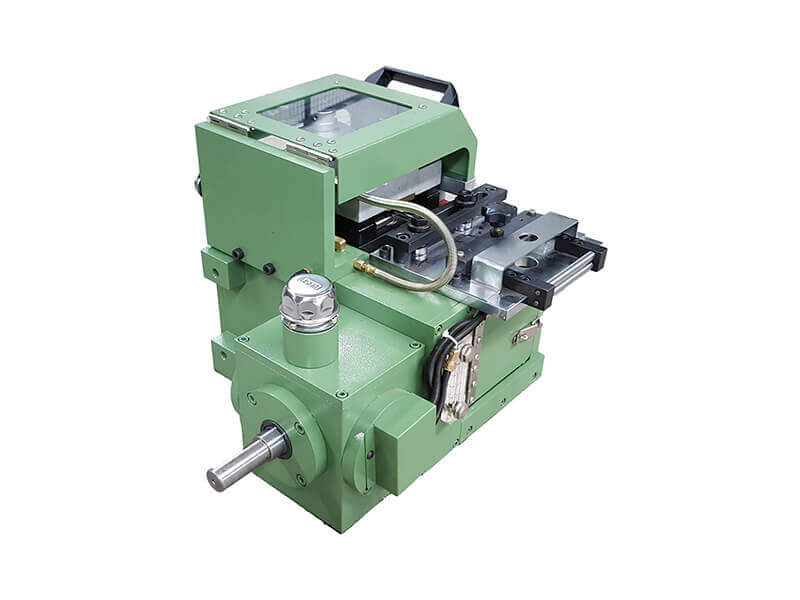

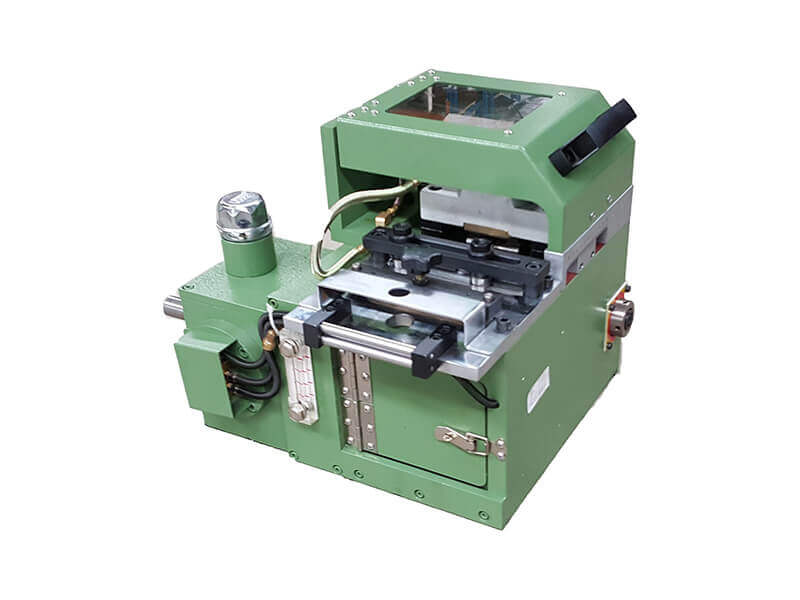

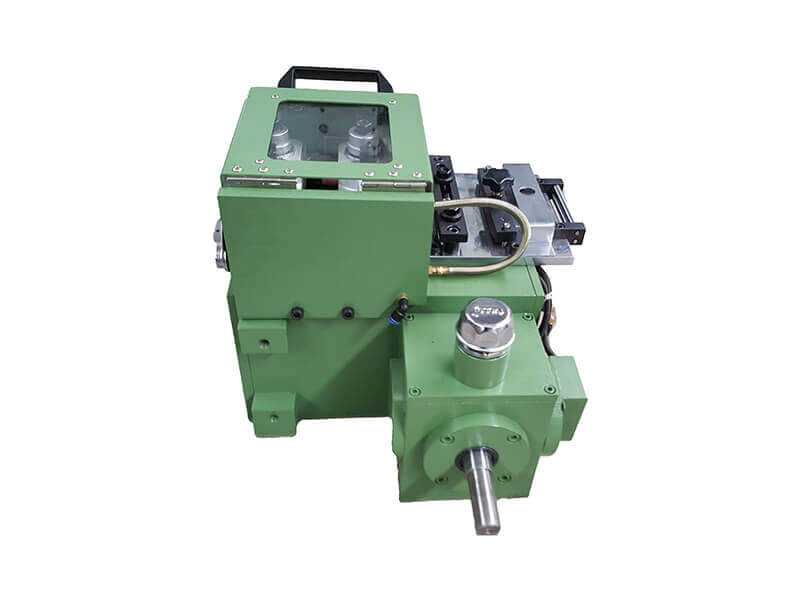

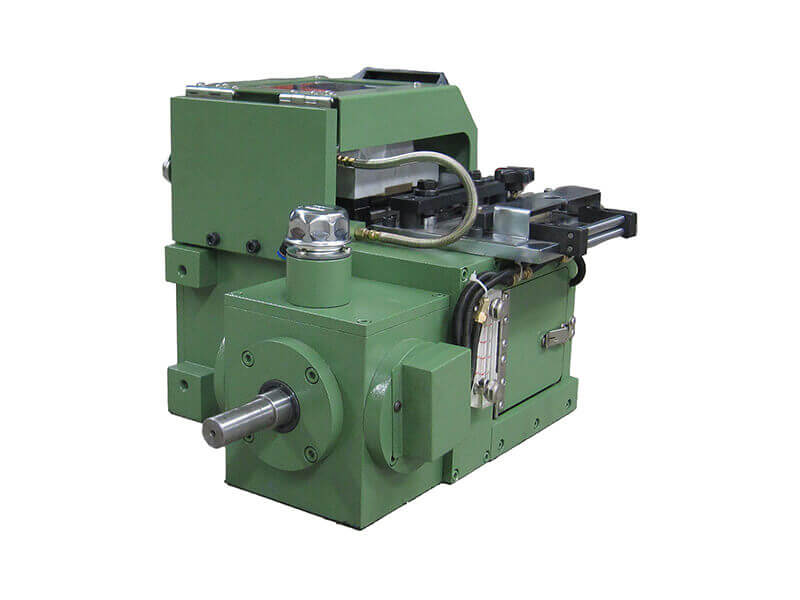

High Speed Gripper Feeder

1.Model No.: GS

2.Applicable Coil Width: 20mm-300mm

3.Applicable Coil Thickness: 0.1.1.6mm

4.Releasing Type: Mechanical

5.Function: Feeding The Coil Strips Into The Press Machine

6.Applicable Material: Copper, stainless steel, aluminum and etc

7.Applications: High speed stamping line, such as terminal stamping, small electrical parts stamping etc.

technical consultation

Video

Brief Profile

GS is mechanical gripper feeder machine in the market, ideal for high speed stamping line, such as terminal stamping, small electrical parts stamping etc.

The feeding speed can reach 1200SPM.

Model No.: GS

Applicable Material: Copper, stainless steel, aluminum and etc

Applications: High speed stamping line, such as terminal stamping, small electrical parts stamping etc.

Applicable Coil Width: 20mm-300mm

Applicable Coil Thickness: 0.1-1.6mm

Releasing Type: Mechanical

Function: Feeding The Coil Strips Into The Press Machine

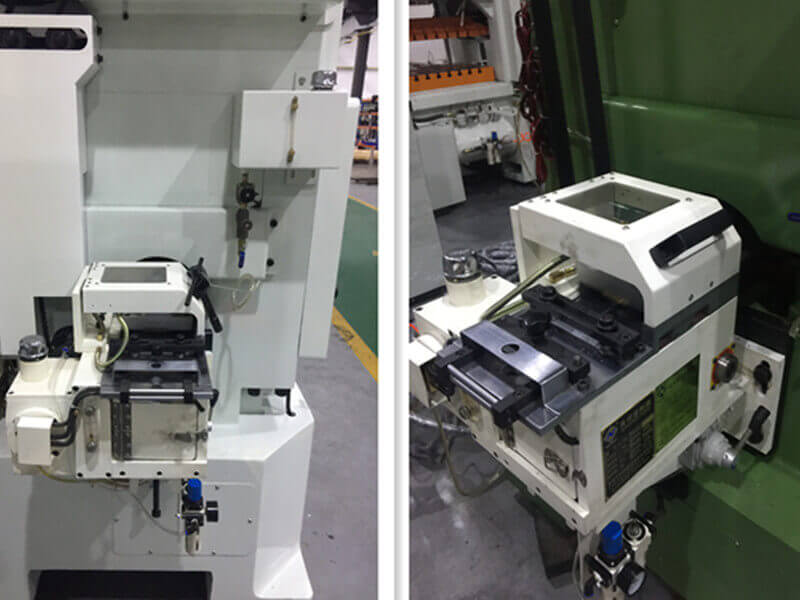

Usually the high speed gripper feeder machine is used to the

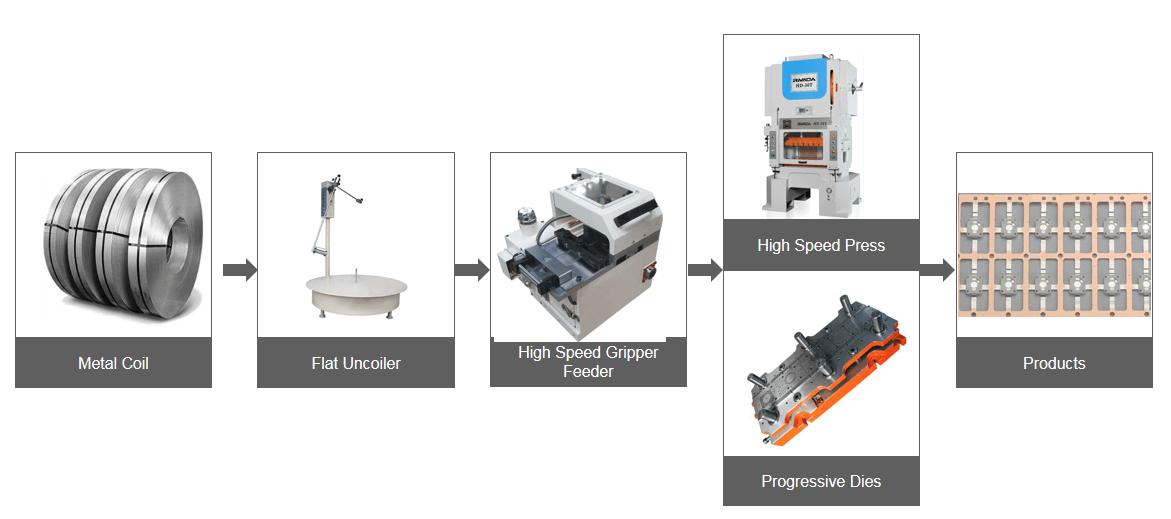

The configuration of high speed stamping line for making terminal.
Step-1: Flat Decoiler Machine, Loading coil and uncoilling coil.
Step-2: High speed feeder machine, Feed coil to press machine.
Step-3: High speed press machine with the moulds,pressing to the end product

High Speed Gripper Feeder(图1)

Basic Parameter

Model	GS-906
Max. Coil Width	90 mm
Max. Feeding Length	60 mm
Feeding Angle	180
Coil Thickness (mm)	0.1-1.5 mm
Feeding Line Height	60-120
Release Angle	Adjustable
Feeding Mechanism	Crank Shaft Transmission
Installation Location	Left
Feeding Direction	From Left to Rig
