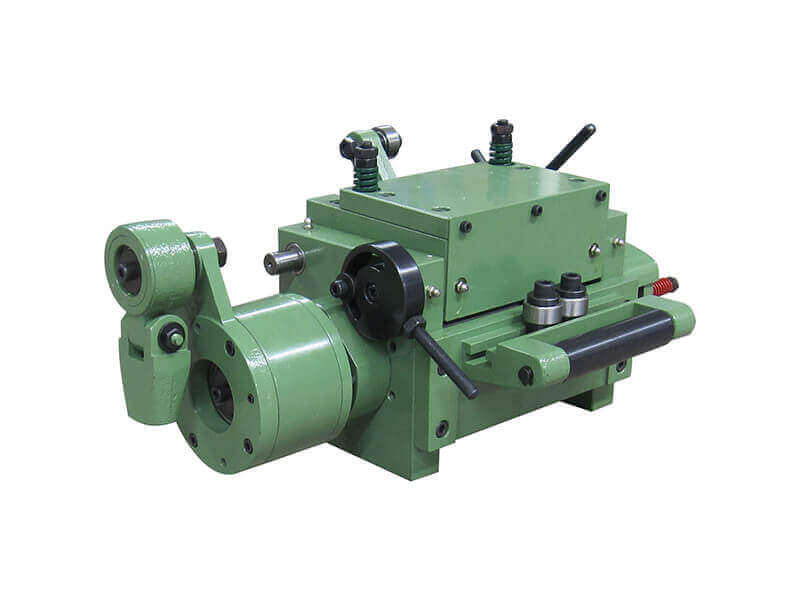

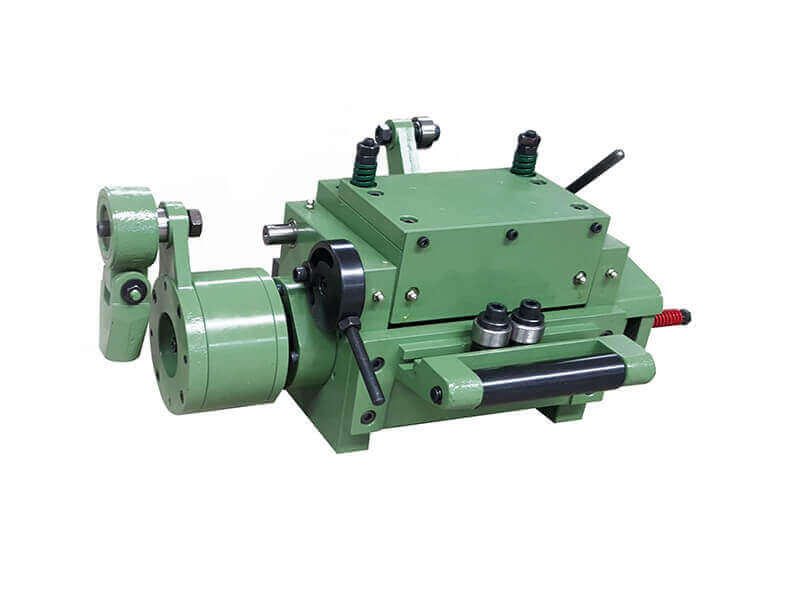

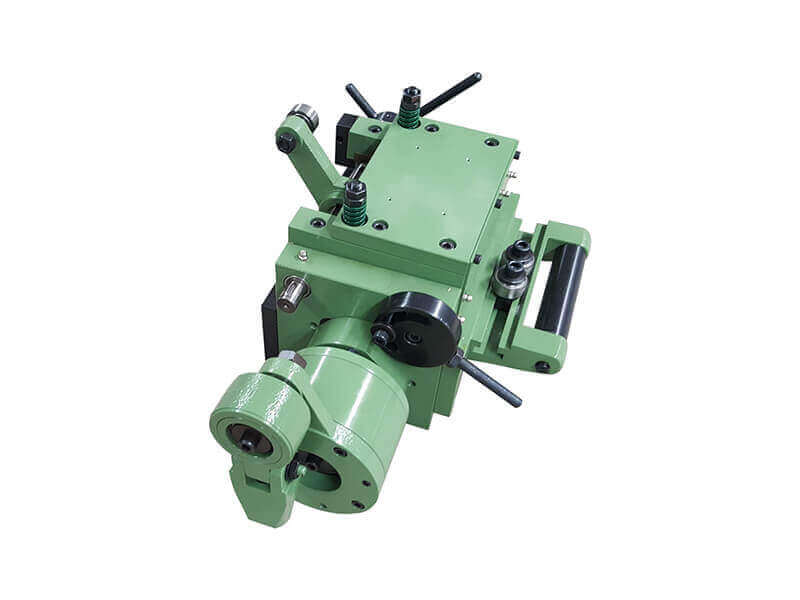

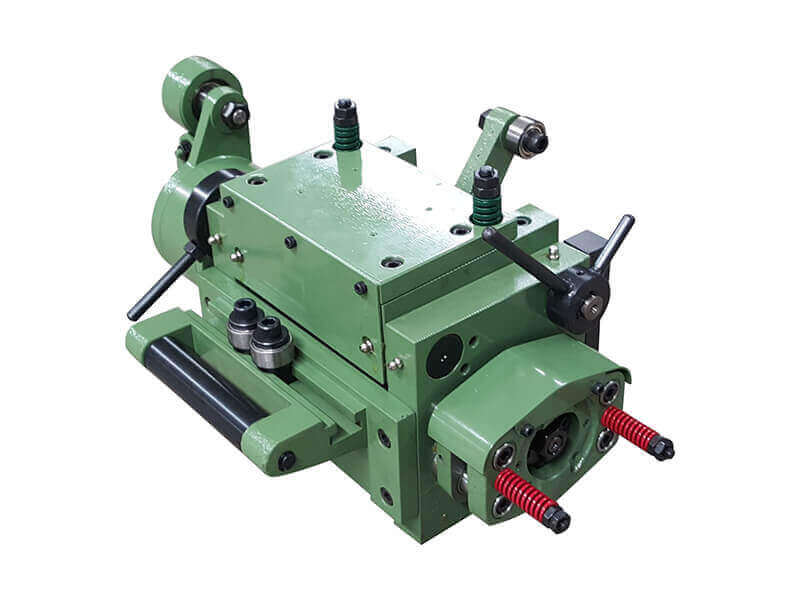

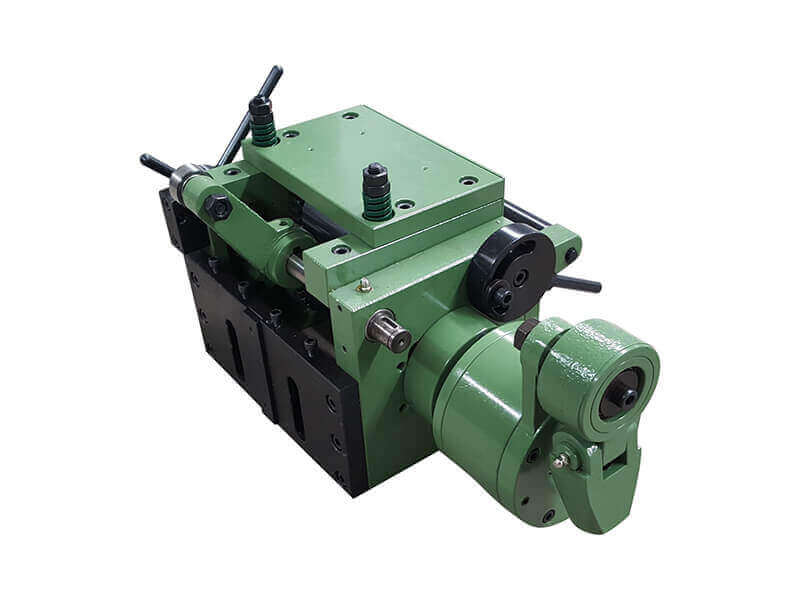

High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder
High Speed Roll feeder

Model No.: RF-NS

Applicable Material: Copper, stainless steel, aluminum and etc

Applications: High speed stamping line

Applicable Coil Width: 20mm-400mm

Applicable Coil Thickness: 0.1-3.5mm

Releasing Type: Mechanical



technical consultation

Video

Brief Profile

Mechanical High speed Roll Feeder Machine is mechanical roller feeder machine in the market, usually ideal for high speed production, such as saw blade stamping line, eyelet stamping line, metal button stamping line and terminal stamping line.

Model No.: RF-NS

Applicable Material: Copper, stainless steel, aluminum and etc

Applications: High speed stamping line

Applicable Coil Width: 20mm-400mm

Applicable Coil Thickness: 0.1-3.5mm

Releasing Type: Mechanical

High precision:+/-0.1mm

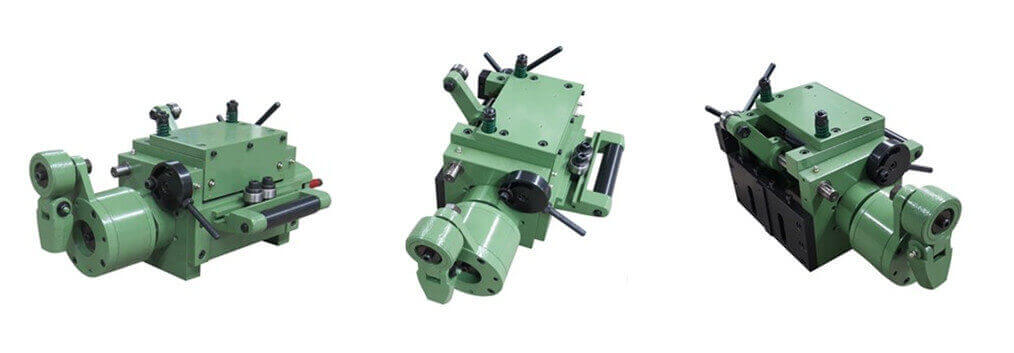

High Speed Roll feeder(图1)




Features

High Speed Roller Feeder Machine Feature And Advantage:

1. High precision:+/-0.1mm

2. High speed: 600SPM

3. Suitable for material thickness :0-3.5 mm.

4.Suitable for all kinds of metal coil automatic feeding,easy to operate.

5.No power,High quality ,lowest maintenance.

6. Easy operation, safe and high stability.

7.We can customize the machine.

8. Our High Speed Roller Feeder Machine widely used to LED, automobile industry,appliances manufacturing, medical apparatus and instruments, hardware & Metal parts etc industry.



Basic Parameter

Model
Max. Coil Width (mm)
Max. Feeding Length (mm)
Max. Coil Thickness (mm)
Mould Line Height (mm)
RF-105NS
100
50
0.1-1.6
55-100
RF-205NS
200
50
0.1-1.6
55-100
RF-305NS
300
50
0.1-1.6
55-100
RF-405NS
400
50
0.1-1.6
55-100
RF-138NS
130
80
0.1-1.6
60-120
RF-1310NS
130
100
0.1-3.5
70-140
RF-2010NS
200
100
0.1-3.5
70-140
RF-3010NS
300
100
0.1-3.5
70-140
RF-4010NS
400
100
0.1-3.5
70-140
RF-2015NS
200
150
0.1-3.5
70-140
RF-3015NS
300
150
0.1-3.5
70-140
RF-4015NS
400
150
0.1-3.5
70-140
RF-1320NS
130
200
0.1-3.5
70-140
RF-2020NS
200
200
0.1-3.5
70-140
RF-3020NS
300
200
0.1-3.5
70-140
RF-4020NS
400
200
0.1-3.5
70-140
