NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)
NC servo Feeder (0.5-6.0mm)

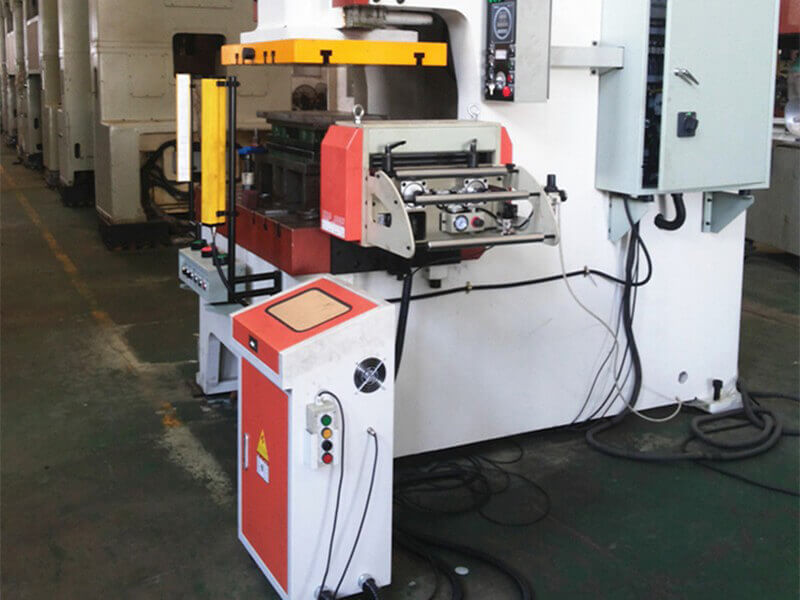

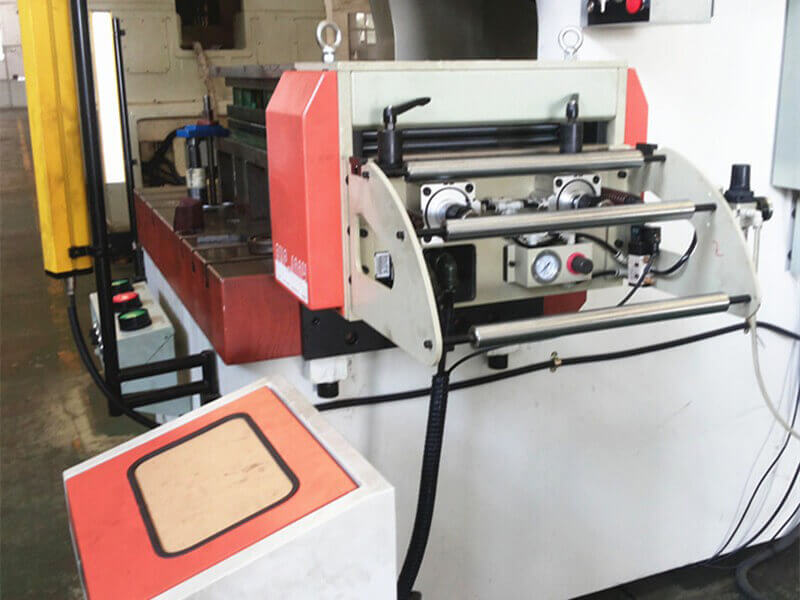

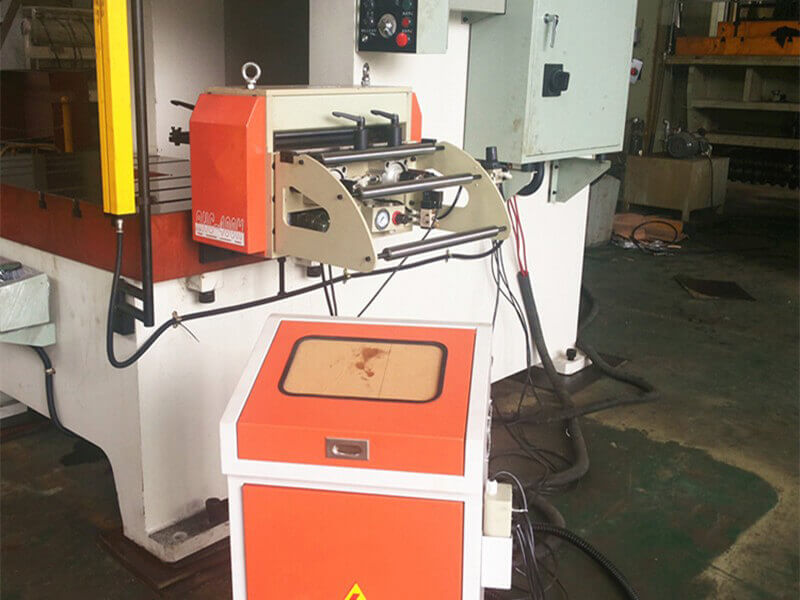

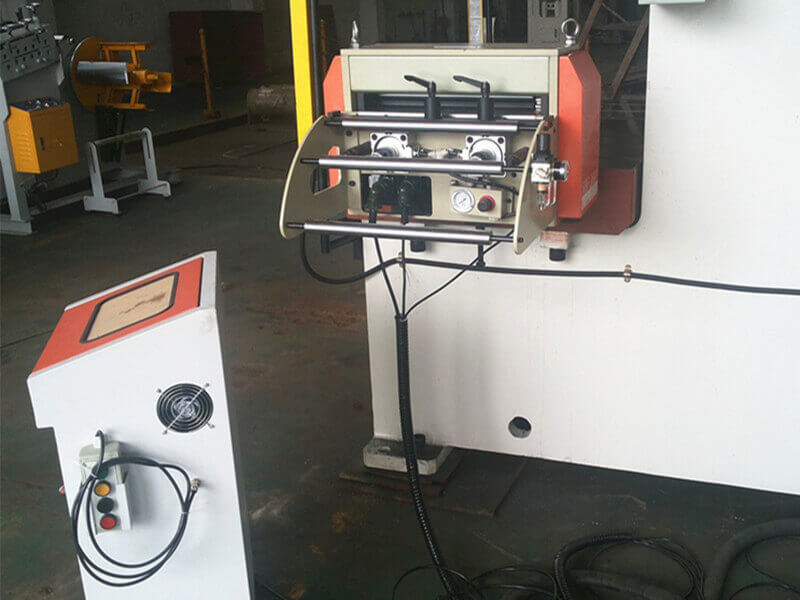

NC Servo feeder machine is one type smart and easy to operate feeder machine in the market. It can feed metal strips thickness up to 6.0mm and Max. Feeding speed reaches 20m/min.


technical consultation

Video

Brief Profile

Servo feeder machine is one type smart and easy to operate feeder machine in the market. It's very popular all over the word, This kinds of feeder machine can feed metal strips width to 1300mm, thickness up to 6.0mm and Max. Feeding speed reaches 30m/min. With a high concentric mechanical structure and precision parts, combined servo control system, can achieve precision feeding performance in 0.1mm.


Applicable Meterial

Model No.: RNC

Applications: Pressing Line/Metal Stamping Line/Forming Line

Applicable Coil Width: 20mm-1300mm

Applicable Coil Thickness: 0.5-4.5mm/0.5-6.0mm

Feeding pitch: 0-9999.99mm

Feeding Speed: 20m/min

Releasing Type: Pneumatic

PLC: Mitsubishi, Japan

Servo Motor and Driver: Mitsubishi, Japan/ Siemens, Germany

Driver: Mitsubishi, Japan

Touch Screen: WEINVIEW, Taiwan/Mitsubishi, Japan

Function: Feeding The Coil Strips Into The Press Machine


NC servo Feeder (0.5-6.0mm)(图1)

Features

Reliable Mechanical Design


Stabilized Steel frame construction make the quality of machine more reliable. High concentricity mechanical structure ensures better coil feeding performance,All rollers finished heat treated, hard chrome-plated, ground etc. After this craft, roller hardness comes HRC60-62°, Gear driven upper Roll with anti-backlash features to ensure non-slip, positive feeding.With shot blasting processing can be ensure the lifetime of machine and improve paint adhesion to keep the machine beautiful performace.


Longer service life & lower maintenance cost


All main components come from worldwide famous brands with CE CERTIFICATION, good quality and safety, it can prolong the service life and lower maintenance cost such as full sets of Japanese low voltage components, Japan Mitsubishi PLC, Japan Yaskawa servo motor, etc.

Advance and Smart control systems


Operating with Computerize Numerical Control by PLC program from internatioanl brand such as MITSUBISHI made in Japan, Siemens made in Germany and ABB made in Switzerland,  it can ensure +/-0.01mm high feeding precision.Directly input the 20 difference feeding length on the control display screen and then it can reach needed feeding length, the Max. Feeding length is 9999.99mm.


Accuracy and reliable feeding performance


High-precision drivers by utilizing the capabilities of high-resolution servo motors and servo drivewith low inertia, ensures a reliable coil feeding accuracy. With pneumatic release system and precision control, RNC achieves an accuracy feeding of +/- 0.1mm.

Basic Parameter

Model
RNC-300B
RNC-400B
RNC-500B
RNC-600B
RNC-300H
RNC-400H
RNC-500H
Coil Width
300 mm
400 mm
500 mm
600 mm
300 mm
400 mm
500 mm
Strip Thickness
0.5-4.5 mm
0.5-6.0mm
Release
Pneumatic Type Releasing System
Feed Roll
Upper Roll Ø75mm, Bottom Roll Ø90mm
Upper Roll Ø90mm, Bottom Roll Ø90mm
Feed Length
Max. 9999.99 mm
Speed
Max. 20m/min
Accuracy
± 0.1 mm
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
1.3 Kw
1.8 Kw
2.9 Kw
1.8 Kw
2.9 Kw
