Zig-Zag Servo Feeder offer dramatic productivity advantages in stagger feeding. Stagger feeding parts in a Zig-Zag Press Feed System can boost productivity and provide up to 22 % material savings. Zig-Zag Servo Feed controls are operator friendly and automatically calculate and set up all machine parameters quickly and accurately. Servomax Zig-Zag Servo Feeds provide fast, easy set-up in a single or dual axis format. The control automatically calculates the optimum movement in each axis and the feed can simultaneously or sequentially deliver the material in X-Y movement. 2 or 3 out pattern capability is standard with up to 6 out pattern optional.

Zigzag Servo feeder machine is driven by an AC Servomotor through a precision gear train while the lateral travel of the feed and material is powered by a combination AC Servomotor and linear ball screw. The ServoMatic and ServoMax Servo Press Feeds can be press mounted or Cabinet mounted. The SMX H and H6 Servo Roll Feeds are cabinet mounted.

This zigzag Nc Servo feeder production line with high Efficiency, saving material utilization rate of washer drawing function, can be a variety of coil material by uncoiling, straightening, punching, shift around circular plate is the efficient processing of different specifications of pipeline materials under the sheet metal processing wafer. We also cam add the auto stack device, can be collected the circle into wafer stacking.

Application

This zigzag NC servo feeder production line is suitable for lamps, ceiling lamps, eletric cooker, pot, tea class punching, stainless steel tableware, water pump, water heater , bearing retainer, fire extinguisher, filter and accumulator, motor stator, rotor, motor shell electronic, the refrigerator compressor, air conditioner compressor casing , auto clutch, car pulley, automobile wheel Hub, brake disc stamping.

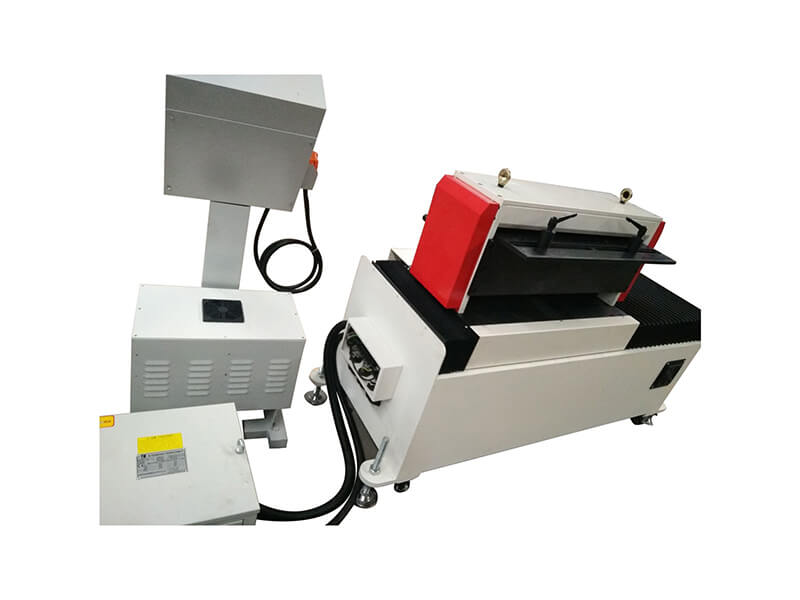

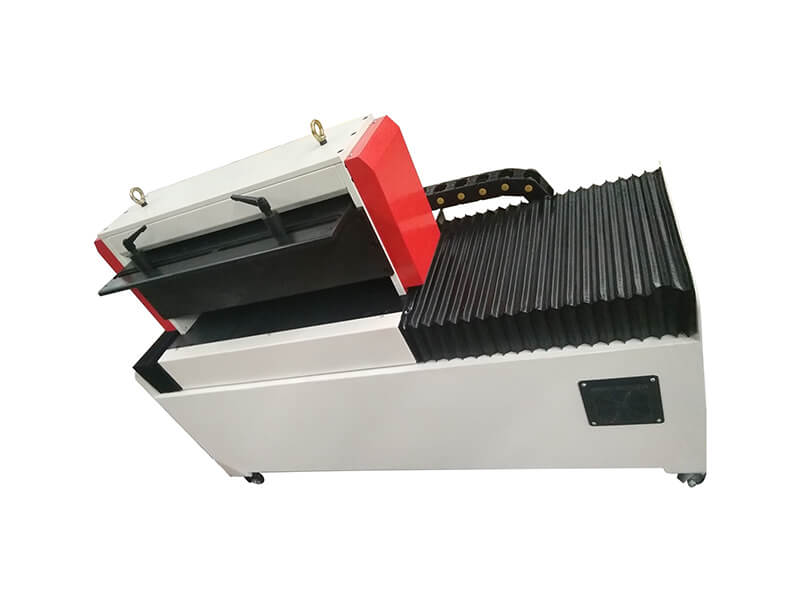

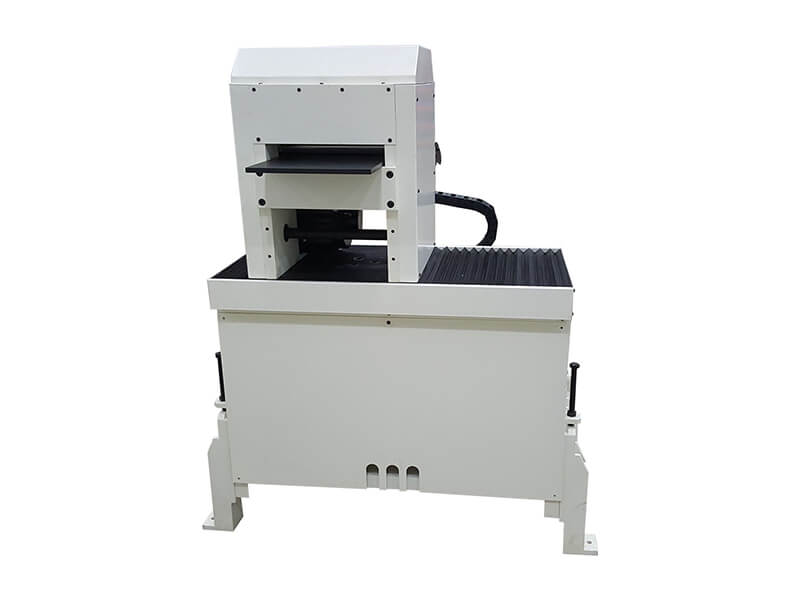

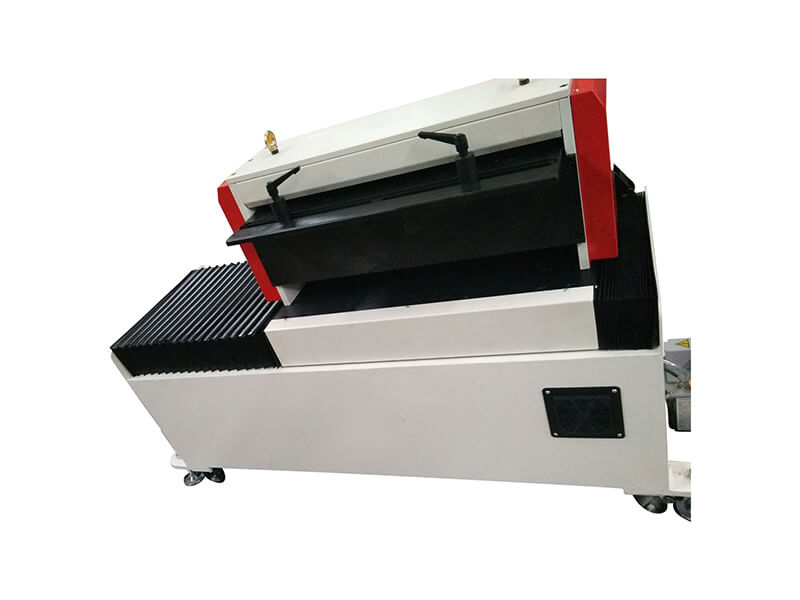

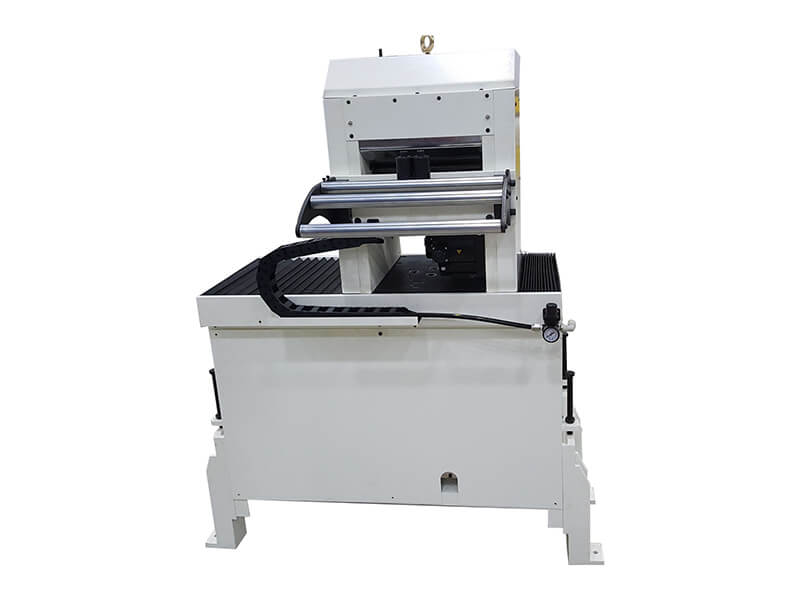

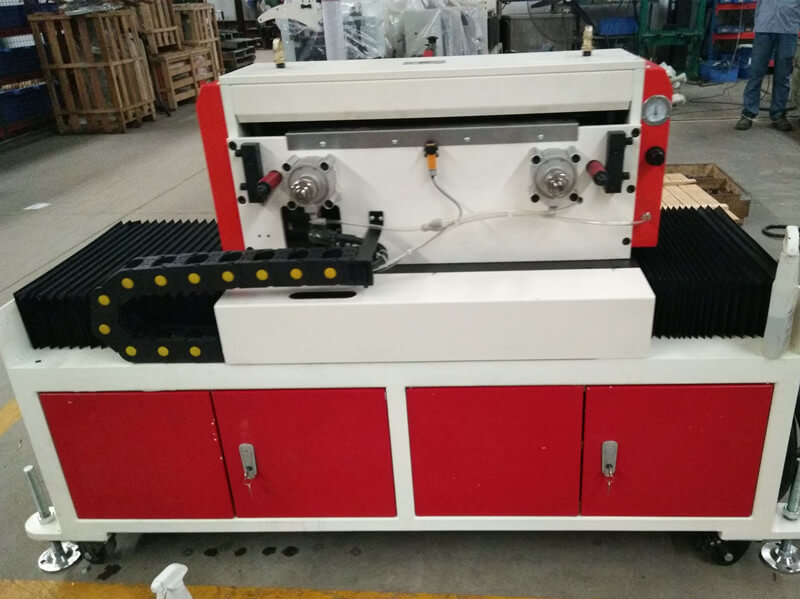

Zigzag NC servo feeder(图1)

Basic Parameter

Model	NCP-200	NCP-300	NCP-400	NCP-500	NCP-600	NCP-800
Coil Width	200 mm	300 mm	400 mm	500 mm	600 mm	800 mm
Strip Thickness	0.2-2.0 mm
Release	Pneumatic Type Releasing System
Roll Pressure	Spring Type
Feed Roll	Upper Roll 1pc, Bottom Roll 1pc
Feed Length	Max. 9999.99 mm
Speed	Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min
Left Center Displacement	100 mm	150 mm	200 mm	250 mm	300 mm	400 mm
Accuracy	± 0.1 mm
Servo Motor	Yaskawa, Japan
Servo Drive	Yaskawa, Japan
PLC	Mitsubishi, Japan
