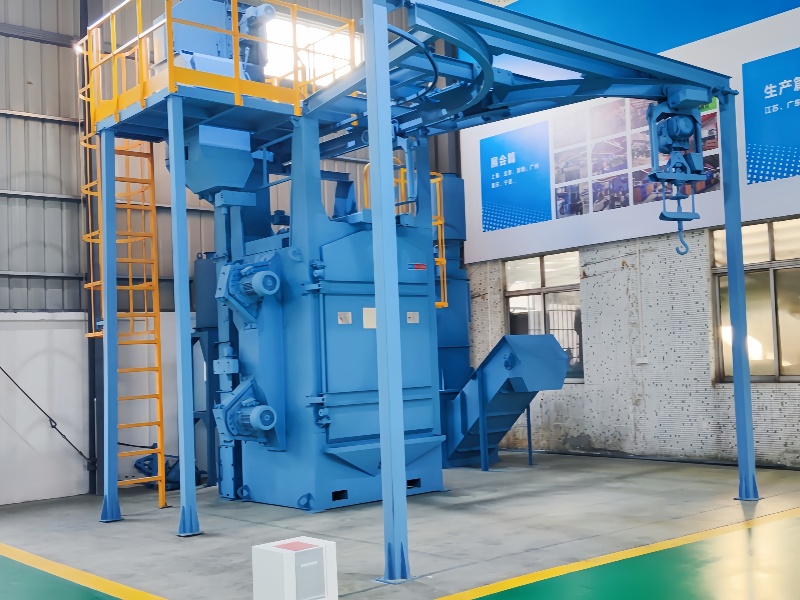

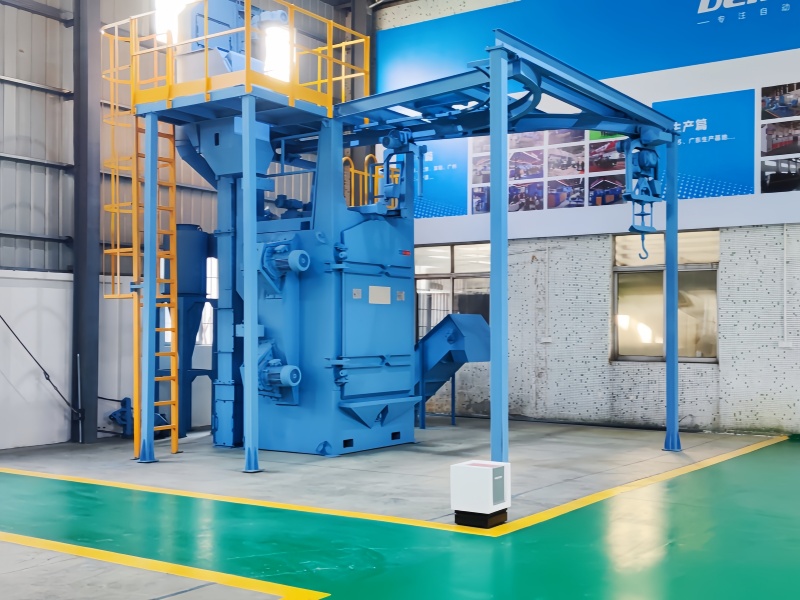

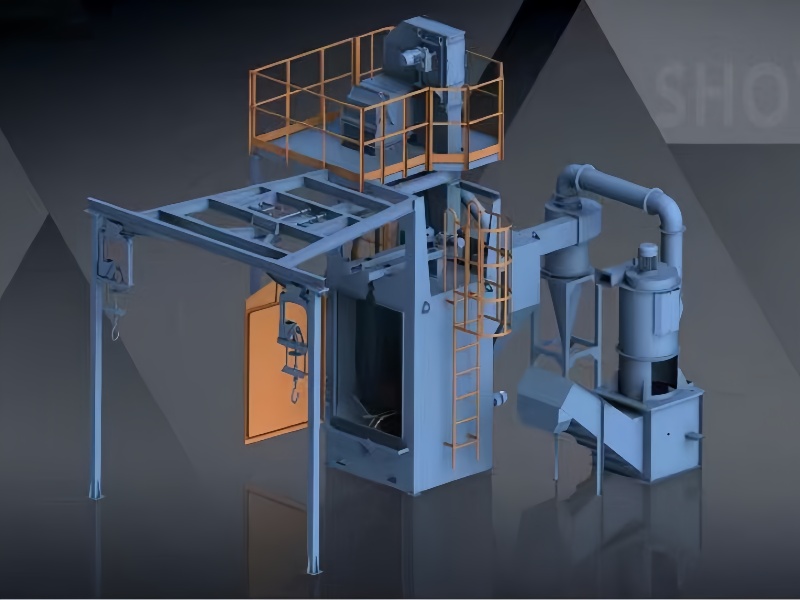

Accurate blasting effect

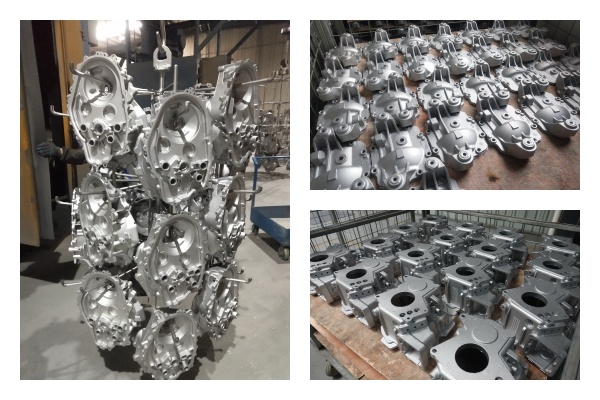

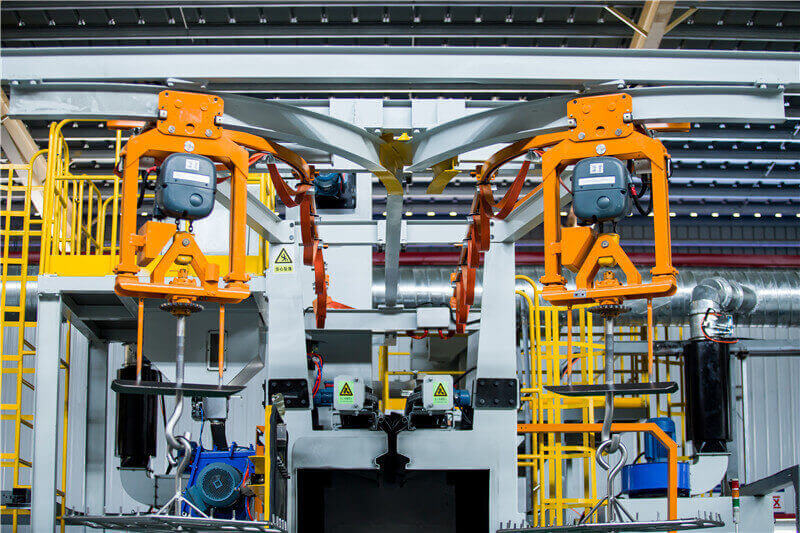

To achieve complete coverage, the workpiece carrying hooks rotate and stop automatically at three different points in the blast cabinet. This rotation and process mean that even highly complex workpieces, with hard to reach surfaces, can be safely and accurately treated.

Easy to operate and maintain

Our machine adopts PLC control, all process parameters of products to be blasted can be set up and saved in program means that there is no need to repeat input, also with the characteristic of high degree of automation, high operation safety, low maintenance. Reducing labor input and improve the production efficiency.

Environmental Protection

Nowadays, as living standards and quality improve, noise and dust emission concentration are the two environmental issues that people are most concerned about. About our shot blasting machine, we have adopted advance methods to reduce noise to 85DB and dust emission concentration to less than 50mg/m3 ( if more strict requirements then needs high standard configuration which can be communicated).

Flow Control Valve

a. Flow control systems, used to control the steel shot flow into the shot blasting machine

b. Fully sealed structural design with lockable inspection window, equipped with two bearings

c. On the top of the each flow valve, in case that steel shots flowing from the storage silo, there is a manual stop valve been switched off when the flow valve needs to be repaired.

Separator System

a. To separate the steel shot, crushed steel shot and dust.

b. Welding structure, the internal a number well-designed rooms use for decided the wind direction. The front is an open access door for daily observation and maintenance.

c. Multipole adjustable plate structure is used to adjust the smoothness of the sand curtain.

Screw Conveyor

a. Vertical spiral pusher, located at the bottom of the shot blasting chamber used to transport the abrasive up to the elevator bucket

b. Production process of the helix ensures that there are no micro fissures and micro tearing apart of the structure

Bucket Elevator

a. Rubber elevator belt.

b. Used to raise the shots recovered by the screw pusher to the sorting device and stock bin.

c. The system consists of 2 precise machined wheels, 1 elevator shell, 1 high-performance wear belt and a number of alloy lifting hoppers.

d. Doors for control and maintenance.

Magnetic Separator System(Optional)

a. The magnetic separator increases your profitability by reducing machine wear and reducing abrasive consumption.

b. Moulding and core sand on castings is removed during the blast process. As they cause high abrasion they must be separated from the ferro-magnetic abrasive quickly and efficiently.

c. Sand/abrasive mix passes through the rotary screen where the mix is metered onto the magnetic drum.

d. Abrasive passes under the magnetic separator drum, allowing sand and metallic fines flow to a trash container or transporter (by customer)

Electric Control Cabinet

a. PLC : Siemens

b. Frequency converter: Brand optional

c. Low voltage electrical components: Brand optional

d. 10 inches color touch screen

Filter Dust Collector

a. The internal filter is fast dismantling to facilitate the installation and replacement; A single cartridge dust area is 10m3.

b. The dust collector is with automatic back blow cleaning device,the time interval of back blowing can be set; and also with renewal instrument with the to indicate when the filter cartridge can be replaced.

c. Electronic regulation of length and blowing-out frequency
