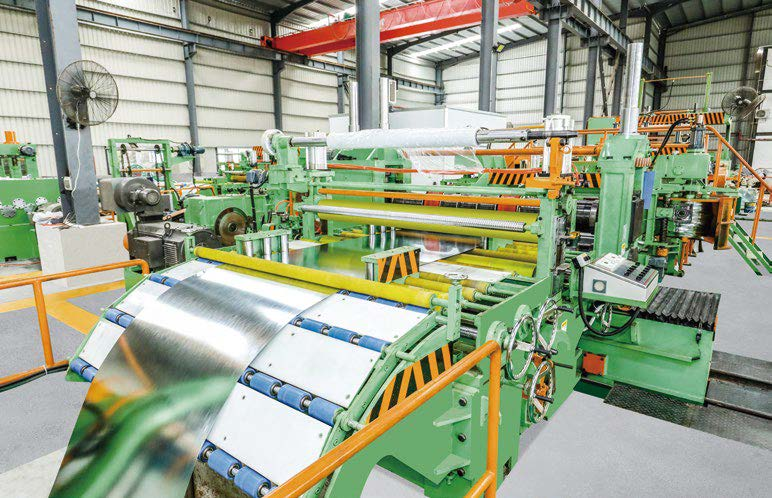

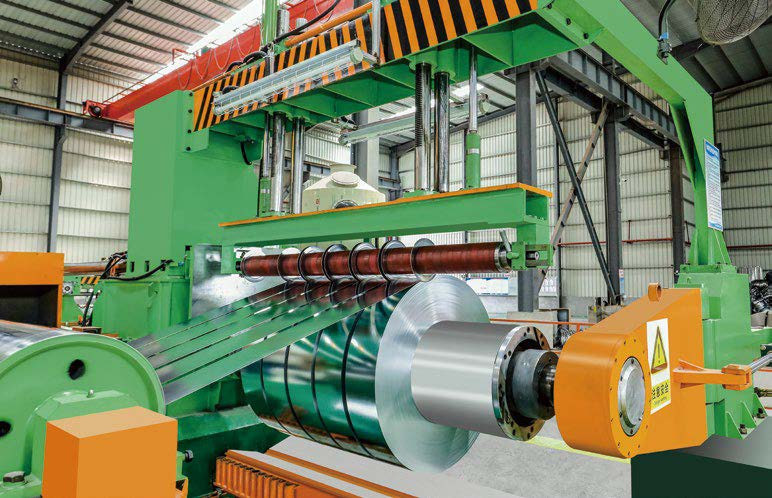

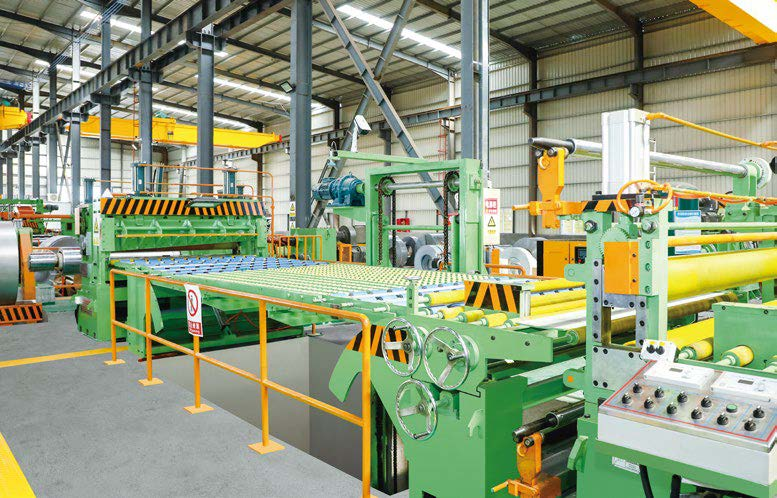

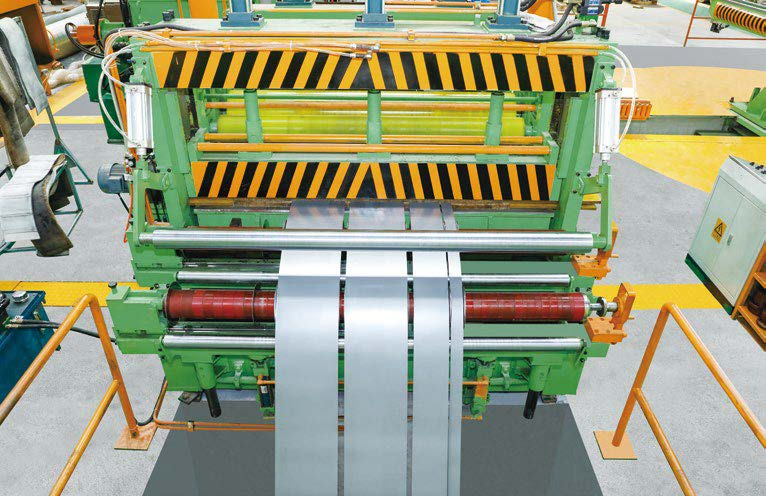

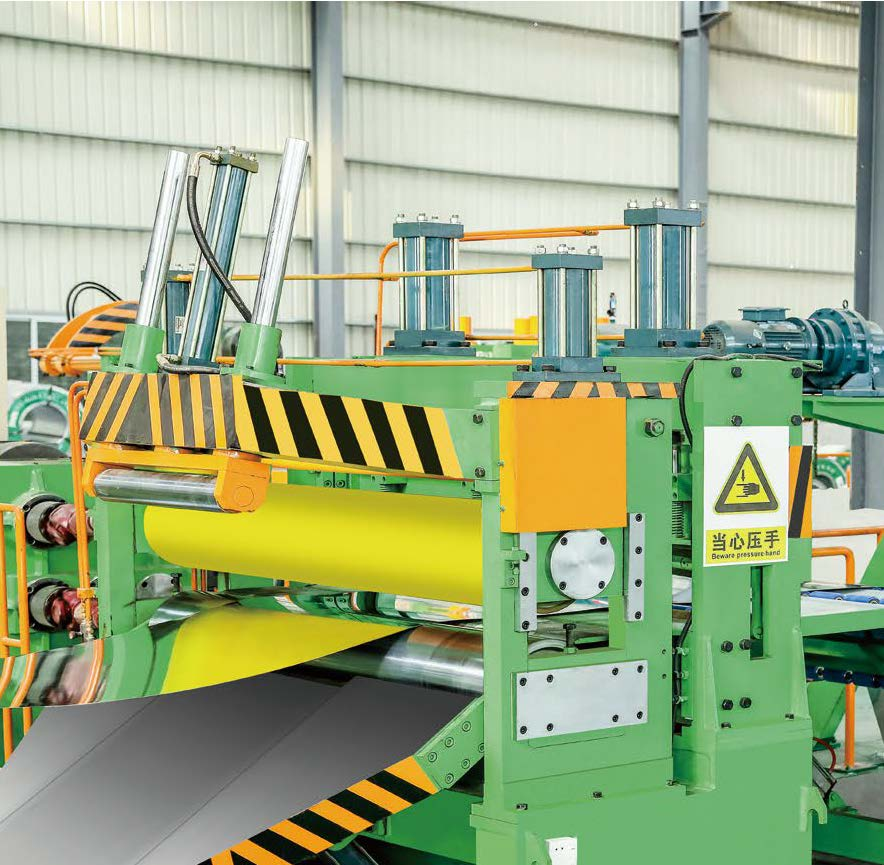

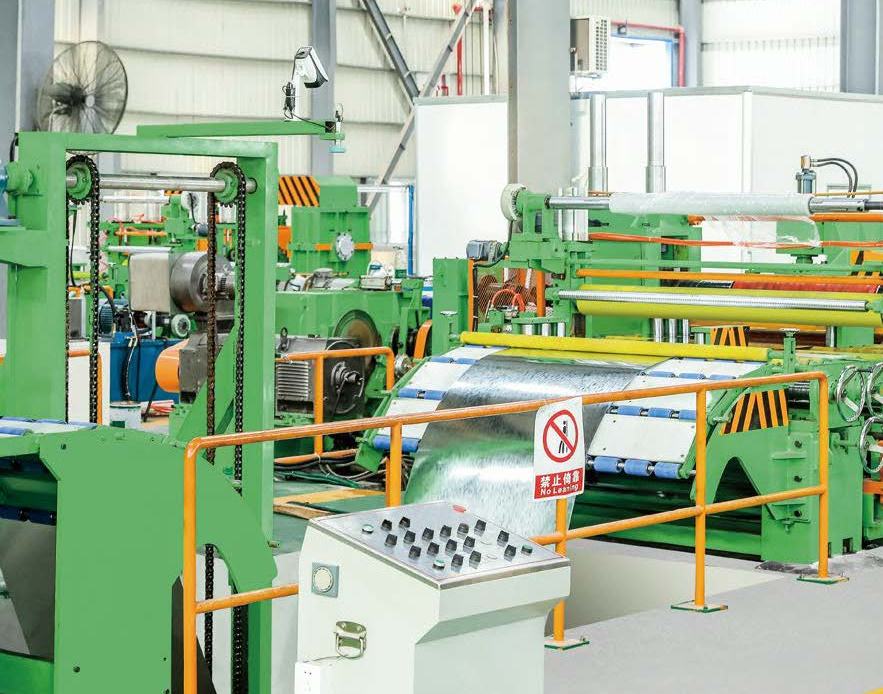

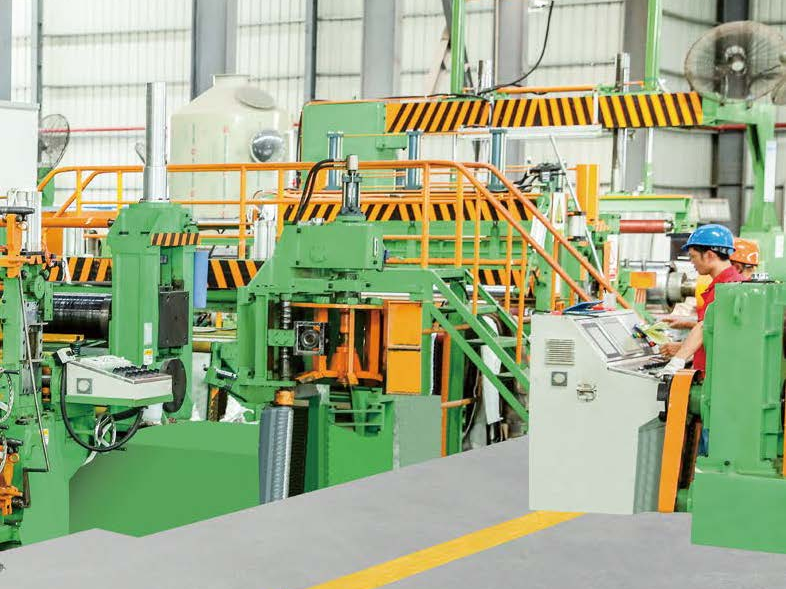

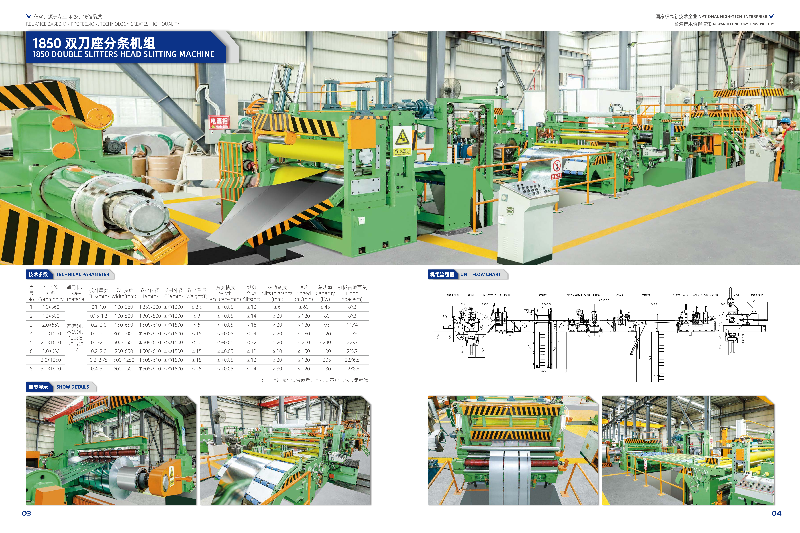

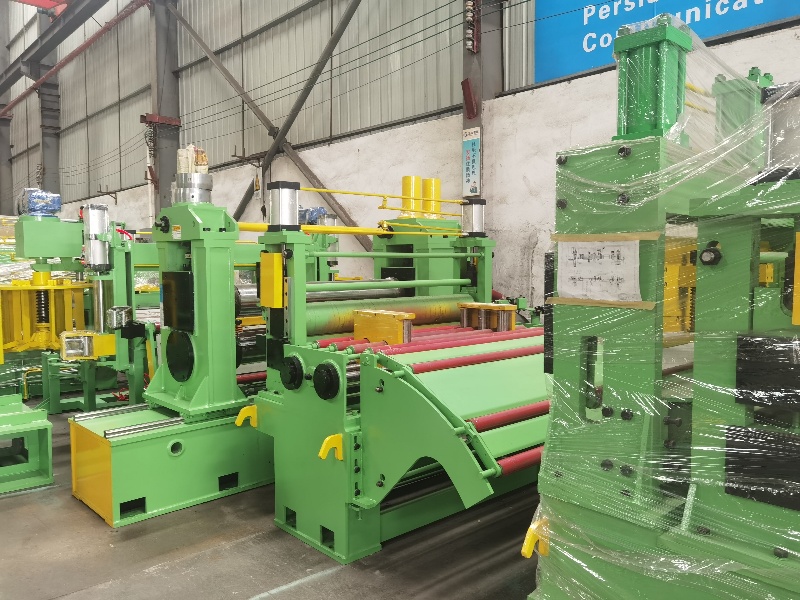

1.Name: Slitting Line
2.Slitting Material: Metal Coil
3.Slitter QTY: 2 sets
4.The Max. Coil Width:1850mm
What is slitting line ?
Slitting line is a critical piece of equipment in the metal processing industry, designed to cut wide coils of material into narrower strips with precision and efficiency. Here's an overview of what a slitting line is and how it works: 1.Functionality: A slitting line takes a wide metal coil and slits it into narrower coils or strips, which are then rewound for easy handling and transport. This process is essential in industries where precision and efficiency are paramount, such as automotive, construction, and electrical and electronics industries 2.Components: The main units of a slitting line include an uncoiler, coil-head opener, slitter, edge scrap winder, tensioner, and recoiler. The uncoiler feeds the material into the slitting head, where rotary knives slice the material into pre-determined widths. After slitting, the narrower strips are wound onto a re-coiler for easy handling 3.Process: The operation of a slitting line begins with the uncoiling of a large coil. The material is fed into the slitting head, where it passes through a series of rotary knives. These knives slice the material into pre-determined widths based on the requirements. After slitting, the narrower strips are wound onto a re-coiler for easy handling and transport Applications: Slitting lines are integral to various manufacturing sectors, providing efficiency, precision, and customization. They are used in the automotive industry for producing parts like body panels and frames, in the construction industry for materials like roofing and siding, and in the electrical and electronics industry for producing metal strips for various components .
4.Advantages: Slitting lines offer several advantages, including the ability to process materials with varying thicknesses and widths, high-speed slitting capabilities, and the production of high-quality, uniform slitted strips. They also contribute to material conservation by minimizing waste during the slitting process
Technological Advancements: Modern slitting lines are equipped with advanced monitoring and control systems, which allow manufacturers to track and analyze the performance of the slitting process, ensuring optimal productivity. These systems also improve the accuracy and consistency of cuts, minimizing material waste and optimizing the use of metal coils . In summary, slitting lines are indispensable in the metalworking industry for their ability to transform large coils of metal into narrower strips that meet specific production needs across a variety of applications.
Can you explain the benefits of using a slitting line over other cutting methods?
Using a slitting line offers several benefits over other cutting methods, which can be summarized as follows:
1.Cost Savings: Slitting lines are more cost-efficient per pound compared to cutting sheets from a shear. They can process a large coil into multiple slit coils in a fraction of the time it would take to shear individual sheets, reducing labor, time, and blade consumption costs.
2..Customizability: Slitting lines allow steel suppliers to produce coils and sheets in custom widths based on customer needs, minimizing the need for additional processing and reducing material waste .
3.Precision Tolerances: Modern high-speed slitting lines can maintain extremely tight width tolerances, which is crucial for applications requiring high precision. This precision also allows steel to be directly used in automated stamping presses or CNC machining centers with minimal secondary processing .
4.Clean Surface Finish: Slitting lines provide a superior surface finish without deformation from mechanical sawing or teeth marks, as would be caused by a slitting saw or bandsaw. This is important for maintaining corrosion resistance and allowing the use of thinner gauges .
5.High-Speed Production: Slitting lines are designed for high-speed and high-volume production, which can enhance overall production efficiency .
6.Versatility: Slitting lines can handle a variety of materials, including different widths, thicknesses, and weights of coils, making them suitable for multiple industries such as steel, non-ferrous metals, and non-metallic materials processing .
7.Robust and Reliable: High-quality slitting lines are built to withstand harsh working conditions and operate reliably over extended periods .
8.Ease of Operation and Maintenance: Slitting lines feature user-friendly control interfaces and accessible maintenance points, simplifying operation and upkeep processes for operators .
9.Comprehensive After-Sales Support: Many slitting line manufacturers provide comprehensive after-sales services, including installation, commissioning assistance, operator training, regular maintenance schedules, and timely troubleshooting .
10.Material Efficiency: Slitting lines are designed to minimize waste, making them cost-effective for manufacturers. By adjusting cutting parameters such as strip width and thickness, companies can optimize material utilization and reduce scrap rates .
11.Superior Edge Quality: Compared to traditional cutting methods, slitting lines deliver superior edge quality and dimensional accuracy, which is essential for meeting the stringent tolerances required in modern manufacturing, particularly in industries like automotive and aerospace .
These benefits highlight why slitting lines are often the preferred choice in material processing for industries that require high precision, efficiency, and customization.
