1.Name: Steel Plate Preservation Line

2.Model:MTR

3.It Is Used For  Steel Plate Shot Blasting+Painting



technical consultation

Video

Introduction

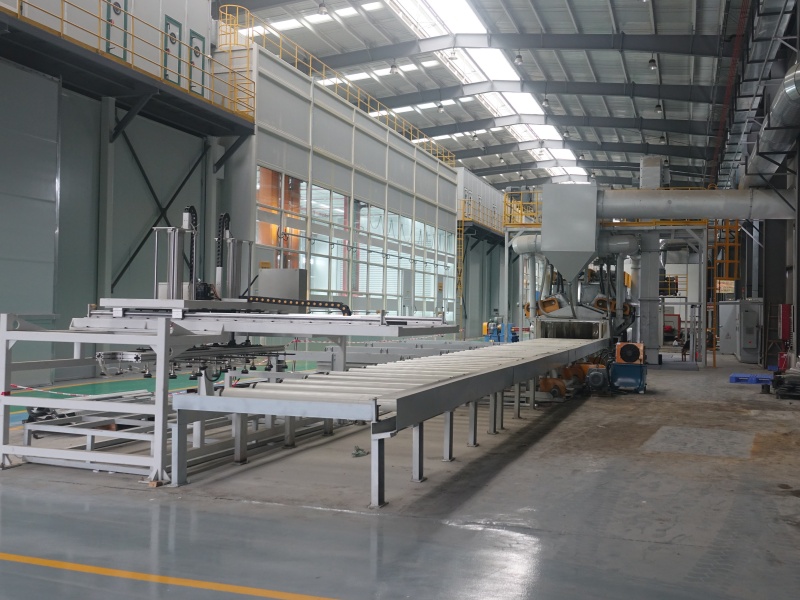

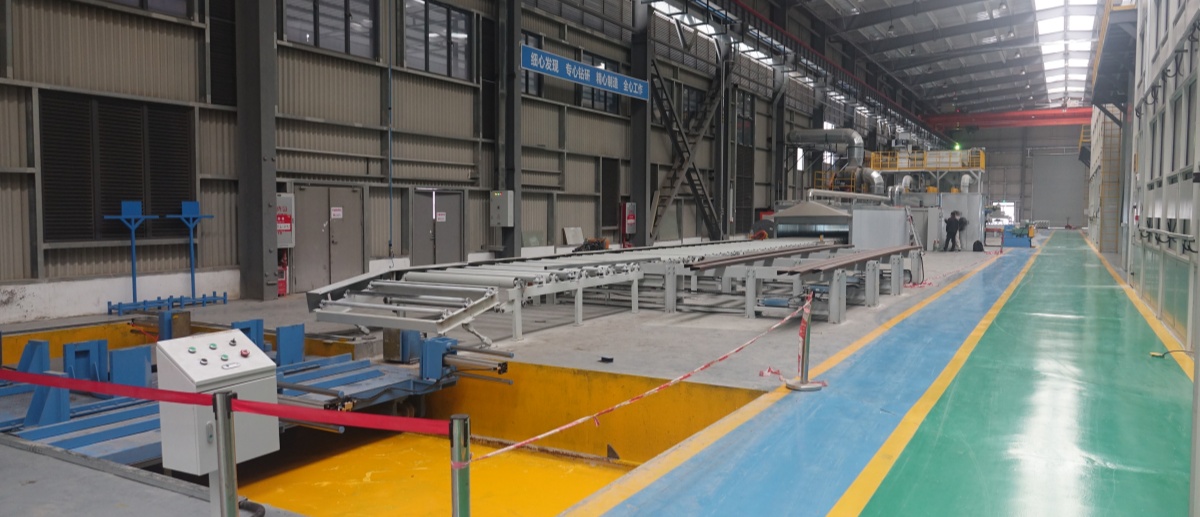

A Steel Plate Preservation Line is an integrated industrial system designed for the surface treatment and preservation of steel plates. It combines multiple processes—such as preheating, blasting, coating, and drying—into a single automated line to ensure high-quality surface preparation and corrosion protection.


Components and Process

Components and Process

A typical Steel Coil Preservation Line consists of several key components, each serving a specific function in the preservation process:

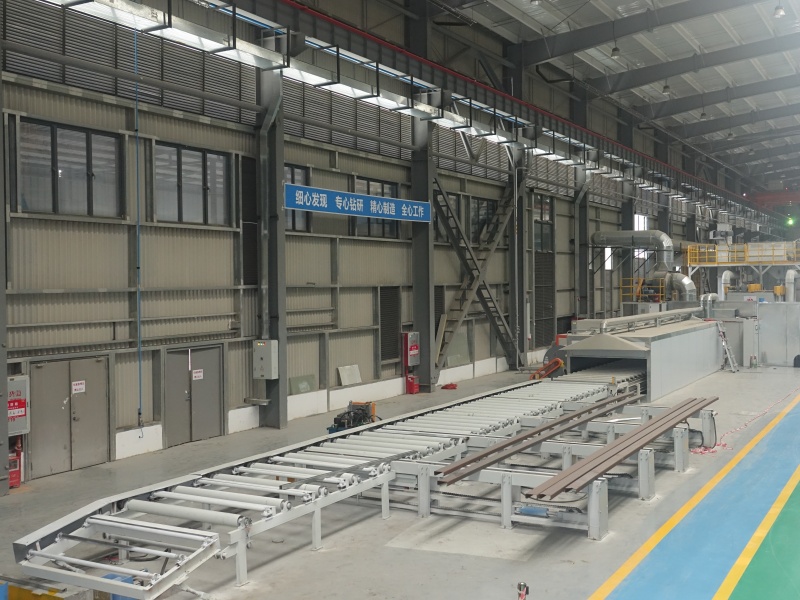

1.Inlet Roller Conveyor:

This component feeds the steel coils into the preservation line

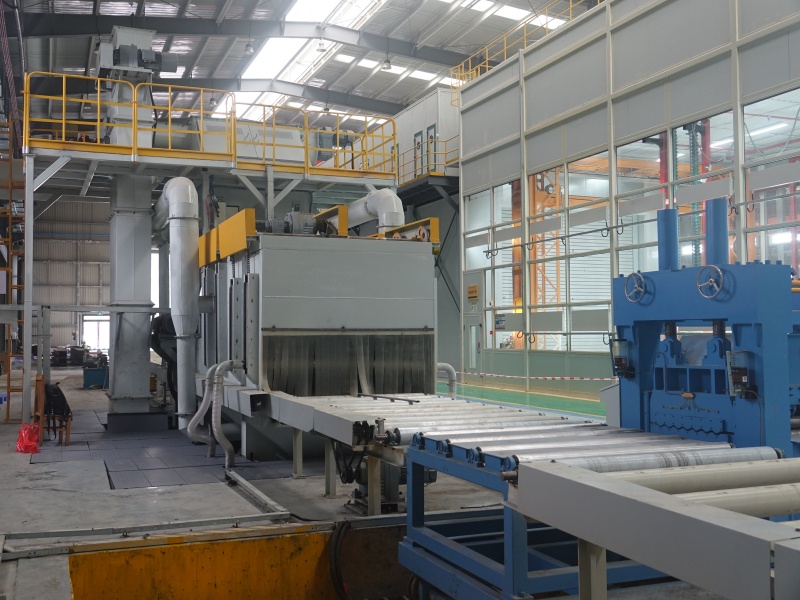

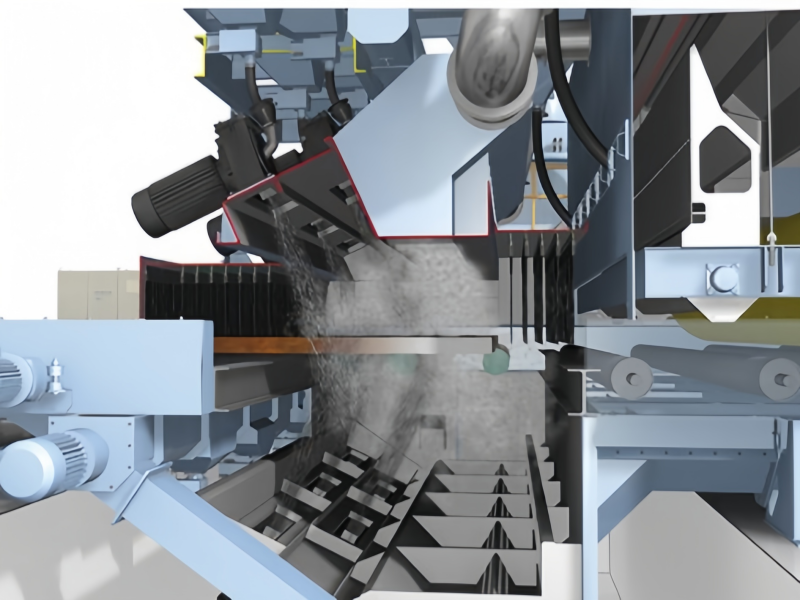

2.Shot Blasting Machine:

The steel coils enter the shot blasting chamber, where abrasive media (such as steel shot) is accelerated and projected onto the surface of the steel. This process removes rust, scale, and other contaminants

3.Dust Collector:

A dust collector is used to capture and remove dust and debris generated during the shot blasting process, maintaining a clean environment

4.Paint Spray Chamber:

After cleaning, the steel coils enter the paint spray chamber. Here, maintenance primer is applied to the surface of the steel coils using spray guns. This coating provides temporary protection against corrosion

5.Paint Mist Process System:

This system captures and processes paint mist generated during the spraying process, ensuring environmental compliance

6.Drying Chamber:

The drying chamber uses hot air circulation to dry the painted surface. The design of the chamber includes thermal insulation to maximize heat utilization and ensure efficient drying

7.Outlet Roller Conveyor:

The preserved steel coils are then transported out of the drying chamber via the outlet roller conveyor, ready for further processing or storage


Applications

Optional Components

1.Cross Transfer Conveyor (Loading/Unloading System):

These systems facilitate the loading and unloading of steel coils, enhancing the automation and efficiency of the preservation line

2.Pre-heater:

A pre-heater may be used to bring the steel coils to an optimal temperature before the coating process, ensuring better adhesion of the primer

Key Features and Benefits

1.Surface Protection:

The preservation line effectively removes rust and contaminants, providing a clean surface for coating application

2.Corrosion Resistance:

The applied primer enhances the corrosion resistance of the steel coils, protecting them during storage and transportation

3.Efficiency and Automation:

The line is designed for high throughput and automation, reducing labor intensity and improving operational efficiency

4.Environmental Compliance:

The inclusion of dust collectors and paint mist processing systems ensures that the preservation process meets environmental standards

Applications

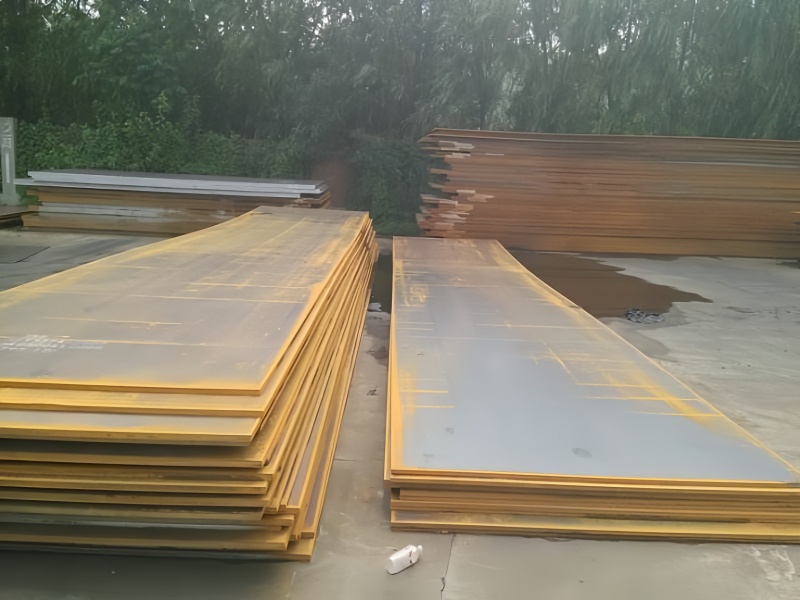

Steel Coil Preservation Lines are essential in industries where steel coils are stored or transported over long distances. They are commonly used in steel manufacturing, construction, and metal trading sectors to maintain the quality and integrity of steel products

In summary, a Steel Coil Preservation Line is a comprehensive system that combines surface cleaning, rust removal, and coating application to protect steel coils. Its integrated design and automated processes make it an efficient solution for maintaining the quality of steel products during storage and transportation.
