Metal Straightener Machine

1.Model No.: TL

2.Applications: Pressing Line/Metal Stamping Line

3.Applicable Coil Width: 20mm-1300mm

4.Applicable Coil Thickness: 0.4-2.2mm

5.Speed: 15m/min

6.Suitable for vary kind of coil material, such as Galvanized steel, Stainless steel, CR Steel, HR Steel, Galvanized steel, Stainless steel,Aluminum, Cooper etc.

technical consultation

Video

Brief Profile

Metal sheet straightener machine offers a rough and precision straightener that can process material width up to 1300mm, and can adjusted to handle stock thickness between 0.4-2.2mm, this is the optimum model for processing all kinds of precision components which require outstanding straightening performance.

Function:

1. The rectifying roller is made of solid bearing steel, which is grinded and plated with hard chromium after high frequency heat treatment.

2. The machine can be used independently, and it can be used together with MT and DBMT automatic feeder, with better effect;

3. The machine adopts large cylinder pressure material, and adopts synchronous worm wheel and worm for correction and adjustment.The handle is rotated once, and the upper wheel can be adjusted with only a drop of 1mm.

4. High rigidity mechanical structure, high horsepower output.High speed and stable feeding can be made to improve the production efficiency and prolong the service life of the equipment.

Application

Model No.: TL

Applications: Pressing Line/Metal Stamping Line

Applicable Coil Width: 20mm-1300mm

Applicable Coil Thickness: 0.4-2.2mm

Speed: 15m/min

Suitable for vary kind of coil material, such as Galvanized steel, Stainless steel, CR Steel, HR Steel, Galvanized steel, Stainless steel,Aluminum, Cooper etc.

Metal Straightener Machine(图1)

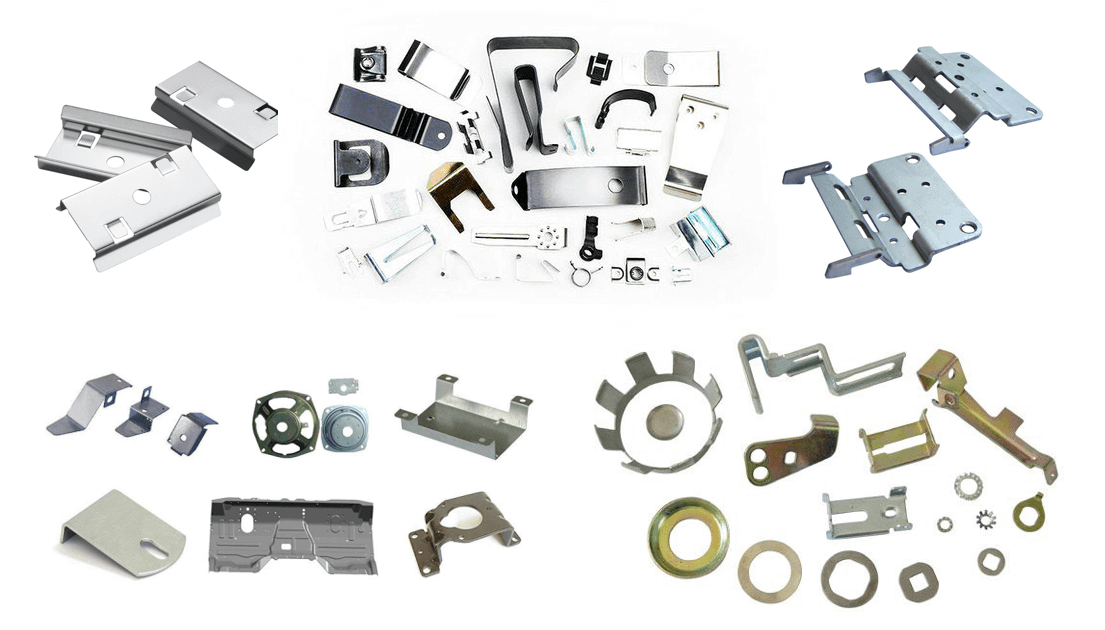

Metal sheet straightener machine is suitable for all kinds of metal sheet stamping, such as the hardware parts, home appliances, furniture hardware, motorcycle accessories, mobile phone accessories, computer accessories and so on.

Metal Straightener Machine(图1)

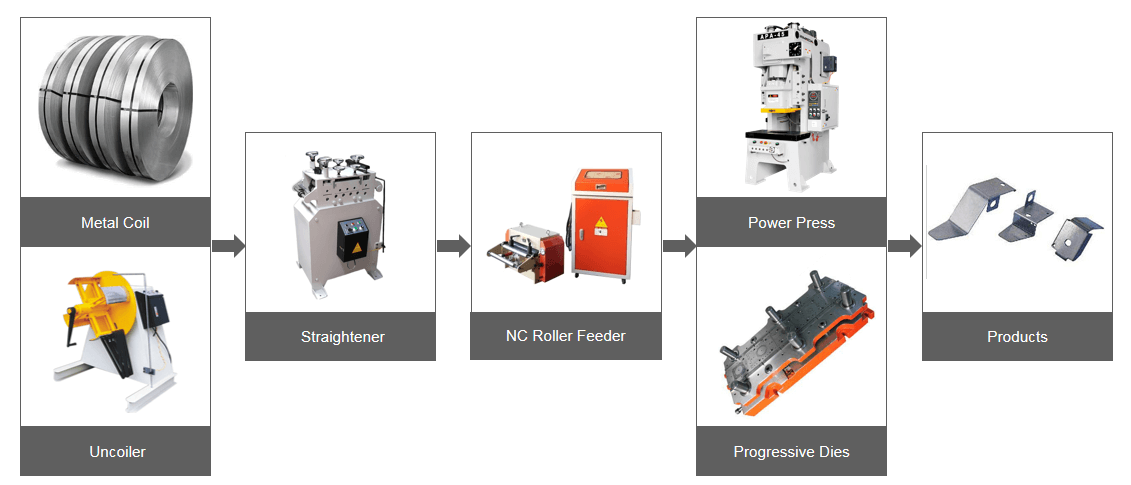

The configuration of metal sheet stamping line.

Step-1: Uncoiler machine, Loading coil and uncoilling coils

Step-2: Metal straightener machine, leveling the strips and lead it to feeder machine.

Step-3: Nc Servo Feeder machine, Feed coil to press machine.

Step-3: Power press machine with the moulds,pressing to the end product.

Metal Straightener Machine(图1)

Basic Parameter

Model	TL-200	TL-300	TL-400	TL-500	TL-600	TL-700	TL-800
Coil Width	200mm	300mm	400mm	500mm	600mm	700mm	800mm
Coil Thickness	0.4-2.2mm
Straightening Rolls	Ø50mm * 7pcs			Ø60mm * 7pcs
Pinch & Feed Rolls	Ø60mm * 2pcs/Ø80mm * 2pcs			Ø70mm * 2pcs/Ø98mm * 2pcs
Power	1 HP		2 HP		3 HP		5 HP
Speed	16m/min
