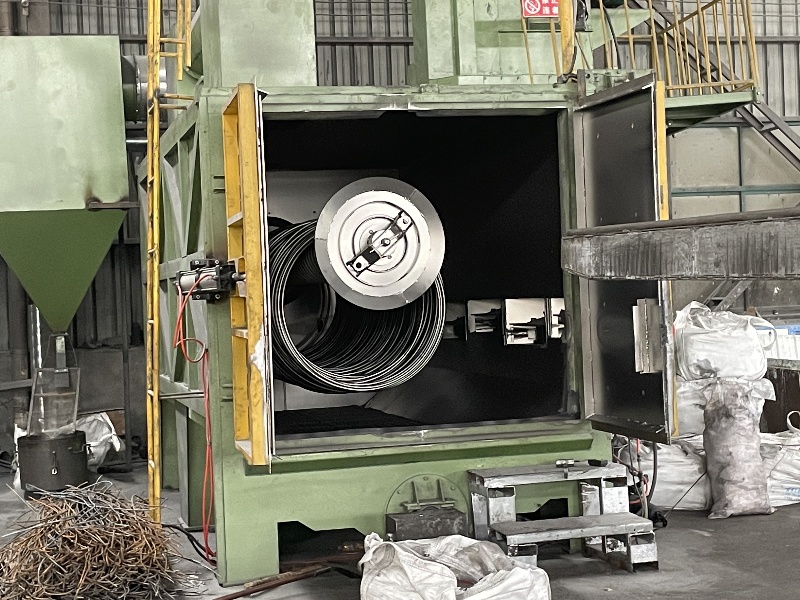

1.Model: MZ-5000D

2.Wire Transport Way : Single Fixed Shaft

3.Shafts Length:5000mm


technical consultation

Video

Introduction & Pictures

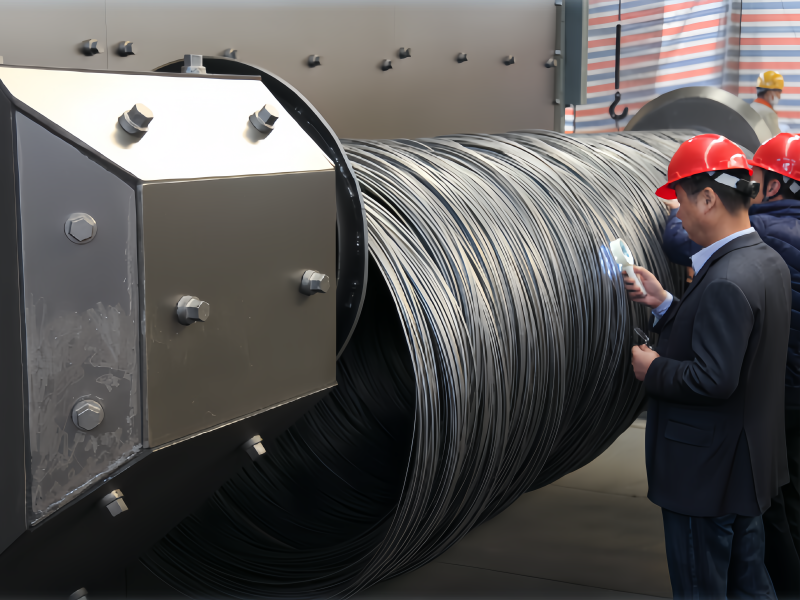

The Single Shaft Shot Blaster is a specialized industrial machine designed for surface treatment processes such as cleaning, descaling, and shot peening of metal components. It uses a single shaft with a centrifugal blast wheel to propel abrasive media (such as steel shots or grit) at high velocity onto the surface of the workpiece. This process removes rust, scale, and other contaminants while improving the surface finish and mechanical properties of the material.

Singel Shaft Shot Blaster(图1)


Before Shot Blasting VS After Shot Blasting

Singel Shaft Shot Blaster(图1)


Singel Shaft Shot Blaster(图1)


Applications & Features and Benefits

Applications

The Single Shaft Shot Blaster is widely used in various industries, including:

1.Automotive Industry: For cleaning and surface preparation of engine parts, transmission components, and other metal parts.

2.Construction Industry: For surface treatment of steel beams, pipes, and other structural components.

3.Foundry and Forging Industry: For removing sand, scale, and other casting residues from metal castings.

4.Shipbuilding Industry: For cleaning and preparing ship hulls and other large metal structures.

Features and Benefits

1.Efficient Surface Treatment: The high-velocity blast wheel ensures thorough cleaning and descaling of the workpiece surface.

2.Cost-Effective: The machine is designed to recycle the abrasive media, reducing waste and operational costs.

3.Versatility: Suitable for a wide range of metal components and surface treatment requirements.

4.Environmental Friendliness: Equipped with a dust collection system to minimize environmental impact.

5.Improved Mechanical Properties: Shot peening enhances the fatigue resistance and overall durability of metal components.



Singel Shaft Shot Blaster(图1)


Working Principle

Working Principle

The Single Shaft Shot Blaster operates by using a centrifugal blast wheel to propel abrasive media at high speed (typically 65-110 m/s) onto the surface of the workpiece. The abrasive media impact the surface, removing contaminants and creating a roughened texture that improves paint adhesion and other surface treatments. The machine also features a media recovery system that collects and recycles the abrasive for reuse, reducing waste.


Singel Shaft Shot Blaster(图1)

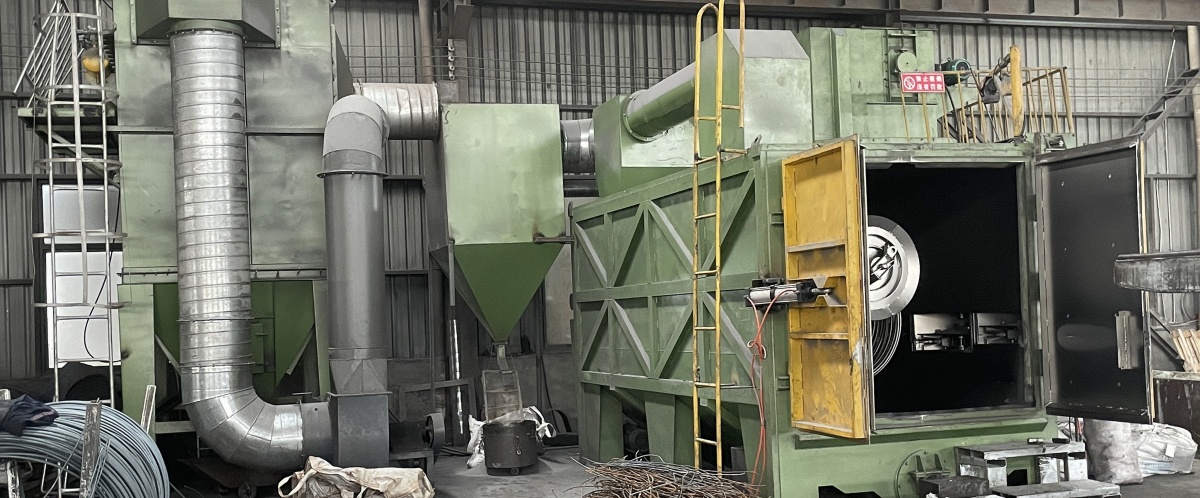

Structure and Components

1.Blast Chamber: Enclosed space where the shot blasting process takes place.

2.Centrifugal Blast Wheel: Single shaft with a high-speed wheel that propels the abrasive media.

3.Abrasive Recovery System: Collects and recycles the used abrasive media.

4.Dust Collection System: Captures dust and debris generated during the blasting process.

5.Conveyor System: Transports the workpiece through the blast chamber.

How to Choose a Single Shaft Shot Blaster

When selecting a Single Shaft Shot Blaster, consider the following factors:

1.Workpiece Size and Weight: Ensure the machine can handle the dimensions and weight of your components.

2.Abrasive Media Type: Choose the appropriate media (steel shots, grit, etc.) based on your surface treatment requirements.

3.Automation Level: Opt for a machine with the desired level of automation to reduce labor costs and increase efficiency.

4.Environmental Compliance: Select a machine equipped with an effective dust collection system to meet environmental regulations.

5.Cost: Evaluate both the initial investment and ongoing operational costs.

Conclusion

The Single Shaft Shot Blaster is a versatile and efficient machine for surface treatment processes in various industries. Its ability to clean, descale, and improve the mechanical properties of metal components makes it an essential tool for manufacturing and maintenance operations. By selecting the right machine based on your specific needs, you can achieve high-quality surface treatment while reducing operational costs and environmental impact.
