Wire Packing Machine

1.Model: MZDBJ3300

2.Packing Length:3300mm

technical consultation

Video

Introduction & Picture

A Wire Packing Machine is a specialized industrial equipment designed to efficiently package wire rods, wire coils, and similar products. These machines are essential for protecting wire products during transportation, storage, and handling, ensuring they arrive at their destination in excellent condition. Wire packing machines are widely used in industries such as wire and cable manufacturing, steel and aluminum production, and other sectors that require the packaging of long and narrow items.

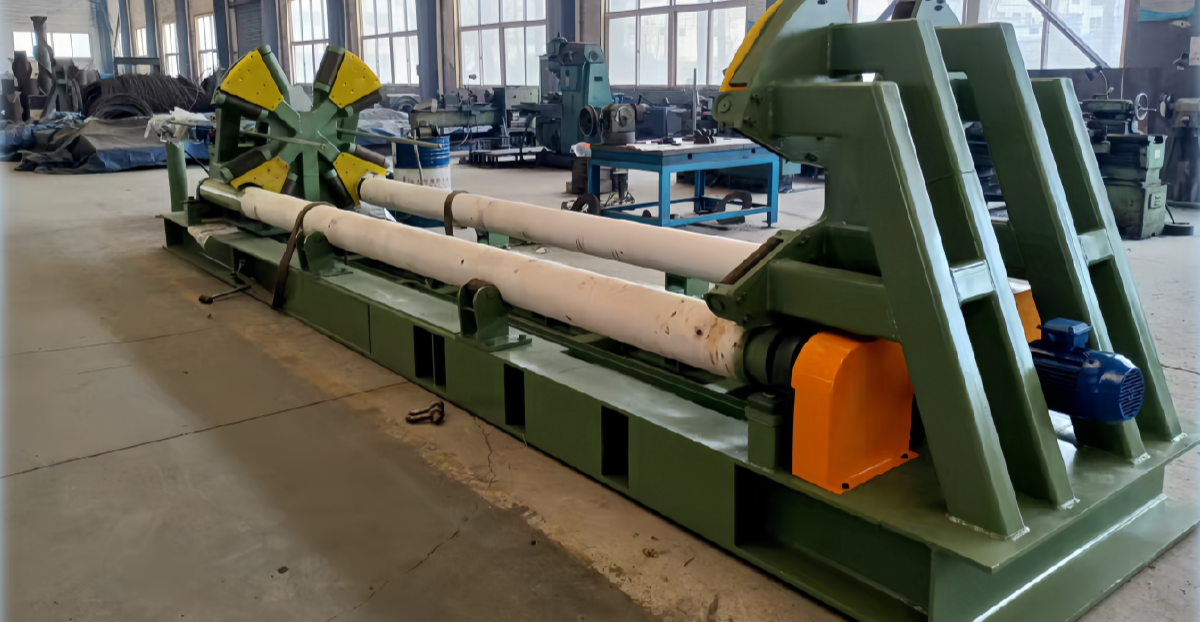

Wire Packing Machine(图1)

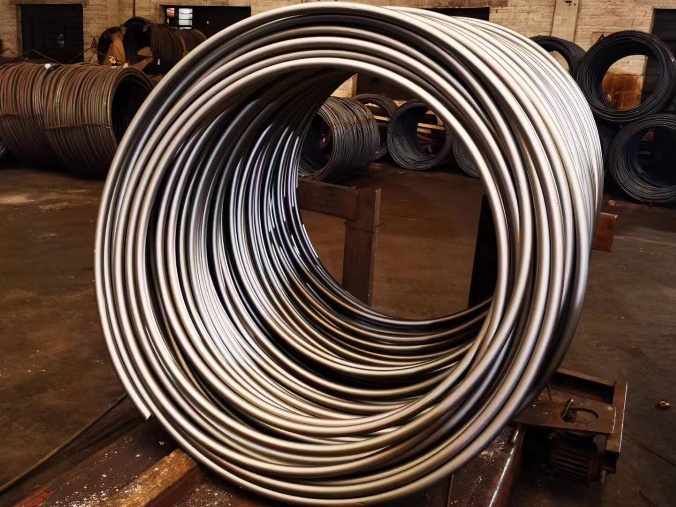

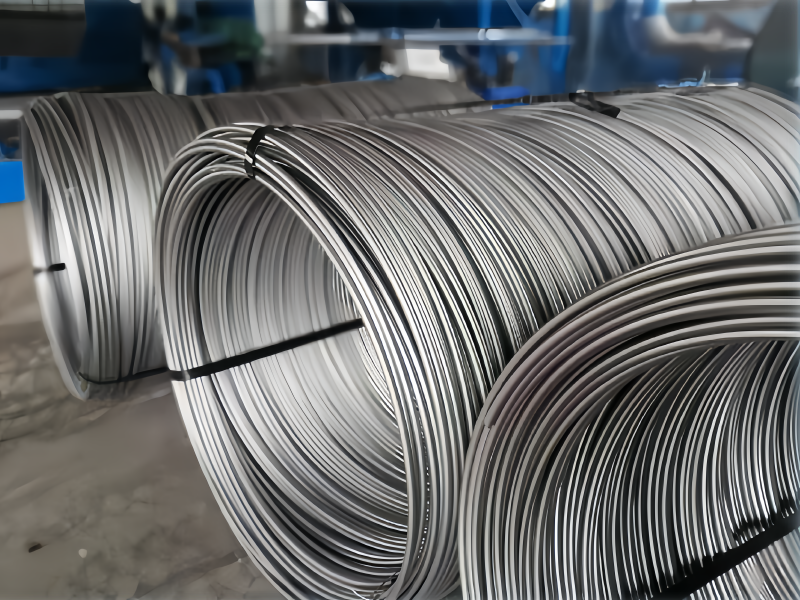

Before Packing VS After Packing

Wire Packing Machine(图1)

Types of Wire Packing Machines

Types of Wire Packing Machines

Wire packing machines come in various types and configurations to meet different industrial needs.

Some common types include:

1.Vertical Wire Coil Packing Machine:

Economical and reliable, designed to handle a wide range of coil sizes and materials.

Features an advanced PLC control system and user-friendly touchscreen interface for easy adjustments.

Suitable for small and lightweight wire coils.

2.Horizontal Wire Coil Packing Machine:

Features a "coil ID to sky" packing orientation to protect soft wire coils from deformation.

Equipped with 360° support rollers for stable rotation and uniform wrapping coverage.

Ideal for large and oversized wire coils.

Big Steel Wire Coil Packing Machine with Trolley:

Robust and efficient, designed for packaging large, heavy wire coils.

Integrated trolley system simplifies the movement of heavy coils in and out of the wrapping station.

Suitable for wire coils with a width ranging from 400 to 1000mm.

3.Online Wire Coil Wrapping Machine:

Designed for seamless integration into production lines, featuring a built-in conveyor system.

Automatically positions wire coils for accurate wrapping and ensures precise packing material counting and cutting.

Increases productivity and reduces labor costs.

4.Automatic Wire Drawing & Packing Line:

Integrates wire rewinding, strapping, wrapping, and stacking into a seamless process.

Utilizes advanced automation techniques and ERP system integration for improved inventory management and data tracking.

5.Automatic Wire Compacting & Packing Line:

Combines automatic compacting, strapping, spool removal, and coil packing.

Reduces manual labor and forklift handling requirements, enhancing efficiency and safety.

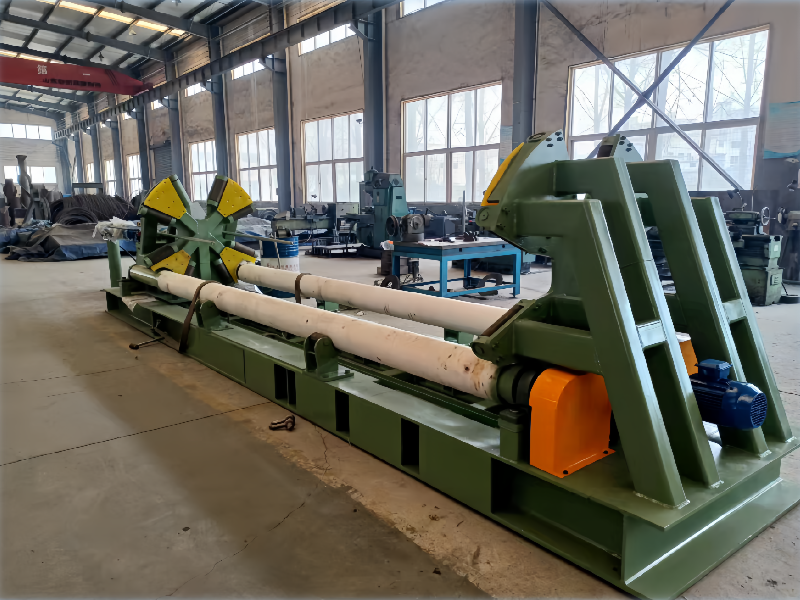

Wire Packing Machine(图1)

Features and Benefits

Features and Benefits

1.Automation: Reduces manual labor and increases packaging efficiency.

2.Customization: Machines can be tailored to accommodate different coil sizes, packaging materials, and additional features.

3.Safety: Minimizes risks associated with manual handling of heavy wire coils.

4.Durability: Built with heavy-duty components to ensure long-term performance.

5.Environmental Friendliness: Some models feature dust collection systems to minimize environmental impact.

6.Cost-Effectiveness: Reduces labor and material costs while improving overall productivity.

Technical Specifications (Example: MZ-AU300)

1. Object Weight: 300-1500 kg.

2. Package Width: 100-300 mm.

3. Package OD: 500-1200 mm.

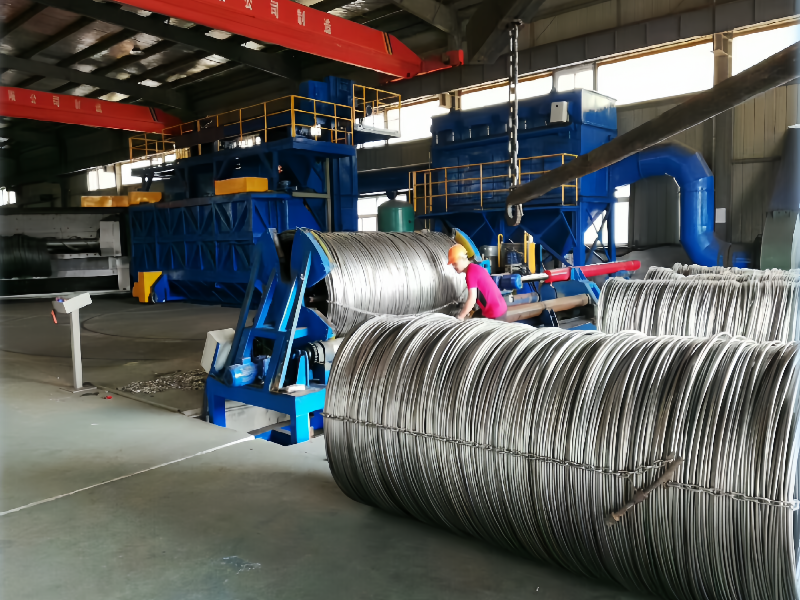

Wire Packing Machine(图1)

4. Package ID: 300-900 mm.

5. Roller Speed: 2-4 m/min.

6. Rotating Speed: 0-90 r/min.

7. Overlap Scope: 10%-90%.

8. Power Output: Approx. 3.8 kW.

9. Power Voltage: 380V/50Hz 3-phase.

10. Packing Material: Stretch film/Paper.

Working Process

1.Loading: Wire coils are placed on the in-feeding conveyor.

2.Wrapping: The ring-type coil wrapper rotates around the wire coil, applying protective film or other packaging materials evenly.

3.Unloading: The out-feeding conveyor transports the packaged coil away for further handling or storage.

How to Choose

When selecting a wire packing machine, consider the following factors:

1.Material and Size of Wire Coils: Ensure the machine can handle the specific dimensions and weight of your wire coils.

2.Automation Level: Opt for a machine with high automation to reduce labor costs and increase efficiency.

3.Customization Options: Choose a machine that can be tailored to meet specific requirements, such as different packaging materials or additional safety features.

4.Environmental Impact: Select a machine with efficient dust collection and recycling systems to minimize environmental impact.

5.Cost: Evaluate both the initial investment and ongoing operational costs.

Conclusion

Wire packing machines are essential for industries that rely on wire coils for their production processes. They offer significant advantages in terms of efficiency, safety, and cost-effectiveness. By choosing the right machine for your specific needs, you can optimize your packaging process and ensure the safe transportation and handling of your wire products.
