Shot blasting cleaning line solution for parts of bullet train brake system

EMU brake system introduction

The main contents of the EMU brake system include the basic concept of braking, brake classification, EMU brake system control device, EMU taxi control device, EMU electric brake, EMU friction brake and device, and domestic EMU. (CRH2 and CRH5 EMU) The composition, working principle and characteristics of the brake system, also briefly introduced the EMU brake system test and common fault handling and new brake technology. Since the sixth major speed increase of China's railways on April 18, 2007, and the first time the 200 km speed trains in China, the CRH series EMUs, collectively known as the “Harmony”, have become the symbol of China's railways entering the high-speed railway club. . During the "Eleventh Five-Year Plan" period, China will build a new railway line of 17,000 km with a total investment of 2 trillion yuan. According to the newly adjusted national medium- and long-term railway network plan, by 2020, the national railway operation mileage will reach 120,000 km, and the “four vertical and four horizontal” railway express passenger transportation channels and the intercity passenger transportation system with economically developed and densely populated areas will be built. This will provide a further stage for the CRH series of EMUs.

Mayflay Solutions

1.Mayflay can provide surface cleaning and spray production lines for EMU brake system.

Free Technical Consultation

Continuous shot blasting line solution for EMU brake system----From Mayflay professional team

One、Shot blasting solutions from Mayflay

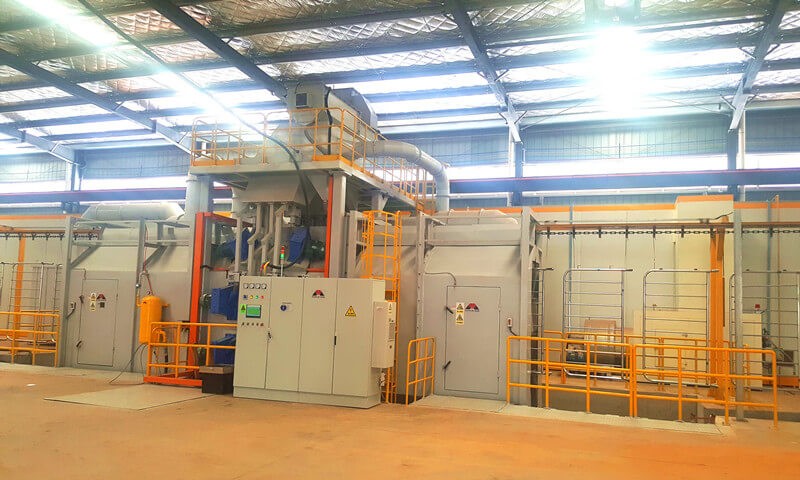

Catenary pass type shot blasting machine

1. Model: MCT-1027P11-16 (Select model according to product size).

2. Applicable maximum part size: length: 2800mm, width: 400mm, height: 1000mm

3. Applicable maximum part weight: 2T.

4. Blast wheel QTY：16 PCS.

5. Blast wheel power：11Kw/pcs.

6. Blast wheel motor：ABB.

7. Semi-automatic flow control valve: 16 sets.

8.Operation mode: fully automatic.

9.Shot blasting room entrance size: width: 1000mm, height: 2800mm.

10. Delivery method: The chain automatically transmits.

11.PLC:Siemens.

12.Touch screen: Siemens.

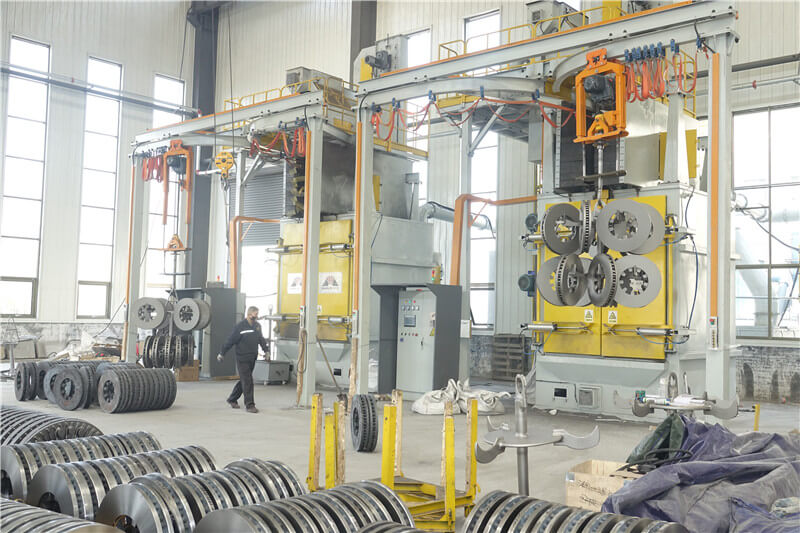

Hanger type shot blasting machine

1. Model：MHB2-1717Q15-3 (Select model according to product size).

2. Applicable maximum part size Dia：1700mm，Height：1700mm。

3. Applicable maximum part weight: 2T.

4. Blast wheel QTY：3 pcs.

5. Blast wheel power：15Kw/pcs.

6. Blast wheel motor：ABB.

7. Semi-automatic flow control valve：3 sets.

8.Operation mode: fully automatic.

9.Delivery method: Double track with double racks.

10. Automatic double door opening.

11.PLC:Siemens.

12.Touch screen: Siemens.

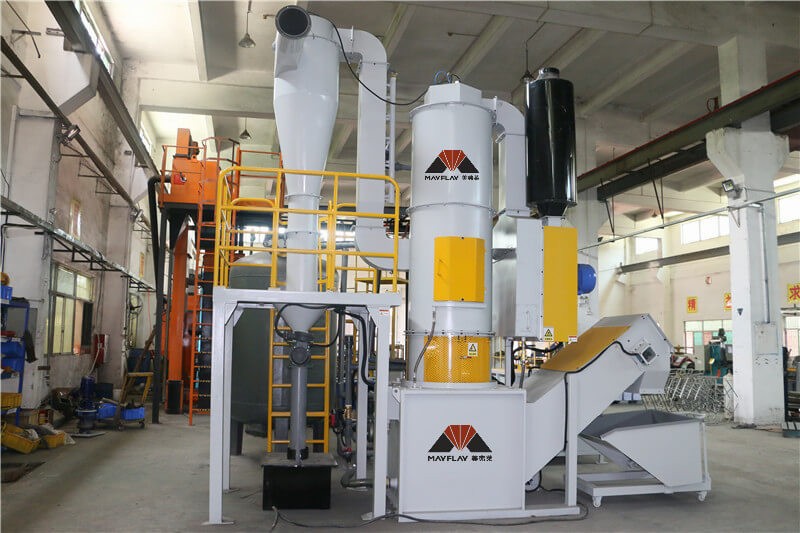

Wet dust collector

1. Model：MWDC-100(Explosion-proof).

2. Equipped with above mentioned shot blasting machine

3. Dust fan power：22Kw.

4. Air volum：≤9000m3/h.

5. Air pressure≤7000Pa/h.

6. Noise≤80db.

7. Tuyere diameter：φ320mm.

8. Dust emission：30mg/m3.

9.Scraper motor：0.37Kw.

10. Pump motor：7.5Kw.

11.PLC:Siemens.

12.Touch screen: Siemens.

Two、What products can Mayflay offer?

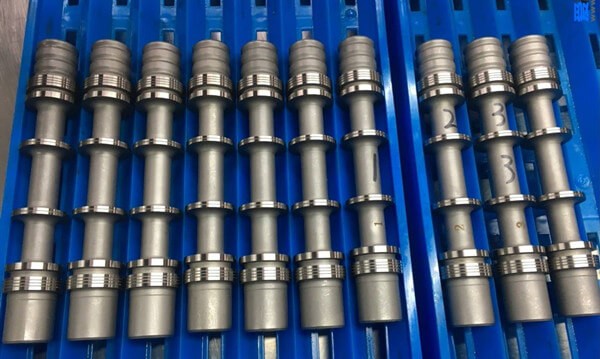

Motor brake components 1
