  • What is High Speed Fly Shear Machine Line?

    What is High Speed Fly Shear Machine Line?

    What is High Speed Fly Shear Machine Line?(图1)

    A High Speed Fly Shear Machine Line is an advanced industrial equipment used primarily in the metal processing industry for cutting metal coils into specific lengths with high precision and speed. Here's an overview of its key features and functions:

    1.Operation Principle: The line operates by unwinding metal coils, leveling them, and then cutting them to length using a high-speed rotary shear. This process is continuous and does not require the material to stop during cutting, which increases efficiency.

    2.Applications: It is used for processing various materials such as aluminum plates, cold-rolled plates, electrolytic galvanized plates, hot dip galvanized plates, color-coated plates, stainless steel plates, and copper plates.

    3.Components: The line typically consists of an entry coil car, uncoiler, precision leveler, film applicator, measure length roller, rotary shear machine, belt conveyor, and stacker.

    4.Technical Parameters: Different models of high-speed fly shear lines can handle different material thicknesses, widths, and have specific finished lengths. They also have specified accuracy levels for length, diagonal accuracy, leveling accuracy, and line speed. For example, some models can handle material thicknesses from 0.1-1.0mm and have a line speed of up to 90 m/min.

    5.Advantages:

    (1).High Precision: The cutting length accuracy can be within ±0.3 mm, ensuring that the cut pieces meet strict dimensional requirements.

    (2).High Speed: Some advanced models can operate at speeds up to 100 m/min, significantly increasing production output.

    (3).Versatility: Capable of processing a variety of metal materials, including those with high strength and color galvanized steel coils.

    (4).Environmental and Energy-Efficient: As they are designed to be more efficient, they can also contribute to energy savings and reduced environmental impact

    6.Customization: The lines can be customized to meet specific production needs, such as different material thicknesses, widths, and coil weights.

    7.Control Systems: PLC (Programmable Logic Controller) systems are commonly used for controlling the operation of the line, allowing for automated and precise control over the cutting process.

    8.Cutting Capacity: High Speed Fly Shear Machine Lines are capable of cutting a wide range of materials with different thicknesses and widths, making them versatile for various industrial applications.

    In summary, a High Speed Fly Shear Machine Line is a critical piece of equipment in metal processing that offers high-speed, precision cutting of metal coils into specific lengths, enhancing production efficiency and output quality.


  • What is slitting line ?

    What is slitting line ?

    What is slitting line ?(图1)

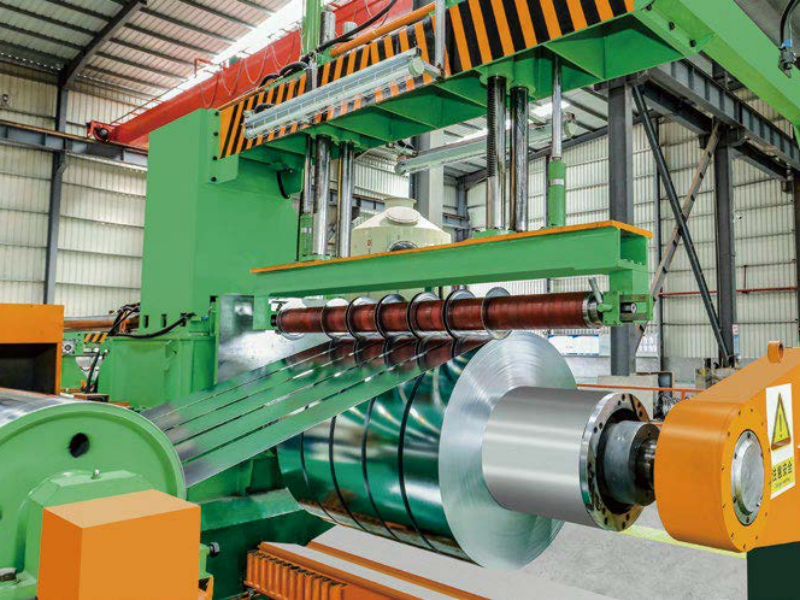

    Slitting line is a type of industrial equipment used in metalworking and manufacturing processes. It is designed to cut wide coils of metal into narrower strips of specific widths. The process is typically used for materials like steel, aluminum, copper, and other metals with similar properties.

    In a slitting line, the metal coil is unwound and fed through a series of rollers and blades that cut the coil into strips of desired widths. These strips are then rewound onto individual spools or recoiled into smaller coils for further processing or distribution.

    Slitting lines are commonly used in industries such as automotive, construction, packaging, and appliances where precise and efficient cutting of metal coils is required to meet specific size and quality requirements. These lines can vary in complexity and capacity depending on the thickness and width of the material being processed.


  • How to Choose the Right Shot Blasting Machine for Your Business?

    (图1)

    How to Choose the Right Shot Blasting Machine for Your Business

    1.Introduction

    Shot blasting machines are essential tools in various industries, used for cleaning, strengthening, and polishing surfaces by propelling abrasive materials at high velocities. Selecting the right shot blasting machine is crucial for ensuring efficiency, quality, and cost-effectiveness in your operations. However, with numerous options available, businesses often face challenges in making the right choice. This article will guide you through the key factors to consider and provide tips to help you select the perfect shot blasting machine for your needs.

    2.Factors to Consider

    1Material Type

    Different materials, such as metal, concrete, or composites, require specific types of shot blasting machines. For instance, metal surfaces may need more aggressive abrasives, while concrete surfaces might require gentler treatment to avoid damage. Understanding the material you work with is the first step in choosing the appropriate machine.

    2Machine Size

    The size of the shot blasting machine should align with your production needs. Larger machines are suitable for high-volume operations, while smaller machines are ideal for limited spaces or lower production demands. Consider your workspace and production capacity when selecting the size.

    3Automation Level

    Shot blasting machines come in manual, semi-automatic, and fully automatic models. Manual machines require more operator involvement, while fully automatic machines offer higher efficiency and consistency. Evaluate your production requirements and labor availability to determine the best automation level for your business.

    4Budget

    While the initial cost of the machine is important, it's equally crucial to consider the long-term investment return. Higher-priced machines may offer better durability, efficiency, and lower maintenance costs, leading to greater savings over time. Balance your budget with the expected performance and lifespan of the machine.

    5After-Sales Support

    Reliable after-sales support is vital for maintaining the machine's performance and minimizing downtime. Ensure the supplier offers comprehensive services, including maintenance, spare parts availability, and technical assistance.

    3.Tips for Making the Right Choice

    Evaluating Supplier Reputation

    Research potential suppliers to assess their credibility and track record. Look for reviews, testimonials, and case studies to gauge their reliability and the quality of their machines.

    4.Visiting Factories or Checking Customer Reviews

    If possible, visit the supplier's factory to inspect the manufacturing process and the quality of the machines. Alternatively, check customer reviews and feedback to understand the experiences of other businesses.

    5.Conclusion

    Choosing the right shot blasting machine involves careful consideration of material type, machine size, automation level, budget, and after-sales support. By evaluating suppliers and gathering insights from customer reviews, you can make an informed decision that aligns with your business needs. For more information or to request a quote, contact our company today and let us help you find the perfect shot blasting solution for your operations.


  • What fields are shot blasting machines applied to?

    What fields are shot blasting machines applied to?(图1)


    What fields are shot blasting machines applied to?

    The application range of shot blasting machines is very broad. They are not only used for cleaning in fields such as casting, forging, and heat treatment surfaces; but also for strengthening in areas like ships, aerospace, railway transportation, bridge industry, springs, thermal power generation, offshore oil drilling, automotive, etc.; they are also used for rust removal before industrial equipment painting, industrial dust removal, and other fields.

    If we break it down by product, it can be applied to the following product areas: aircraft components, compressor shafts, axles, gears, brake parts, pulleys, camshafts, chain pins, chain links, clutches, springs, circular springs, compressor blades, connecting rods, machine shafts, gear components, gears, springs, milling cutters, drill bits, cutting tools, piston rods, push rods, wheels, chisels, stabilizers, suspension springs, synchronizer springs, tension springs, tool springs, torsion springs, turbine wheels and blades, valve springs, hubs, steering wheels.

    Applicable materials include: hard metals, cast steel, aluminum, magnesium, bronze, ductile iron, etc.


  • What types of shot blasting machines are there? What industries do they apply to?

    What types of shot blasting machines are there? What industries do they apply to?

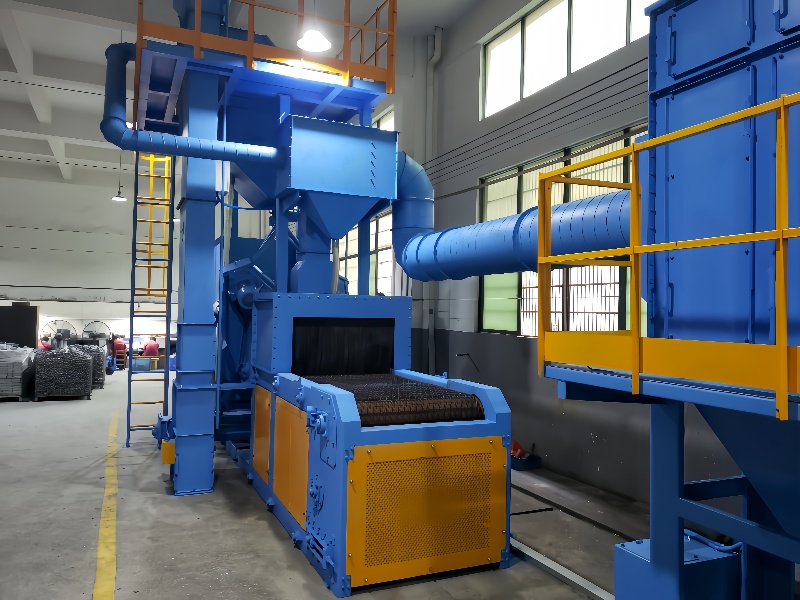

    1.Belt Type Shot Blasting Machine: Suitable for surface treatment of small castings, forgings, stampings, gears, bearings, springs, etc., including descaling, rust removal, and surface strengthening. Ideal for parts that are not easily damaged by impact.

    (图1)

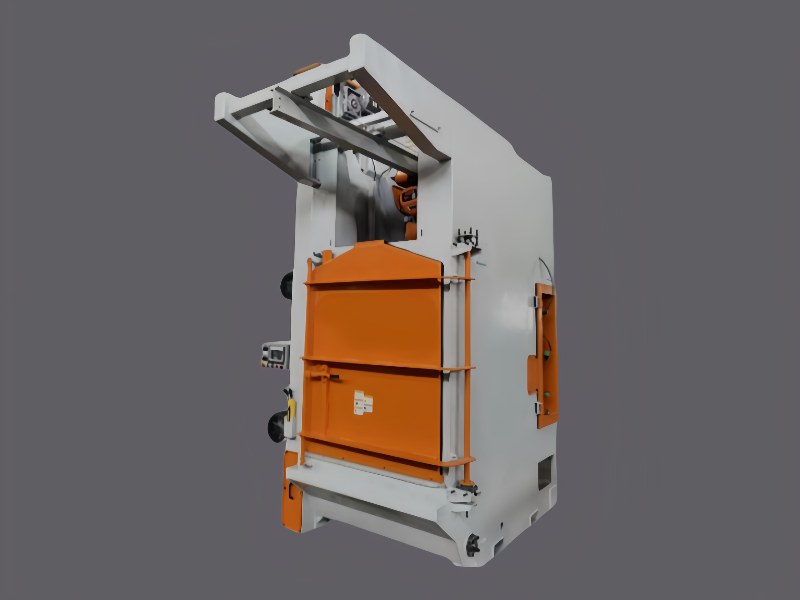

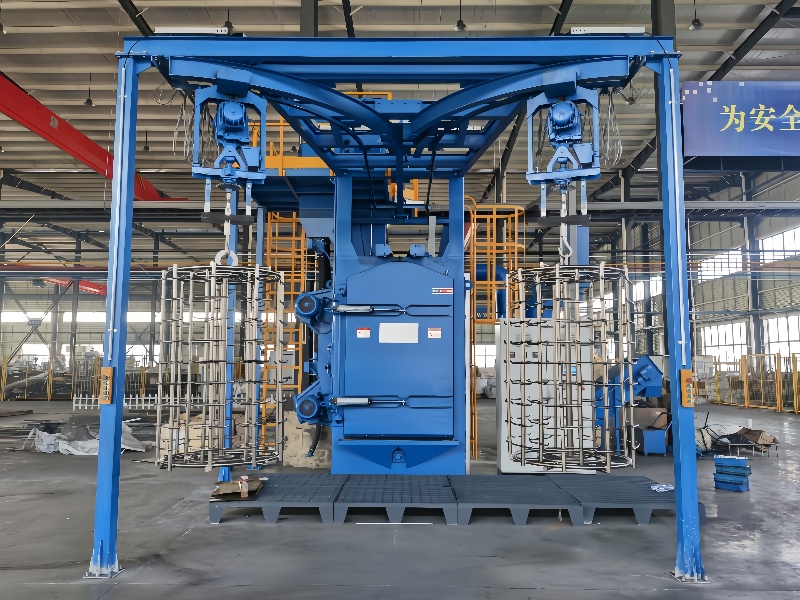

    2.Hook Type Shot Blasting Machine: Typically used for medium to large castings, forgings, weldments, heat-treated parts, etc., including fragile and irregularly shaped workpieces.

    (图2)

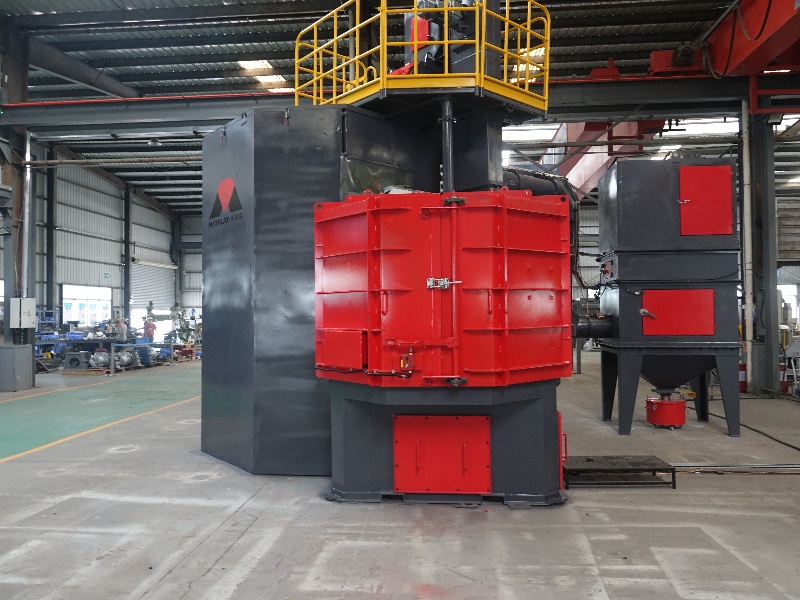

    3.Rotary Table Type Shot Blasting Machine: Suitable for batch production of surface cleaning of small workpieces, widely used in foundries and automotive manufacturing.

    (图3)

    4.Trolley Type Shot Blasting Machine: Used for carrying large workpieces to the blasting room for shot blasting cleaning, mainly for various large castings, forgings, structural parts.

    5.Pipe Internal and External Surface Shot Blasting Machine: Uses shot blasting technology to clean the inner cavity of pipes, suitable for shot blasting cleaning of the inner and outer walls of steel pipes.

    (图4)

    6.Road Surface Shot Blasting Machine: Utilizes centrifugal force and wind speed to accelerate shot media to the surface of the road.

    7.Suspension Chain Type Shot Blasting Machine: Generally used for surface blasting of small cast iron parts, cast steel parts, forgings, and stampings, especially suitable for forgings and castings.

    (图5)

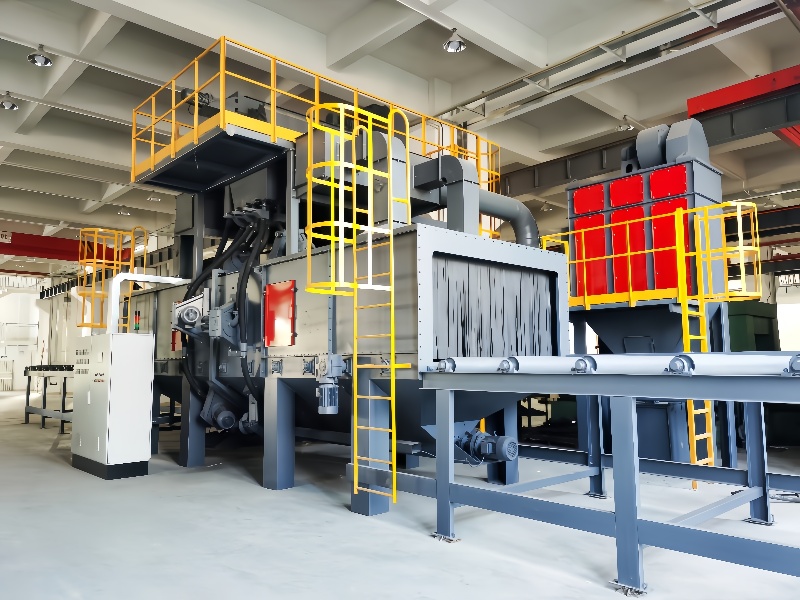

    8.Roller Pass Through Type Shot Blasting Machine: Widely applied, suitable for surface blasting of steel plates, profiles, steel pipes, metal structural weldments, steel products, railway vehicles, construction machinery, bridges, etc.

    (图6)

    9.Steel Bottle Special Shot Blasting Machine: A special equipment for shot blasting cleaning of the inner and outer walls of steel bottles, such as carbon dioxide cylinders, oxygen cylinders, etc.

    10.Anchor Chain Special Shot Blasting Machine: Can perform one-time pass-through cleaning for type 2 to φ150 anchor chains.

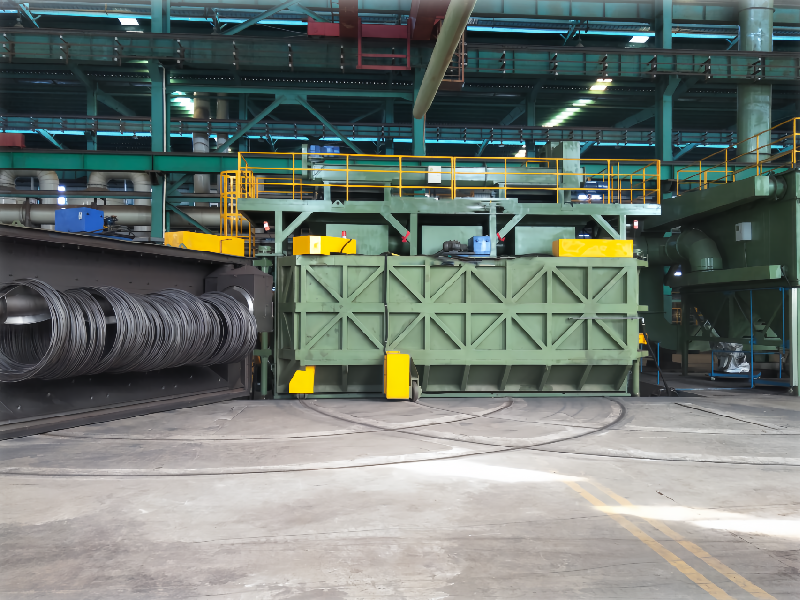

    11.Wire Rod Special Shot Blasting Machine: Mainly used for surface strengthening of small round steel and wire rods.

    (图7)


    12.Wire Mesh Shot Blasting Machine: Can be used for surface shot blasting of thin-wall castings, thin-wall and fragile iron or aluminum alloy castings, ceramics, and other small parts.

    (图8)


    13.Tumble belt Pass Type Shot Blasting Machine with Trolley: Mainly used for surface cleaning of small aluminum parts, copper castings, galvanized parts, etc.

    14.Steel Plate/Profile Pre-treatment Line: The pre-treatment line process refers to the processing of steel before further processing, which includes surface shot blasting for rust removal and the application of a protective primer coating.

    (图9)

    These types of shot blasting machines play a significant role in their respective application fields, such as shipbuilding, maintenance, steel structure and bridge construction, casting, forging, machining, etc. They improve product quality and extend service life, holding great significance for modern industrial production.


  • How does shot blasting affect the lifespan of automotive parts?

    Hanger Shot Blasting Machine (1).jpg

    How does shot blasting affect the lifespan of automotive parts?

    Shot blasting has a significant impact on the lifespan of automotive parts by enhancing their durability and performance through several mechanisms:

    1.Improvement of Fatigue Strength: Shot blasting, particularly in the form of shot peening, can increase the fatigue strength of automotive components such as gears, springs, and crankshafts.The process induces compressive residual stresses on the surface of the metal parts, which counteract the tensile stresses experienced during operation, thereby reducing the likelihood of fatigue crack initiation and extending the service life of the components.

    2.Corrosion Resistance: Shot blasting improves the corrosion properties of automotive steel sheets, especially after electrodeposition. By removing slag and fume, which can cause painting defects, shot blasting enhances the corrosion resistance of arc welds, contributing to the overall lifespan of the parts.

    3.Surface Roughness and Adhesion: Shot blasting can affect the surface roughness of materials, which in turn influences the fatigue life. While increased surface roughness can potentially accelerate crack initiation due to stress concentration, controlled shot blasting can ensure optimal surface modification that balances roughness with fatigue resistance.

    4.Hardness and Microstructural Changes: Shot peening optimizes the microstructure of the deformation layer, leading to grain refinement, increased dislocation density, and microscopic distortion. These changes can cause phase transformations within the material, such as the conversion of retained austenite to martensite, which increases hardness and further enhances the fatigue life of components.

    5.Stress Relief: Shot blasting can also be used for stress relief, particularly in components that have undergone processes like welding, which can introduce residual stresses. By reducing these stresses, the risk of stress-corrosion cracking and fatigue is diminished, leading to a longer lifespan for the parts.

    6.Increased Service Life: Studies have shown that shot peening can lead to remarkable improvements in component lifespan, with some reports indicating an increase of up to 1,300% in service life.By reducing tensile stress levels on the surface, shot peening significantly diminishes the likelihood of equipment fatigue, potentially extending operational longevity by as much as 560%.

    In summary, shot blasting plays a crucial role in the automotive industry by improving the fatigue strength, corrosion resistance, and overall durability of components, which directly contributes to extending their lifespan and ensuring reliable performance over time.


  • How does shot blasting improve the fatigue strength of automotive components?

    (图1)


    How does shot blasting improve the fatigue strength of automotive components?

    Shot blasting significantly improves the fatigue strength of automotive components through several mechanisms:

    1.Compressive Residual Stress: The impact of abrasive media during shot blasting induces compressive stresses on the surface of metal parts. These compressive stresses counteract the tensile stresses that occur during operation, thereby improving the fatigue resistance and strength of the components.

    2.Mean Stress Effect: Shot blasting can improve the fatigue properties by altering the mean stress state of the material. The compressive residual stress can improve the fatigue properties by reducing the overall stress range experienced by the material during cyclic loading.

    3.Fatigue Crack Initiation and Propagation: Shot blasting increases the initiation life of fatigue cracks that occur on the surface and reduces the propagating speed of cracks that grow from the surface towards the interior of the material. This is particularly important for components where fatigue cracks initiate at or near the surface.

    4.Surface Roughness and Adhesion: The process creates a roughened surface that not only improves the adhesion of coatings but also can lead to a more uniform distribution of stress, which can delay the initiation of fatigue cracks.

    5.Material Property Enhancement: Shot blasting can lead to a slight hardening of the surface layer due to the plastic deformation induced by the impact of the abrasive media. This surface hardening can contribute to improved fatigue strength.

    6.Stress Relief: In some cases, shot blasting can be used to relieve residual stresses that may have been introduced during manufacturing processes like welding. By reducing these stresses, the component's resistance to fatigue crack initiation can be improved.

    7.Improved Corrosion Resistance: Enhanced corrosion resistance can indirectly improve fatigue strength by preventing the initiation and growth of cracks due to corrosion. Shot blasting removes slag and fume, which can cause painting defects and subsequent corrosion issues.

    These effects combined make shot blasting an essential process in the automotive industry for enhancing the performance and longevity of critical components.


  • Can you explain the benefits of using Rosler's patented turbine technology?



    Can you explain the benefits of using Roslers patented turbine technology?(图1)

    Can you explain the benefits of using Rosler's patented turbine technology?

    Rösler's patented turbine technology offers several benefits that enhance the performance and efficiency of shot blast machines. Here are some of the key advantages:

    Increased Durability and Operating Times: Rösler's turbines are known for their up to 16 times higher durability and operating times compared to conventional turbines.

    Higher Blasting Power: The technology can provide up to 77% higher blasting power, which significantly improves the efficiency of the shot blasting process.

    Cost Savings: Rösler's turbines can lead to up to 25% cost savings and up to 30% cost savings on abrasives and replacement parts.

    Energy Efficiency: The special design of the turbines allows for more energy-efficient abrasive projection, with up to 15% better energy efficiency compared to traditional methods.

    Maintenance-Friendly Design: The Gamma G turbine is considered the most maintenance-friendly turbine in the world, with a unique price-performance ratio. It allows for simple direction reversal of the turbine wheel and easy replacement of throwing blades via the turbine cover.

    Longer Service Life: High-performance turbines in the RUTTEN series can increase service life up to 16 times compared to regular turbines, thanks to carbide alloys and the ability to use throwing blades on both sides.

    Improved Blast Pattern and Cycle Times: The special curved "Y" design of the throwing blades allows for a highly fluid media flow, resulting in a more effective acceleration of the blast media with higher throwing speeds. This leads to up to 25% higher blast performance and allows for reduced cycle times while improving shot blast quality .

    Lower Maintenance Costs and Higher Equipment Uptimes: The "Y" blade design enables the use of both sides of the throwing blades, reducing maintenance costs and increasing equipment uptimes.

    Quick Amortization: The investment in Rösler's turbines is often amortized in two to three years due to reduced costs for energy, maintenance, and spare parts, as well as lower equipment downtimes and lower blast media consumption.

    These benefits contribute to improved operational efficiency, reduced costs, and enhanced productivity for businesses that utilize shot blast machines in their manufacturing processes.


  • What we do- Coil spring shot peening machine



    MIZHI offers specially-designed coil spring shot blasting machine for constant and continuous blasting of de-scaling, de-sanding, cleaning and pre-treatment for different types of spring with great processing capacity.

    It is a strengthening technique to enhance springs’ anti-pressure performance and fatigue strength. High-speed shots from the blasting wheel hit on the surface of springs to generate cyclic plasticity strained layer, leading to advantageous changes of microscopic structure of spring surface, and having high resistance to fatigue break and stress corrosion, which guarantees springs’ reliability and durability.

    It features in continuous processing, no crush among work pieces, great blasting capacity, high efficiency, guaranteed sealing system and compact design for easy loading and unloading.



    What We Do Series---Coil Spring Shot Peening Machie Project(图1)


    Our Advantages

    l  Integration & all-around blasting

    Ultimately compact design for easy operation and easy integration into complete manufacturing lines and the possibility of automated part loading and unloading make the MIZHI coil spring shot blasting machine a truly all-around shot blasting system, reaching the optimum efficiency and the lowest labor costs.

    l  Flexible & high operational efficiency

    MIZHI spring shot blasting machine is the best solution for all-around continuous blast cleaning of all kinds of spring. This high flexible machine guarantees a high operational efficiency for a wide range of shot blasting applications, especially for deburring, blast cleaning, surface roughening, de-scaling and de-rusting.

    l  Dedication & profession

    It is a strengthening technique to enhance springs’ anti-pressure performance and fatigue strength. High-speed shots from the blasting wheel hit on the surface of springs to generate cyclic plasticity strained layer, leading to advantageous changes of microscopic structure of spring surface, and having high resistance to fatigue break and stress corrosion, which guarantees springs’ reliability and durability.

    l  High-end blast wheel & accurate blasting

    Fully-CNC-machined blasting wheels provide accurate and effective blasting result for different work pieces with extremely long lifespan. And 37KW working power guarantees satisfactory and high-efficiency shot blasting result.

    l  Reliable quality & long lifespan

    Shot blasting chamber is completely engineered of manganese steel plates with thickness between 6 and 10 mm and welded in one piece, making the machines extremely tight and sturdy. For optimum wear protection, the area exposed to the blast stream is lined with replaceable protective manganese steel plates. These overlapping liners are not bolted on but hung with a special system.

    l  High-end blast wheel & accurate blasting

    Fully-CNC-machined blasting wheels provide accurate and effective blasting result for different





    work pieces with extremely long lifespan. And 37KW working power guarantees satisfactory and high-efficiency shot blasting result.

    l  Reliable quality & long lifespan

    Shot blasting chamber is completely engineered of manganese steel plates with thickness between 6 and 10 mm and welded in one piece, making the machines extremely tight and sturdy. For optimum wear protection, the area exposed to the blast stream is lined with replaceable protective manganese steel plates. These overlapping liners are not bolted on but hung with a special system.

    l  Programmable Logic Controller

    PLC control unit handles all process parameters of work pieces blasting without unnecessary repeat input, saving much time of parameter configuration, much working hours of operator.

    Smart communication with built-in 3D guiding technology UI and 7 Inch colorful touch screen for safe operation, easy maintenance.

    l  Environment protection

    Great importance is attached by MIZHI to environment protection: noise and dust emission. We adopt high-end methods to reduce noise to 85DB and dust emission concentration to less than 50mg/m3 (these results can be even better with higher standard of configurations).


    What We Do Series---Coil Spring Shot Peening Machie Project(图1)


    Range of application

    The MIZHI coil spring shot blasting machineis highly flexible systems that can be applied all kinds of spring in the fields of automotive, railway, vehicle etc.


    What We Do Series---Coil Spring Shot Peening Machie Project(图2)


  • What are the environmental concerns with shot blasting machines?

    What are the environmental concerns with shot blasting machines?(图1)

    What are the environmental concerns with shot blasting machines?

    Shot blasting machines, while essential for various industrial processes, do raise several environmental concerns that need to be addressed. Here are the key environmental concerns associated with shot blasting machines:

    1.Air Pollution: Shot blasting generates airborne particles, including dust and abrasive materials, which can contribute to air pollution. These particles may contain hazardous substances such as heavy metals or silica dust, posing risks to both human health and the environment.

    2.Noise Pollution: The operation of shot blasting equipment can produce significant noise levels, which can disturb nearby communities and wildlife.Prolonged exposure to high noise levels can lead to hearing loss and other health issues in humans and disrupt natural habitats.

    3.Energy Consumption: Shot blasting equipment often requires substantial energy inputs, particularly in terms of compressed air or electricity.High energy consumption contributes to carbon emissions and increases the overall environmental footprint of the process.

    4.Waste Generation: Shot blasting generates waste materials such as spent abrasives, debris, and removed coatings.Improper disposal of these wastes can lead to soil and water contamination, affecting ecosystems and potentially harming wildlife.

    To mitigate these environmental impacts, several sustainable practices and solutions can be adopted:

    (1)Use of Recyclable Abrasives: Consider using recyclable abrasives such as steel shot or grit, which can be reclaimed, cleaned, and reused multiple times, reducing the need for virgin abrasives and minimizing waste generation.

    (2)Dust Collection Systems: Install efficient dust collection systems to capture airborne particles generated during shot blasting operations. High-performance dust collectors can help improve air quality in the surrounding environment and protect workers' health.

    (3)Noise Reduction Measures: Implement noise reduction measures such as sound insulation, enclosure of equipment, and scheduling shot blasting activities during off-peak hours to minimize noise pollution and mitigate disturbances to nearby communities.

    (4)Energy-Efficient Equipment: Invest in energy-efficient shot blasting equipment that utilizes advanced technologies to optimize energy consumption. Choose equipment with variable speed drives, efficient motors, and automated controls to reduce energy usage and lower carbon emissions.

    (5)Proper Waste Management: Establish proper waste management practices to handle and dispose of shot blasting wastes safely. Implement recycling programs for spent abrasives and segregate hazardous materials for appropriate treatment and disposal to prevent environmental contamination.

    (6)Environmental Monitoring and Compliance: Conduct regular environmental monitoring to assess the impact of shot blasting operations on air quality, noise levels, and waste generation. Ensure compliance with relevant environmental regulations and standards to minimize negative impacts and maintain environmental sustainability.

    By adopting these practices, the environmental footprint of shot blasting operations can be minimized, contributing to a more sustainable industrial process.
